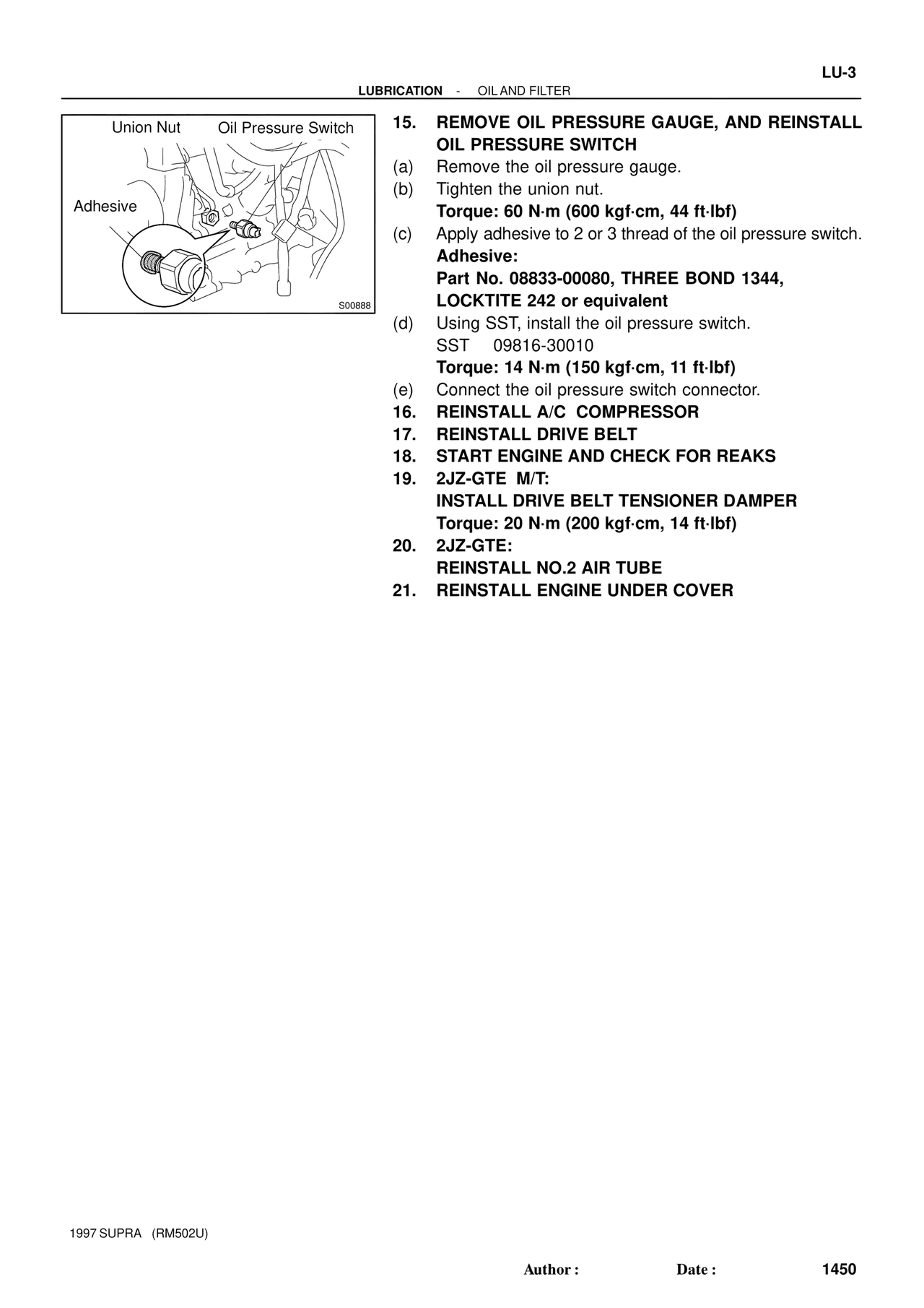

LU-3
LUBRICATION - OIL AND FILTER
Union Nut Oil Pressure Switch
Adhesive
S00888
15. REMOVE OIL PRESSURE GAUGE, AND REINSTALL
OIL PRESSURE SWITCH
(a) Remove the oil pressure gauge.
(b) Tighten the union nut.
Torque: 60 N·m (600 kgf·cm, 44 ft·lbf)
(c) Apply adhesive to 2 or 3 thread of the oil pressure switch.
Adhesive:
Part No. 08833-00080, THREE BOND 1344,
LOCKTITE 242 or equivalent
(d) Using SST, install the oil pressure switch.
SST 09816-30010
Torque: 14 N·m (150 kgf·cm, 11 ft·lbf)
(e) Connect the oil pressure switch connector.
16. REINSTALL A/C COMPRESSOR
17. REINSTALL DRIVE BELT
18. START ENGINE AND CHECK FOR REAKS
19. 2JZ-GTE M/T:
INSTALL DRIVE BELT TENSIONER DAMPER
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
20. 2JZ-GTE:
REINSTALL NO.2 AIR TUBE
21. REINSTALL ENGINE UNDER COVER
1997 SUPRA (RM502U)
