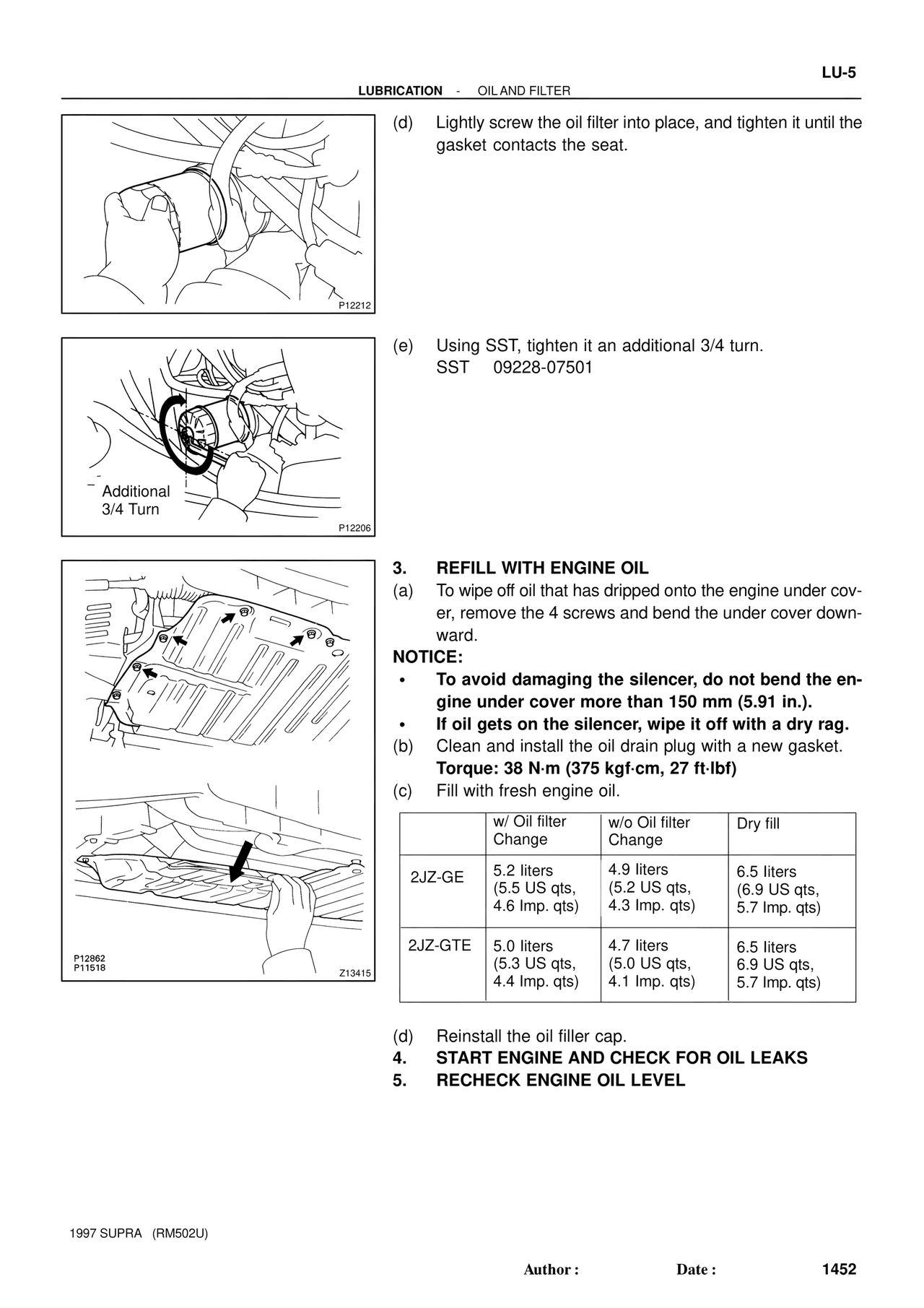

LU-5
LUBRICATION - OIL AND FILTER
P12212
(d) Lightly screw the oil filter into place, and tighten it until the gasket contacts the seat.
Additional
3/4 Turn
P12206
(e) Using SST, tighten it an additional 3/4 turn.
SST 09228-07501
P12862
P11518
Z13415
3. REFILL WITH ENGINE OIL
(a) To wipe off oil that has dripped onto the engine under cover, remove the 4 screws and bend the under cover downward.
NOTICE:
• To avoid damaging the silencer, do not bend the engine under cover more than 150 mm (5.91 in.).
• If oil gets on the silencer, wipe it off with a dry rag.
(b) Clean and install the oil drain plug with a new gasket.
Torque: 38 N·m (375 kgf·cm, 27 ft·lbf)
(c) Fill with fresh engine oil.
w/ Oil filter Change | w/o Oil filter Change | Dry fill
2JZ-GE | 5.2 liters (5.5 US qts, 4.6 Imp. qts) | 4.9 liters (5.2 US qts, 4.3 Imp. qts) | 6.5 liters (6.9 US qts, 5.7 Imp. qts)
2JZ-GTE | 5.0 liters (5.3 US qts, 4.4 Imp. qts) | 4.7 liters (5.0 US qts, 4.1 Imp. qts) | 6.5 liters 6.9 US qts, 5.7 Imp. qts)
(d) Reinstall the oil filler cap.
4. START ENGINE AND CHECK FOR OIL LEAKS
5. RECHECK ENGINE OIL LEVEL
1997 SUPRA (RM502U)
Author : Date : 1452
