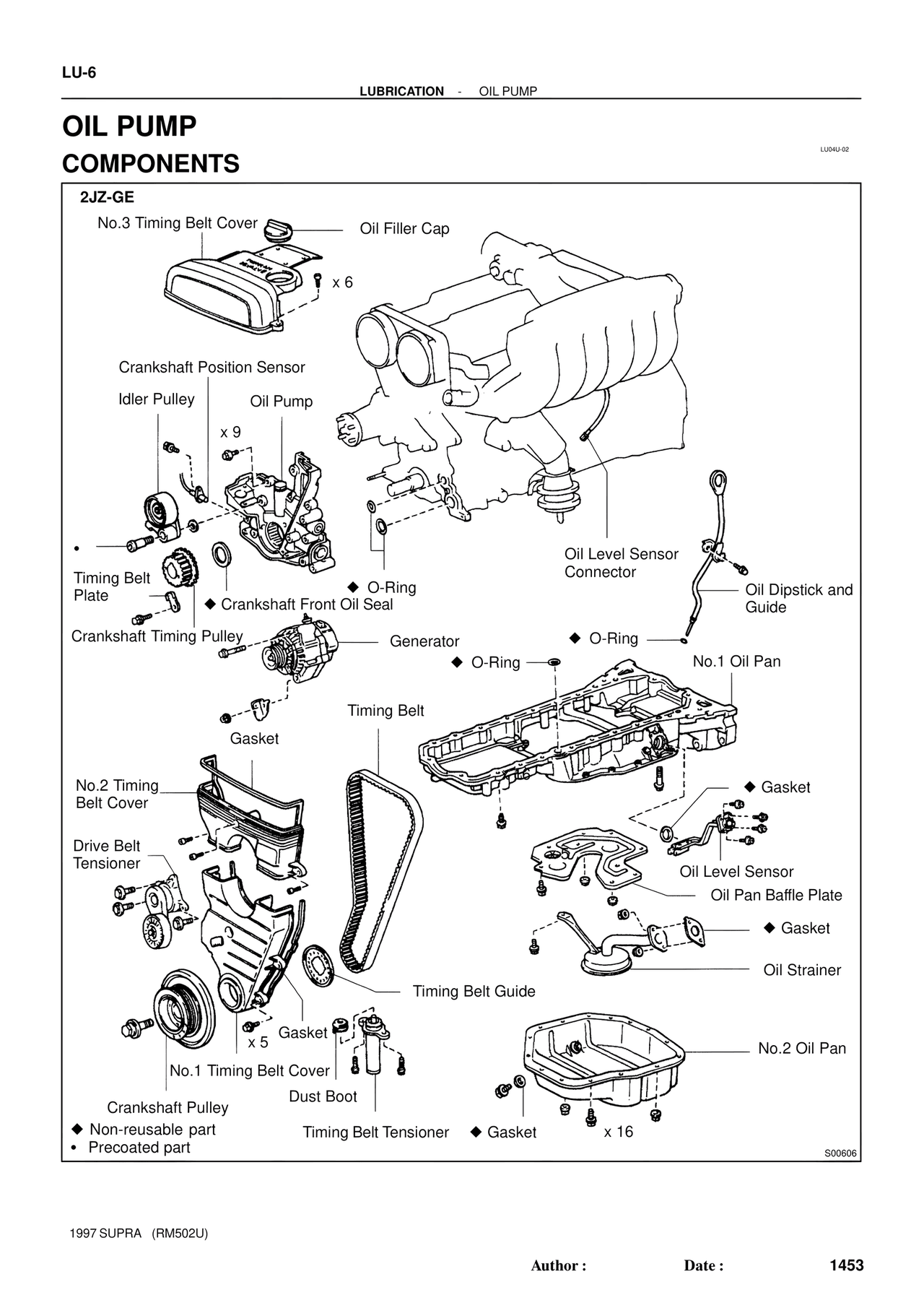

LU-6
LUBRICATION - OIL PUMP
OIL PUMP
COMPONENTS
LU04U-02
2JZ-GE
No.3 Timing Belt Cover
Oil Filler Cap
x 6
Crankshaft Position Sensor
Idler Pulley Oil Pump
x 9
Timing Belt
Plate
♦ O-Ring
♦ Crankshaft Front Oil Seal
Crankshaft Timing Pulley
Generator
Gasket
No.2 Timing
Belt Cover
Timing Belt
Drive Belt
Tensioner
Timing Belt Guide
x 5 Gasket
No.1 Timing Belt Cover
Crankshaft Pulley
Dust Boot
Timing Belt Tensioner ♦ Gasket
♦ Non-reusable part
• Precoated part
Oil Level Sensor
Connector
Oil Dipstick and
Guide
♦ O-Ring
♦ O-Ring
No.1 Oil Pan
♦ Gasket
Oil Level Sensor
Oil Pan Baffle Plate
♦ Gasket
Oil Strainer
No.2 Oil Pan
x 16
S00606
1997 SUPRA (RM502U)
