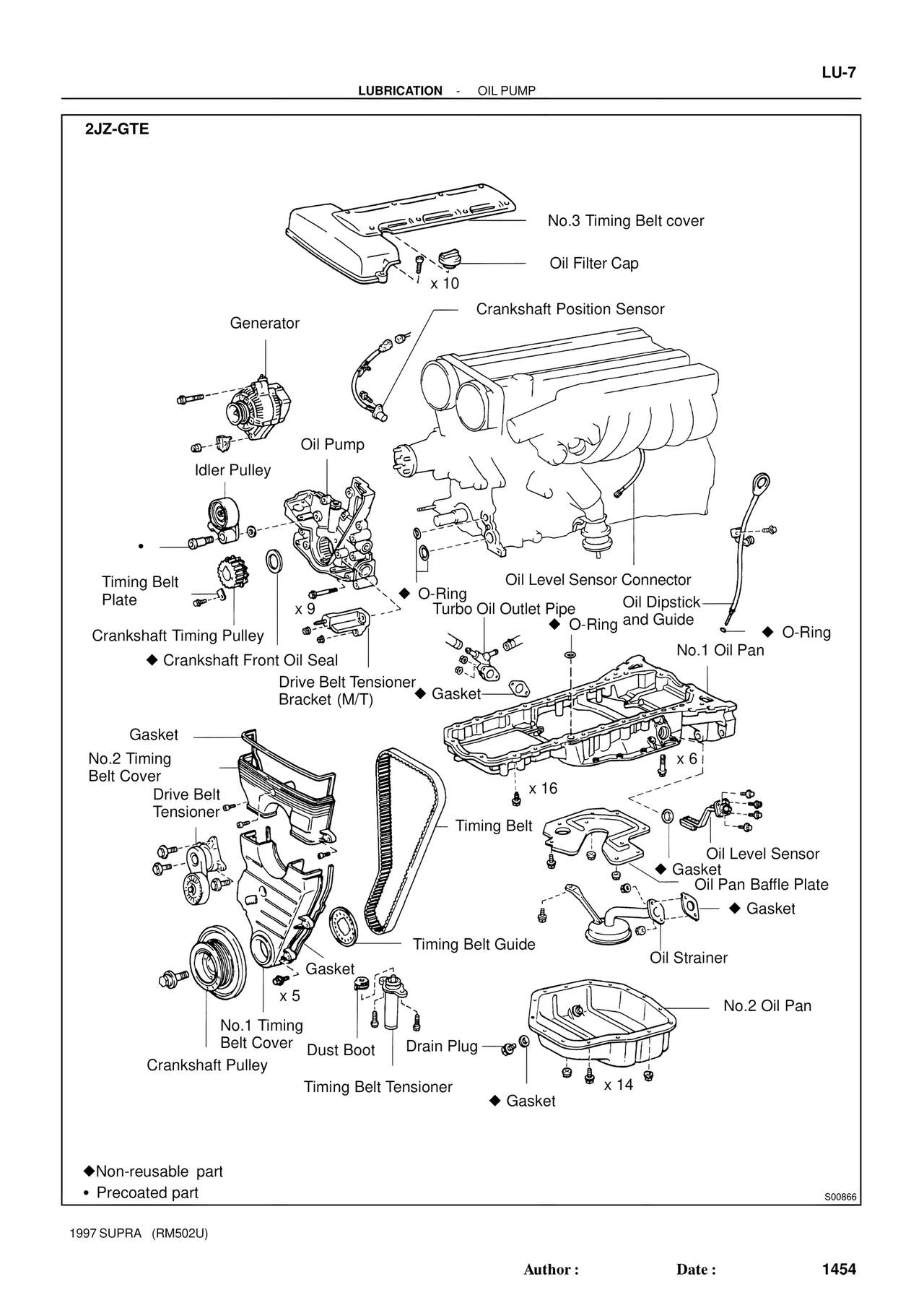

LU-7
LUBRICATION - OIL PUMP
2JZ-GTE
No.3 Timing Belt cover
Oil Filter Cap
x 10
Crankshaft Position Sensor
Generator
Oil Pump
Idler Pulley
O-Ring
Turbo Oil Outlet Pipe
Oil Level Sensor Connector
O-Ring
Oil Dipstick
and Guide
O-Ring
No.1 Oil Pan
Timing Belt
Plate
x 9
◆ Crankshaft Front Oil Seal
Crankshaft Timing Pulley
Drive Belt Tensioner
Bracket (M/T)
◆ Gasket
Gasket
No.2 Timing
Belt Cover
Drive Belt
Tensioner
x 6
x 16
Timing Belt
Oil Level Sensor
◆ Gasket
Oil Pan Baffle Plate
◆ Gasket
Oil Strainer
Timing Belt Guide
Gasket
x 5
No.1 Timing
Belt Cover
Crankshaft Pulley
Dust Boot
Drain Plug
Timing Belt Tensioner
◆ Gasket
x 14
No.2 Oil Pan
◆ Non-reusable part
• Precoated part
S00866
1997 SUPRA (RM502U)
Author : Date : 1454
