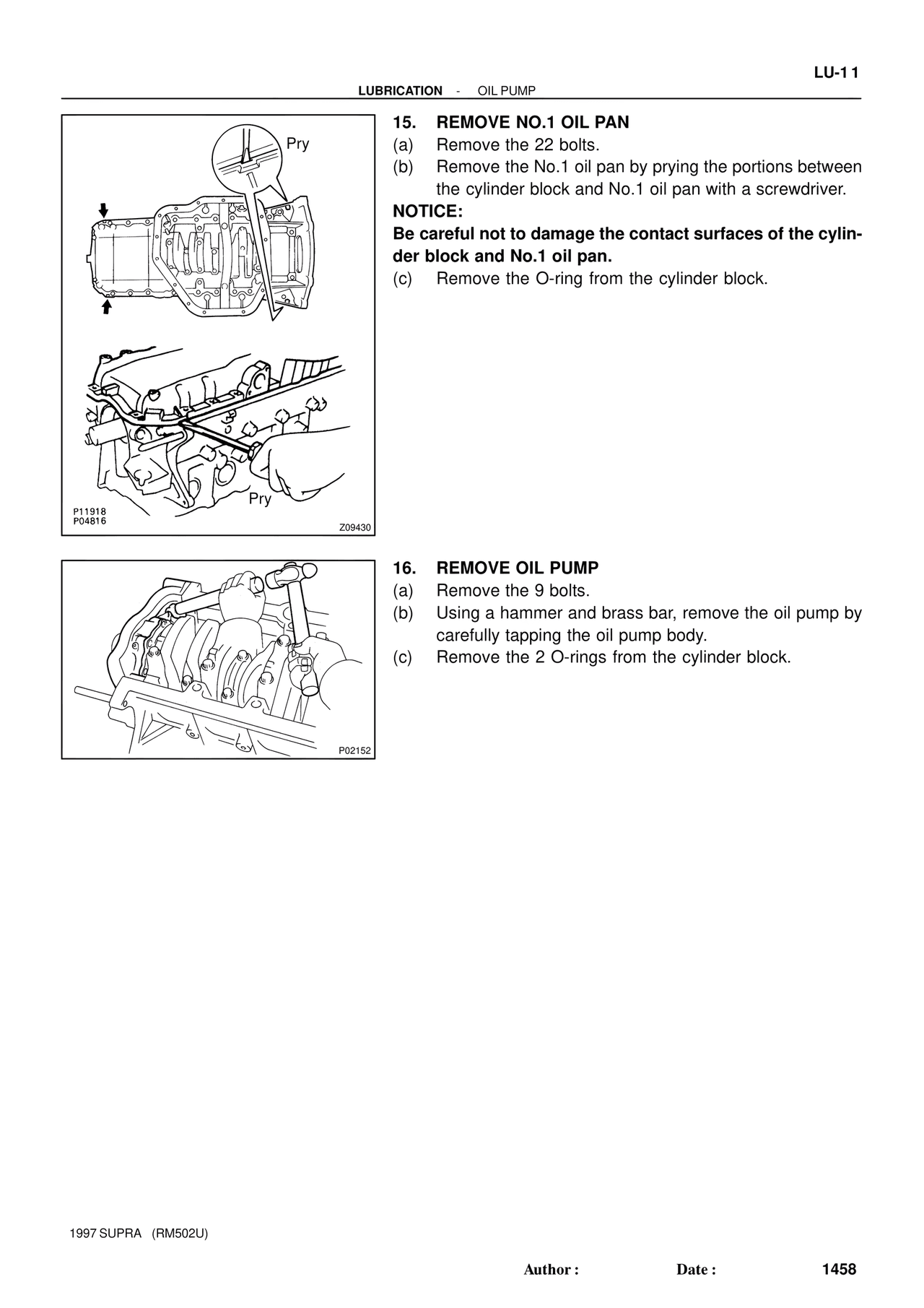

LU-11
LUBRICATION - OIL PUMP
Pry
P11918
P04816
Z09430
15. REMOVE NO.1 OIL PAN
(a) Remove the 22 bolts.
(b) Remove the No.1 oil pan by prying the portions between
the cylinder block and No.1 oil pan with a screwdriver.
NOTICE:
Be careful not to damage the contact surfaces of the cylin-
der block and No.1 oil pan.
(c) Remove the O-ring from the cylinder block.
Pry
P02152
16. REMOVE OIL PUMP
(a) Remove the 9 bolts.
(b) Using a hammer and brass bar, remove the oil pump by
carefully tapping the oil pump body.
(c) Remove the 2 O-rings from the cylinder block.
1997 SUPRA (RM502U)
