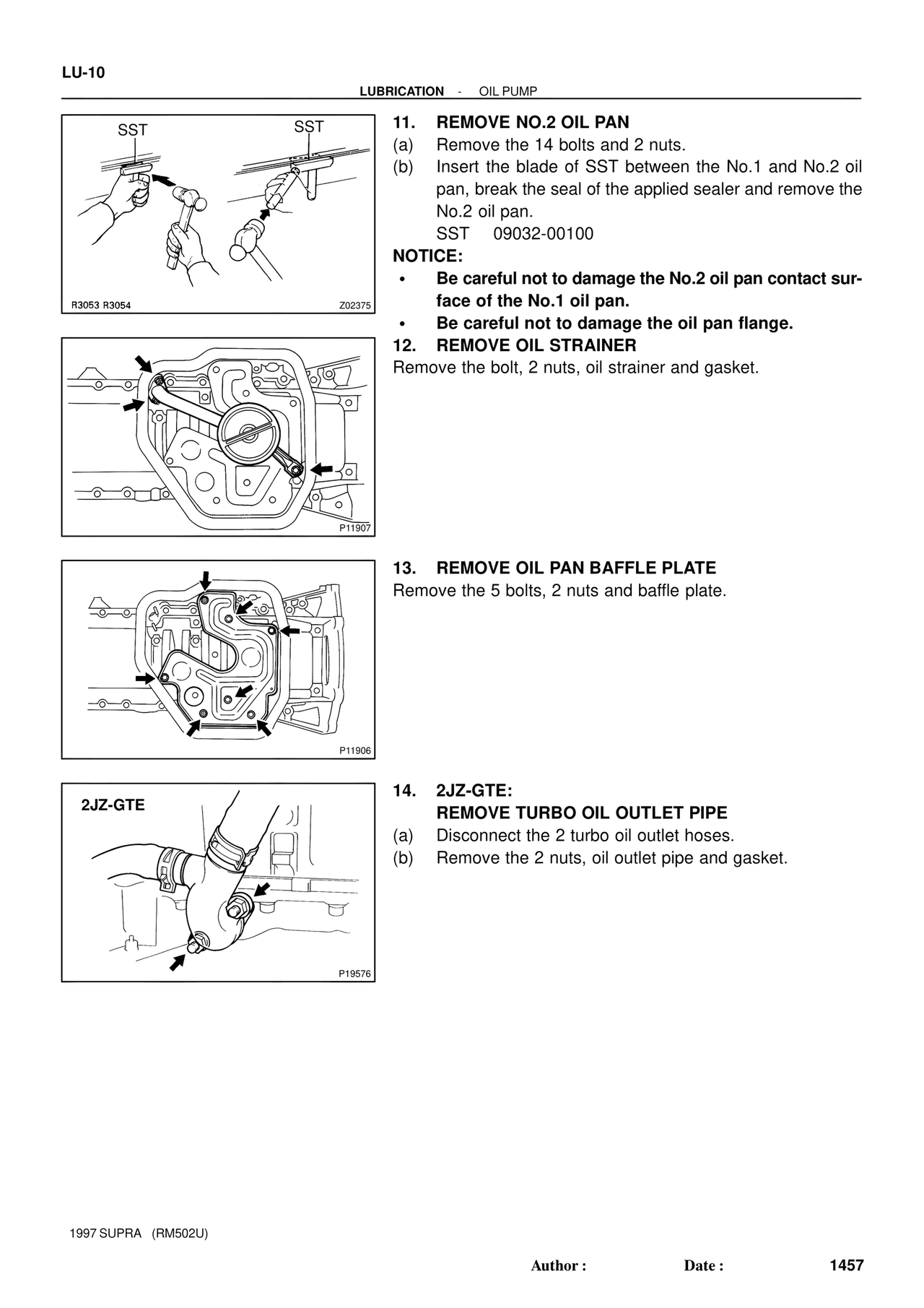

LU-10
LUBRICATION - OIL PUMP
SST SST
R3053 R3054 Z02375
11. REMOVE NO.2 OIL PAN
(a) Remove the 14 bolts and 2 nuts.
(b) Insert the blade of SST between the No.1 and No.2 oil
pan, break the seal of the applied sealer and remove the
No.2 oil pan.
SST 09032-00100
NOTICE:
• Be careful not to damage the No.2 oil pan contact sur-
face of the No.1 oil pan.
• Be careful not to damage the oil pan flange.
P11907
12. REMOVE OIL STRAINER
Remove the bolt, 2 nuts, oil strainer and gasket.
P11906
13. REMOVE OIL PAN BAFFLE PLATE
Remove the 5 bolts, 2 nuts and baffle plate.
2JZ-GTE
P19576
14. 2JZ-GTE:
REMOVE TURBO OIL OUTLET PIPE
(a) Disconnect the 2 turbo oil outlet hoses.
(b) Remove the 2 nuts, oil outlet pipe and gasket.
1997 SUPRA (RM502U)
Author : Date : 1457
