IGNITION SYSTEM — (2JZ-GE) — MK4 Supra Ignition System 2JZ-GE, page 13
100%

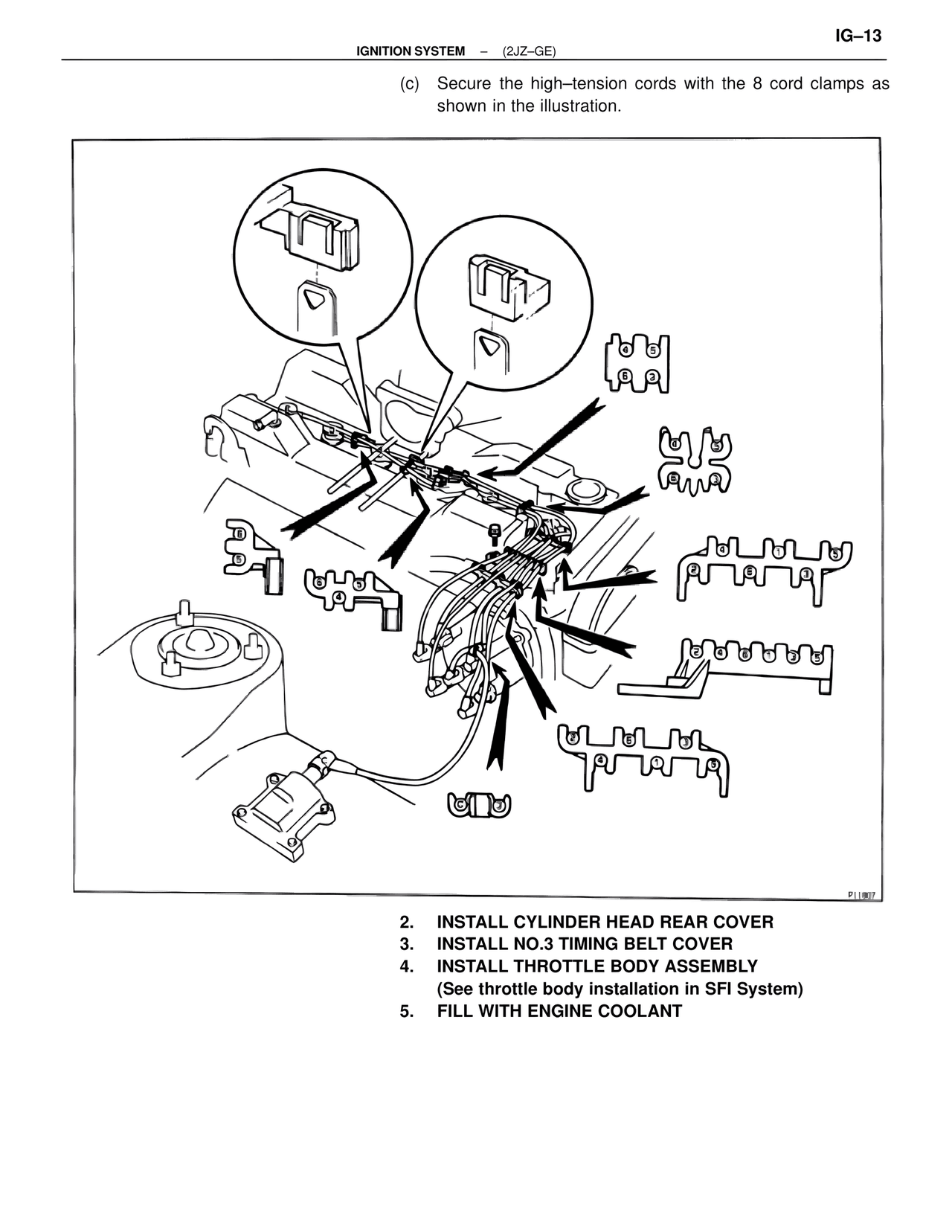

IG–13 IGNITION SYSTEM – (2JZ–GE) (c) Secure the high–tension cords with the 8 cord clamps as shown in the illustration. P11807 2. INSTALL CYLINDER HEAD REAR COVER 3. INSTALL NO.3 TIMING BELT COVER 4. INSTALL THROTTLE BODY ASSEMBLY (See throttle body installation in SFI System) 5. FILL WITH ENGINE COOLANT
