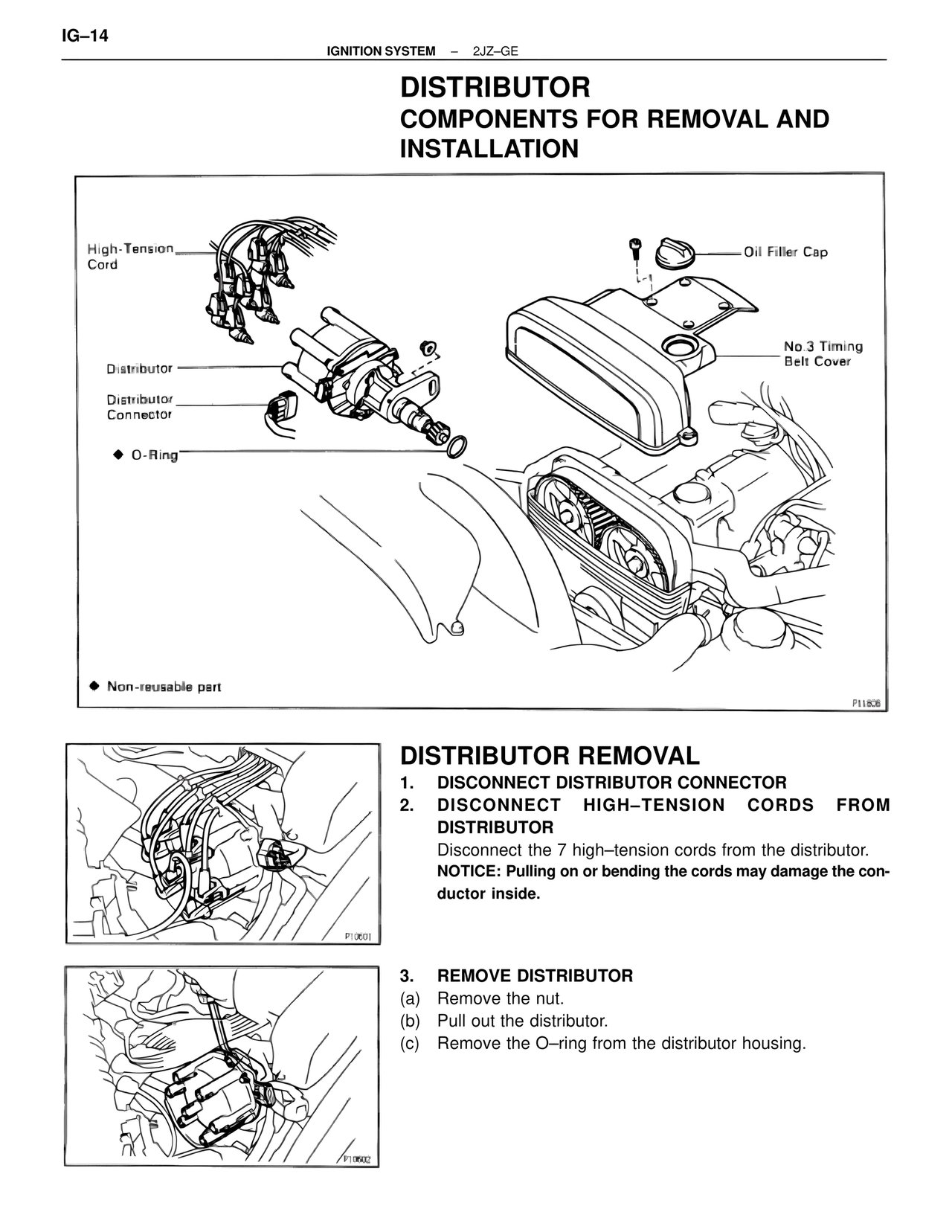

IG–14
IGNITION SYSTEM – 2JZ–GE

DISTRIBUTOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

High-Tension Cord
Distributor
Distributor Connector
♦ O-Ring
Oil Filler Cap
No.3 Timing Belt Cover

♦ Non-reusable part

P11806

DISTRIBUTOR REMOVAL
1. DISCONNECT DISTRIBUTOR CONNECTOR
2. DISCONNECT HIGH–TENSION CORDS FROM DISTRIBUTOR
Disconnect the 7 high–tension cords from the distributor.
NOTICE: Pulling on or bending the cords may damage the conductor inside.

P10601

3. REMOVE DISTRIBUTOR
(a) Remove the nut.
(b) Pull out the distributor.
(c) Remove the O–ring from the distributor housing.

P10602
