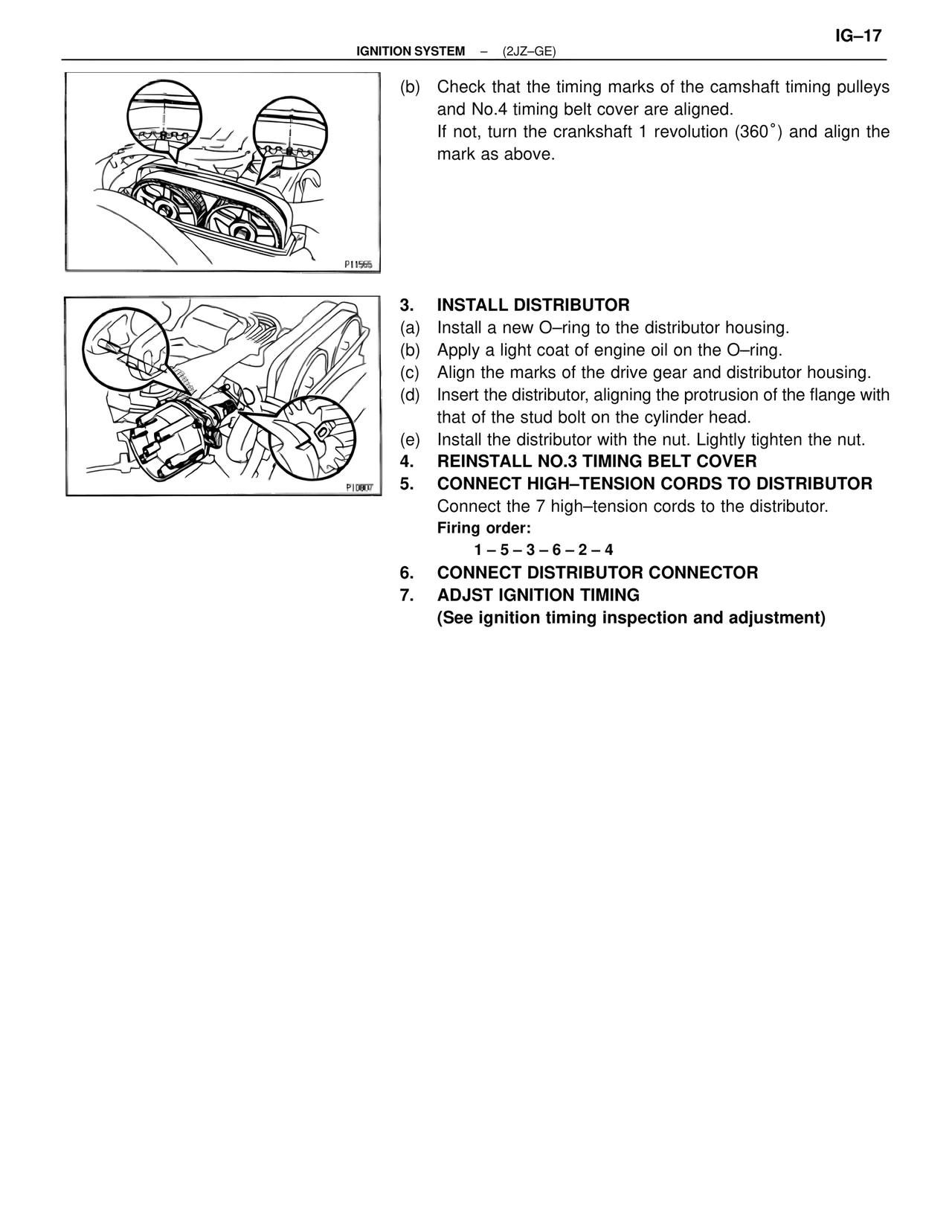

IGNITION SYSTEM – (2JZ–GE)
(b) Check that the timing marks of the camshaft timing pulleys
and No.4 timing belt cover are aligned.
If not, turn the crankshaft 1 revolution (360°) and align the
mark as above.
P11565
P10607
3. INSTALL DISTRIBUTOR
(a) Install a new O–ring to the distributor housing.
(b) Apply a light coat of engine oil on the O–ring.
(c) Align the marks of the drive gear and distributor housing.
(d) Insert the distributor, aligning the protrusion of the flange with
that of the stud bolt on the cylinder head.
(e) Install the distributor with the nut. Lightly tighten the nut.
4. REINSTALL NO.3 TIMING BELT COVER
5. CONNECT HIGH–TENSION CORDS TO DISTRIBUTOR
Connect the 7 high–tension cords to the distributor.
Firing order:
1 – 5 – 3 – 6 – 2 – 4
6. CONNECT DISTRIBUTOR CONNECTOR
7. ADJST IGNITION TIMING
(See ignition timing inspection and adjustment)
