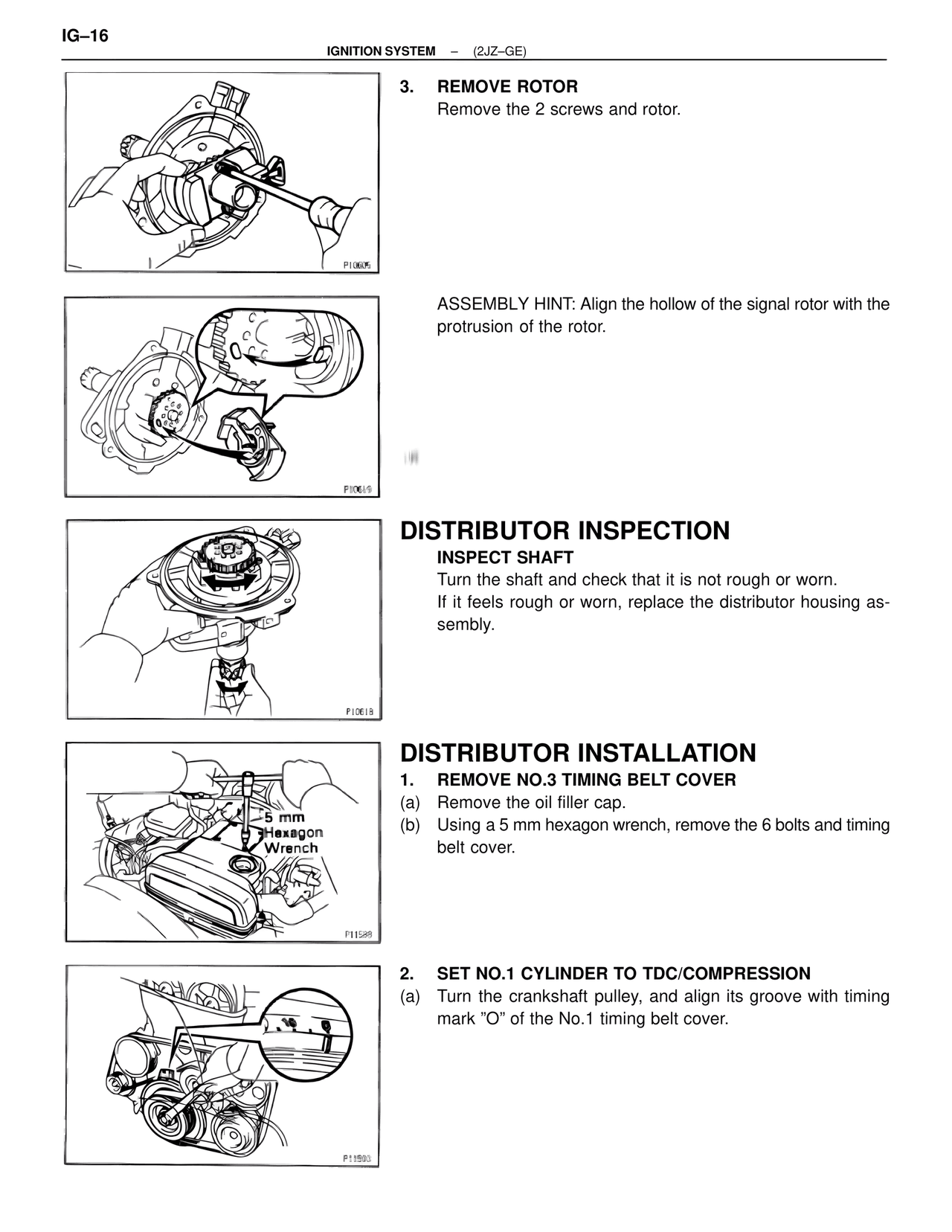

IG–16
IGNITION SYSTEM – (2JZ–GE)
3. REMOVE ROTOR
Remove the 2 screws and rotor.
ASSEMBLY HINT: Align the hollow of the signal rotor with the
protrusion of the rotor.
DISTRIBUTOR INSPECTION
INSPECT SHAFT
Turn the shaft and check that it is not rough or worn.
If it feels rough or worn, replace the distributor housing as-
sembly.
DISTRIBUTOR INSTALLATION
1. REMOVE NO.3 TIMING BELT COVER
(a) Remove the oil filler cap.
(b) Using a 5 mm hexagon wrench, remove the 6 bolts and timing
belt cover.
5 mm
Hexagon
Wrench
2. SET NO.1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley, and align its groove with timing
mark "O" of the No.1 timing belt cover.
P10605
P10619
P10618
P11589
P11593
