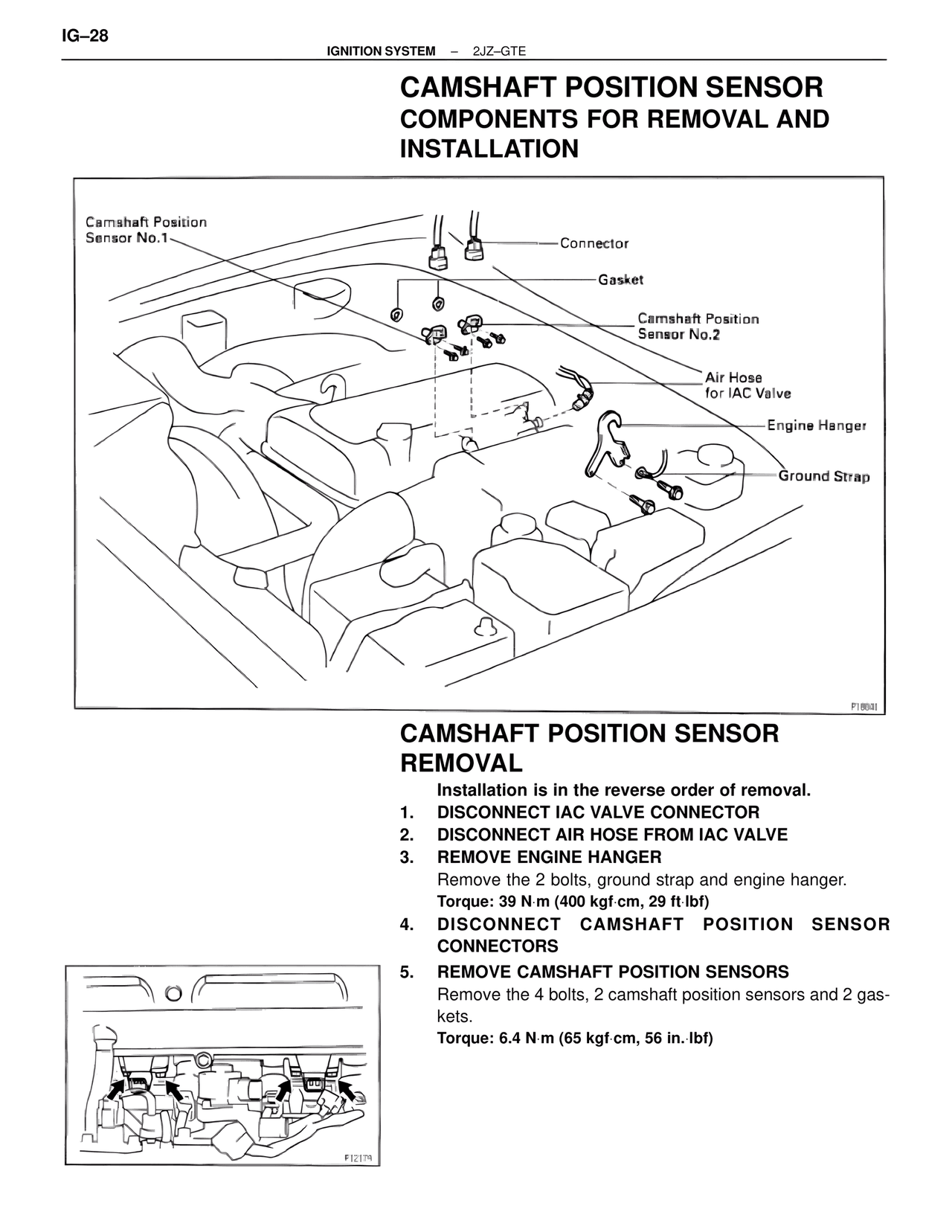

CAMSHAFT POSITION SENSOR COMPONENTS FOR REMOVAL AND INSTALLATION

Camshaft Position Sensor No.1
Connector
Gasket
Camshaft Position Sensor No.2
Air Hose for IAC Valve
Engine Hanger
Ground Strap

P18041

CAMSHAFT POSITION SENSOR REMOVAL

Installation is in the reverse order of removal.
1. DISCONNECT IAC VALVE CONNECTOR
2. DISCONNECT AIR HOSE FROM IAC VALVE
3. REMOVE ENGINE HANGER
Remove the 2 bolts, ground strap and engine hanger.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
4. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTORS
5. REMOVE CAMSHAFT POSITION SENSORS
Remove the 4 bolts, 2 camshaft position sensors and 2 gaskets.
Torque: 6.4 N·m (65 kgf·cm, 56 in.·lbf)

F12179
