IGNITION SYSTEM — 2JZ-GTE

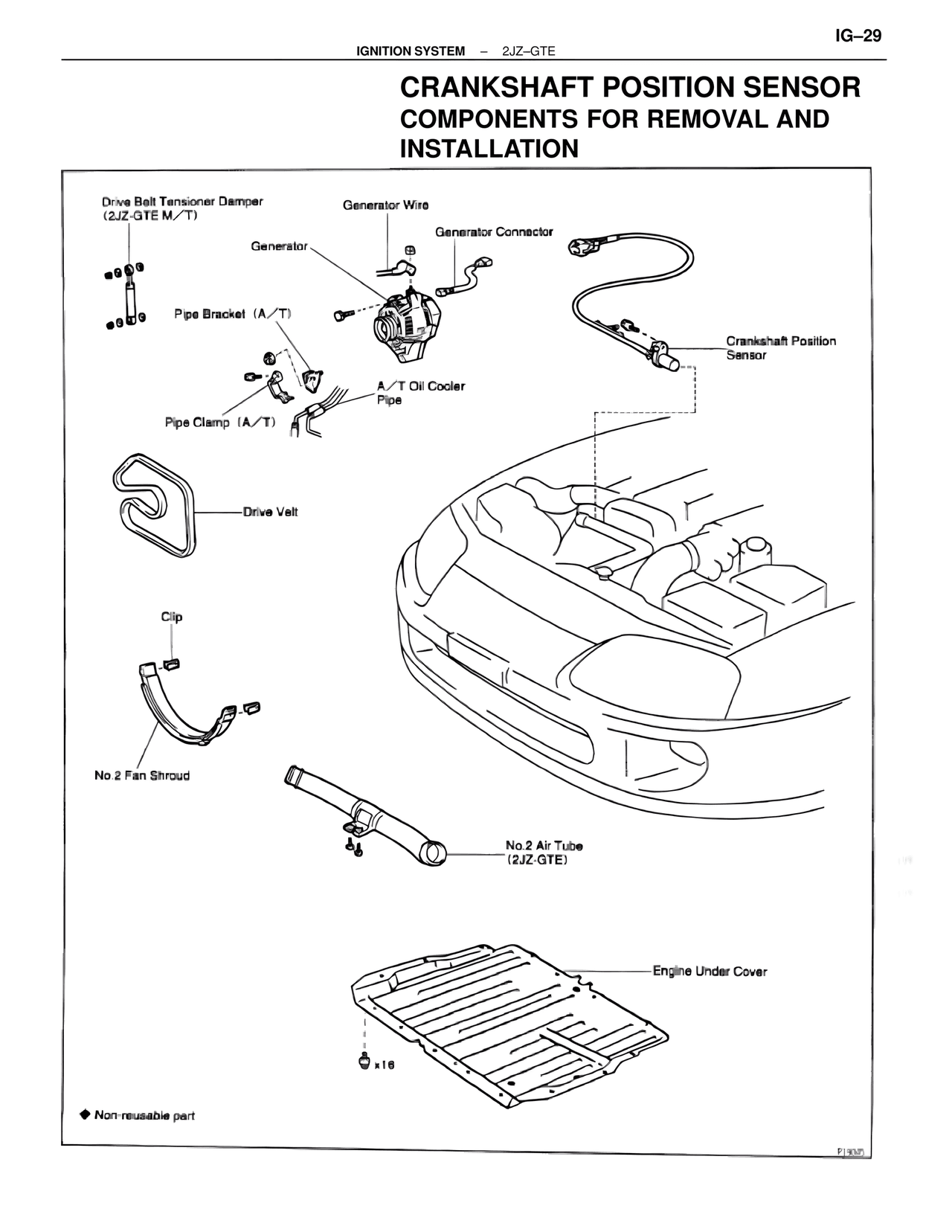

CRANKSHAFT POSITION SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

Drive Belt Tensioner Damper
(2JZ-GTE M/T)

Generator Wire

Generator Connector

Generator

Pipe Bracket (A/T)

A/T Oil Cooler
Pipe

Pipe Clamp (A/T)

Crankshaft Position
Sensor

Drive Belt

Clip

No.2 Fan Shroud

No.2 Air Tube
(2JZ-GTE)

Engine Under Cover

 x16

◆ Non-reusable part
