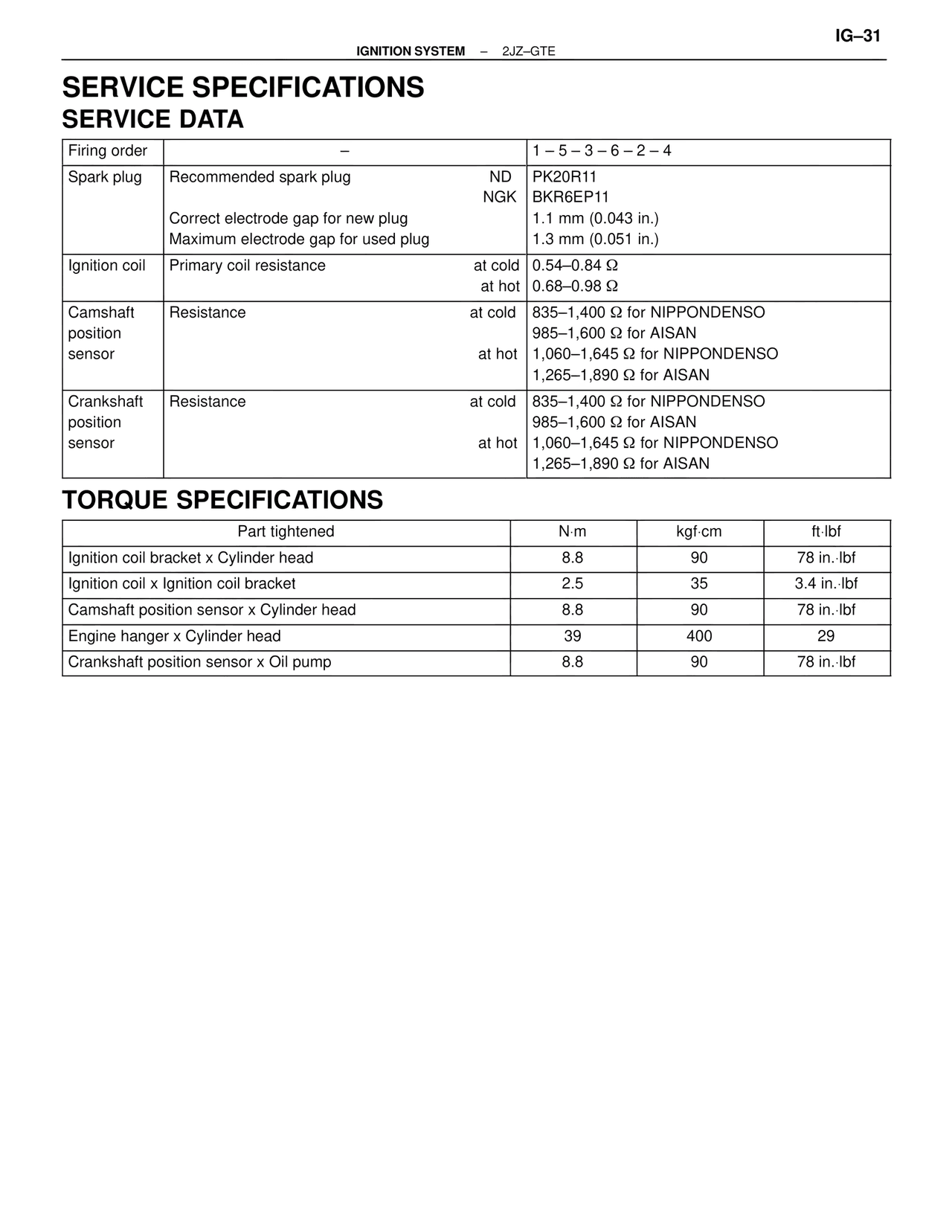

IGTE/Ignition System 2JZ-GTE — Service Specifications Service Data, page 13

SERVICE SPECIFICATIONS
SERVICE DATA

Firing order | – | 1 – 5 – 3 – 6 – 2 – 4

Spark plug | Recommended spark plug | ND | PK20R11
                                      NGK | BKR6EP11
             Correct electrode gap for new plug | 1.1 mm (0.043 in.)
             Maximum electrode gap for used plug | 1.3 mm (0.051 in.)

Ignition coil | Primary coil resistance | at cold | 0.54–0.84 Ω
                                         at hot  | 0.68–0.98 Ω

Camshaft position sensor | Resistance | at cold | 835–1,400 Ω for NIPPONDENSO
                                                   985–1,600 Ω for AISAN
                                        at hot  | 1,060–1,645 Ω for NIPPONDENSO
                                                   1,265–1,890 Ω for AISAN

Crankshaft position sensor | Resistance | at cold | 835–1,400 Ω for NIPPONDENSO
                                                     985–1,600 Ω for AISAN
                                          at hot  | 1,060–1,645 Ω for NIPPONDENSO
                                                     1,265–1,890 Ω for AISAN

TORQUE SPECIFICATIONS

Part tightened | N·m | kgf·cm | ft·lbf

Ignition coil bracket x Cylinder head | 8.8 | 90 | 78 in.·lbf
Ignition coil x Ignition coil bracket | 2.5 | 35 | 3.4 in.·lbf
Camshaft position sensor x Cylinder head | 8.8 | 90 | 78 in.·lbf
Engine hanger x Cylinder head | 39 | 400 | 29
Crankshaft position sensor x Oil pump | 8.8 | 90 | 78 in.·lbf
