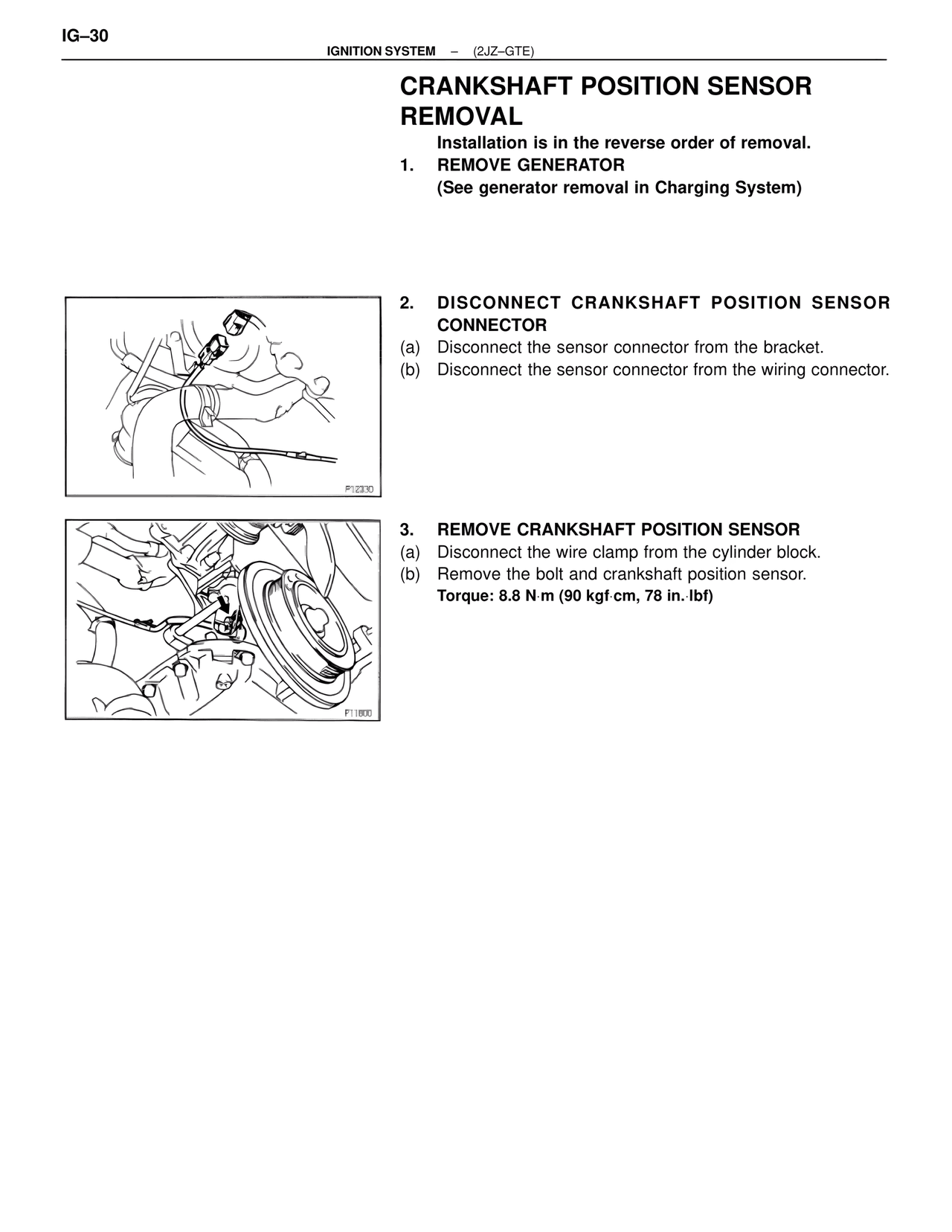

IG–30
IGNITION SYSTEM – (2JZ–GTE)
CRANKSHAFT POSITION SENSOR
REMOVAL
Installation is in the reverse order of removal.
1. REMOVE GENERATOR
(See generator removal in Charging System)
2. DISCONNECT CRANKSHAFT POSITION SENSOR
CONNECTOR
(a) Disconnect the sensor connector from the bracket.
(b) Disconnect the sensor connector from the wiring connector.
P12330
3. REMOVE CRANKSHAFT POSITION SENSOR
(a) Disconnect the wire clamp from the cylinder block.
(b) Remove the bolt and crankshaft position sensor.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
P11600
