IG–24
IGNITION SYSTEM – (2JZ–GTE)

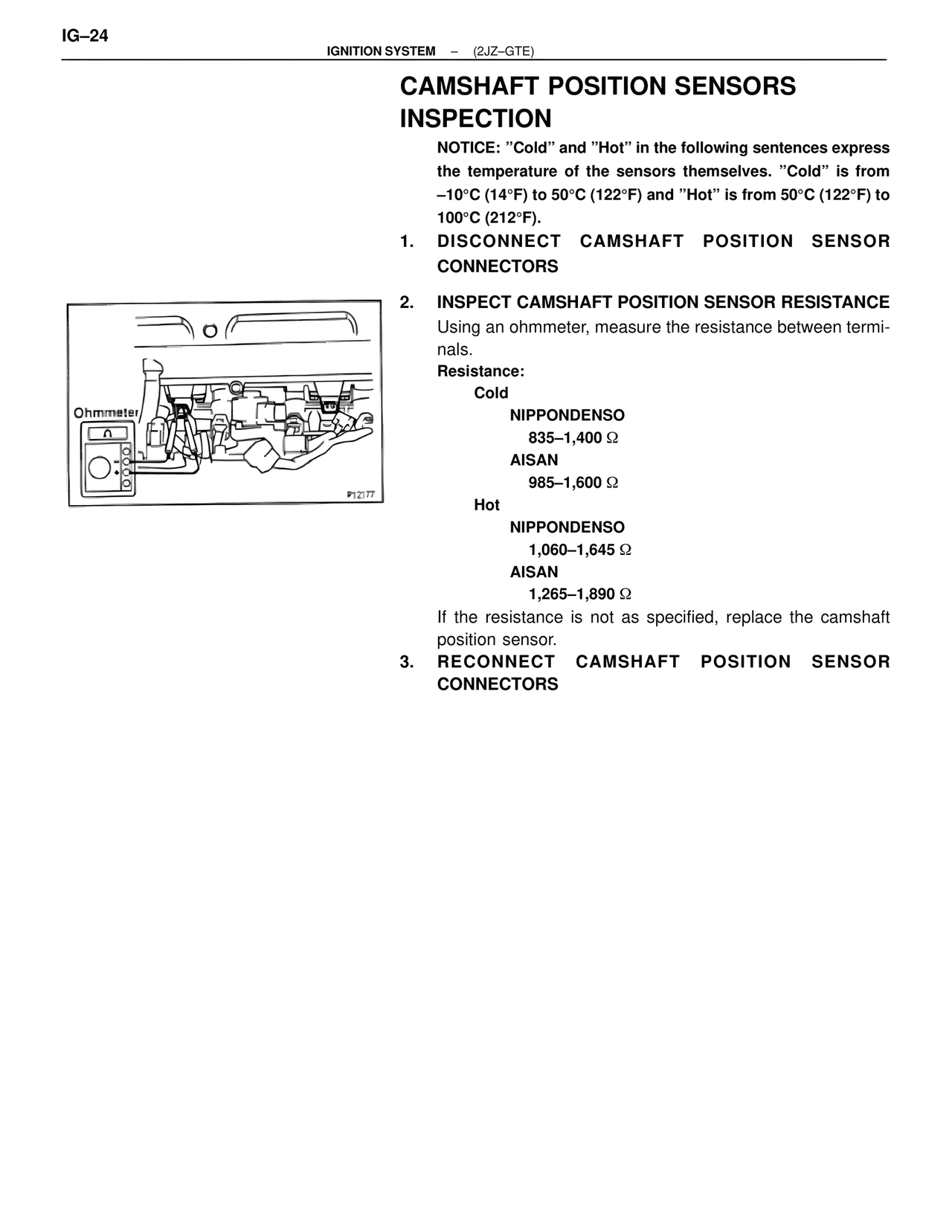

CAMSHAFT POSITION SENSORS INSPECTION
NOTICE: "Cold" and "Hot" in the following sentences express the temperature of the sensors themselves. "Cold" is from –10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
1. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTORS
2. INSPECT CAMSHAFT POSITION SENSOR RESISTANCE
Using an ohmmeter, measure the resistance between terminals.
Resistance:
Cold
NIPPONDENSO
835–1,400 Ω
AISAN
985–1,600 Ω
Hot
NIPPONDENSO
1,060–1,645 Ω
AISAN
1,265–1,890 Ω
If the resistance is not as specified, replace the camshaft position sensor.
3. RECONNECT CAMSHAFT POSITION SENSOR CONNECTORS
Ohmmeter
P12177
