IG–25
IGNITION SYSTEM – (2JZ–GTE)

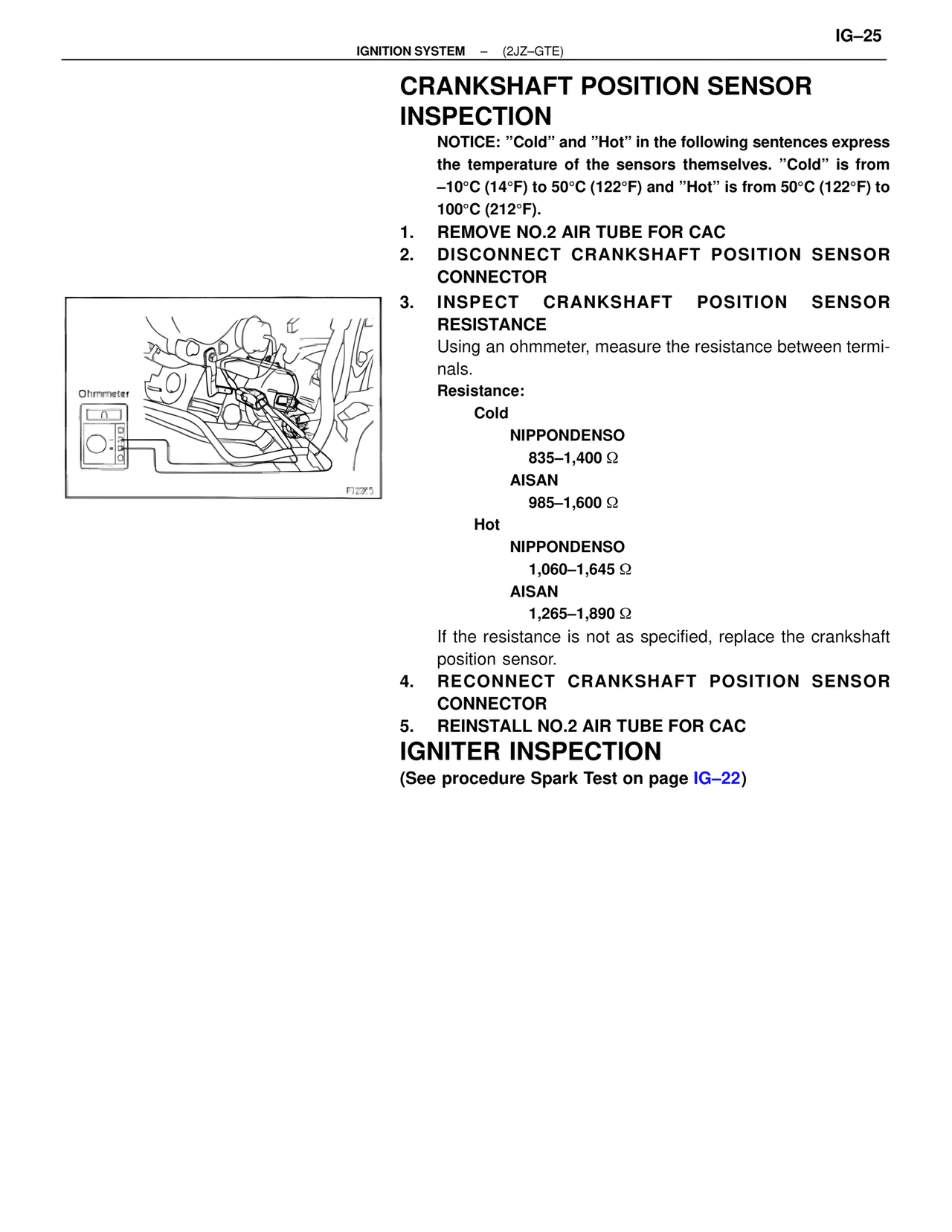

CRANKSHAFT POSITION SENSOR INSPECTION
NOTICE: "Cold" and "Hot" in the following sentences express the temperature of the sensors themselves. "Cold" is from –10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
1. REMOVE NO.2 AIR TUBE FOR CAC
2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
3. INSPECT CRANKSHAFT POSITION SENSOR RESISTANCE
Using an ohmmeter, measure the resistance between terminals.
Resistance:
Cold
NIPPONDENSO
835–1,400 Ω
AISAN
985–1,600 Ω
Hot
NIPPONDENSO
1,060–1,645 Ω
AISAN
1,265–1,890 Ω
If the resistance is not as specified, replace the crankshaft position sensor.
4. RECONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
5. REINSTALL NO.2 AIR TUBE FOR CAC
IGNITER INSPECTION
(See procedure Spark Test on page IG–22)
