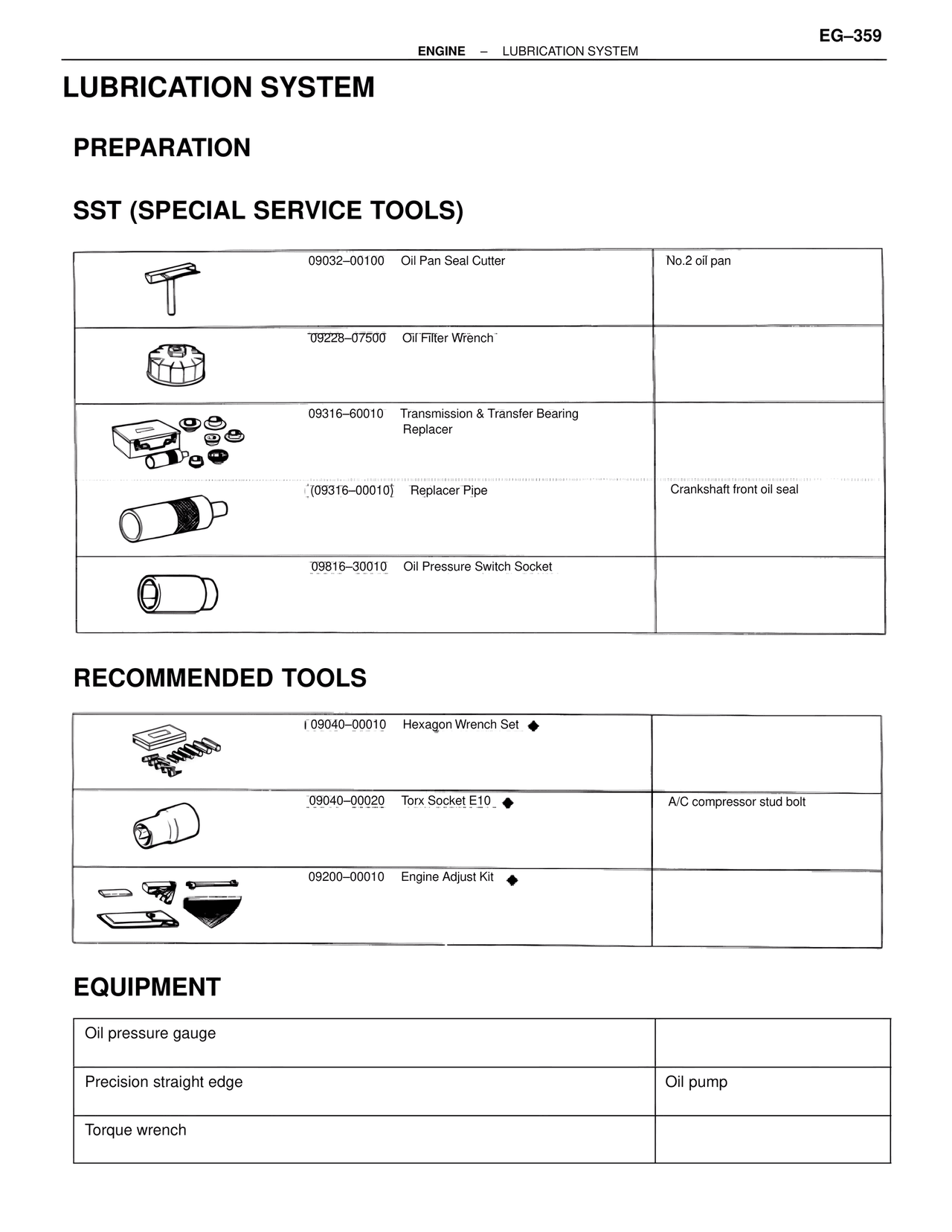

LUBRICATION SYSTEM
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09032–00100 Oil Pan Seal Cutter No.2 oil pan
09228–07500 Oil Filter Wrench
09316–60010 Transmission & Transfer Bearing Replacer
(09316–00010) Replacer Pipe Crankshaft front oil seal
09816–30010 Oil Pressure Switch Socket
RECOMMENDED TOOLS
09040–00010 Hexagon Wrench Set ◆
09040–00020 Torx Socket E10 ◆ A/C compressor stud bolt
09200–00010 Engine Adjust Kit ◆
EQUIPMENT
Oil pressure gauge
Precision straight edge Oil pump
Torque wrench
