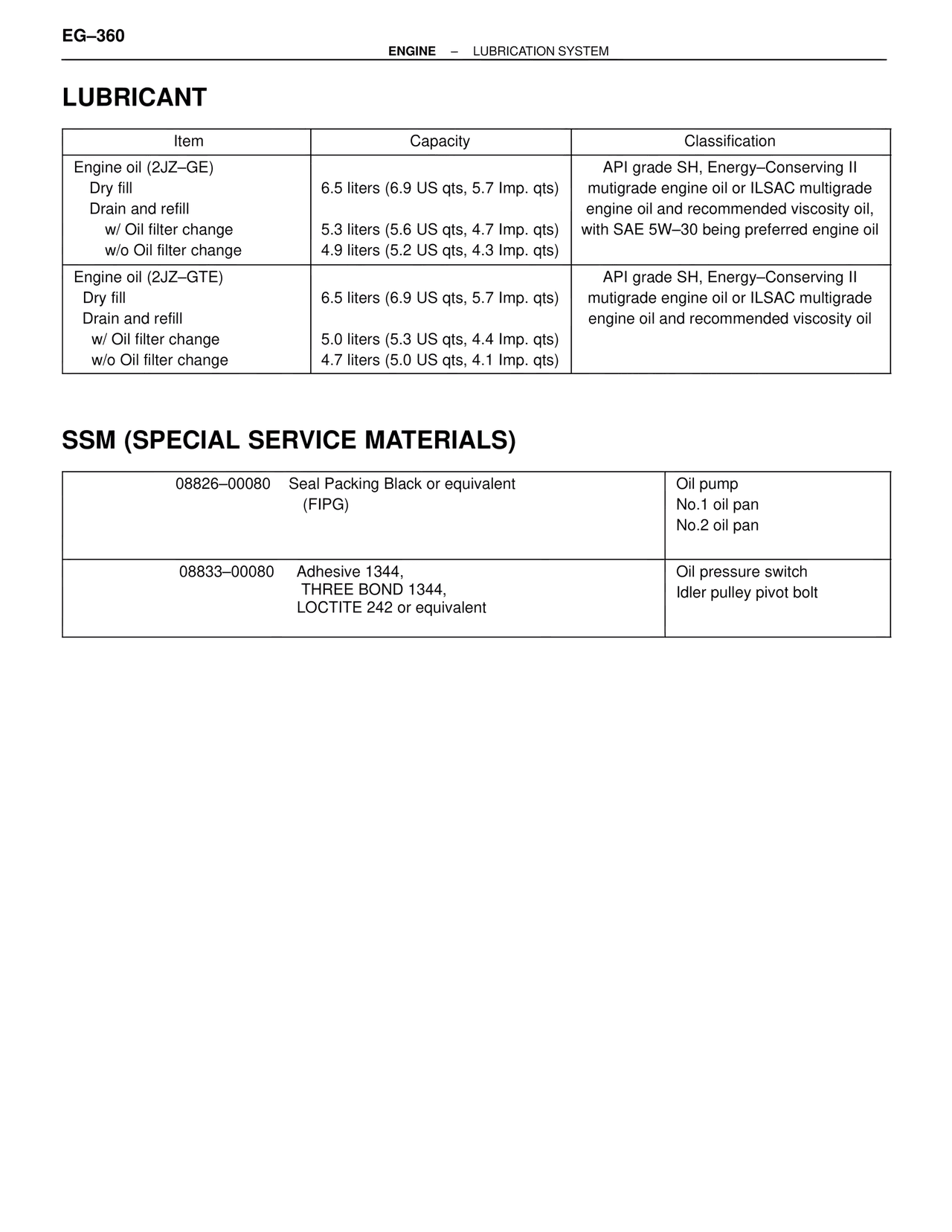

EG–360
ENGINE – LUBRICATION SYSTEM
LUBRICANT
Item | Capacity | Classification
Engine oil (2JZ–GE)
Dry fill | 6.5 liters (6.9 US qts, 5.7 Imp. qts) | API grade SH, Energy–Conserving II mutigrade engine oil or ILSAC multigrade engine oil and recommended viscosity oil, with SAE 5W–30 being preferred engine oil
Drain and refill
w/ Oil filter change | 5.3 liters (5.6 US qts, 4.7 Imp. qts)
w/o Oil filter change | 4.9 liters (5.2 US qts, 4.3 Imp. qts)
Engine oil (2JZ–GTE)
Dry fill | 6.5 liters (6.9 US qts, 5.7 Imp. qts) | API grade SH, Energy–Conserving II mutigrade engine oil or ILSAC multigrade engine oil and recommended viscosity oil
Drain and refill
w/ Oil filter change | 5.0 liters (5.3 US qts, 4.4 Imp. qts)
w/o Oil filter change | 4.7 liters (5.0 US qts, 4.1 Imp. qts)
SSM (SPECIAL SERVICE MATERIALS)
08826–00080 | Seal Packing Black or equivalent (FIPG) | Oil pump
No.1 oil pan
No.2 oil pan
08833–00080 | Adhesive 1344,
THREE BOND 1344,
LOCTITE 242 or equivalent | Oil pressure switch
Idler pulley pivot bolt
