EG–370
ENGINE – LUBRICATION SYSTEM
(b) Using a hammer and brass bar, remove the oil pump by carefully tapping the oil pump body.
(c) Remove the 2 O–rings from the cylinder block.

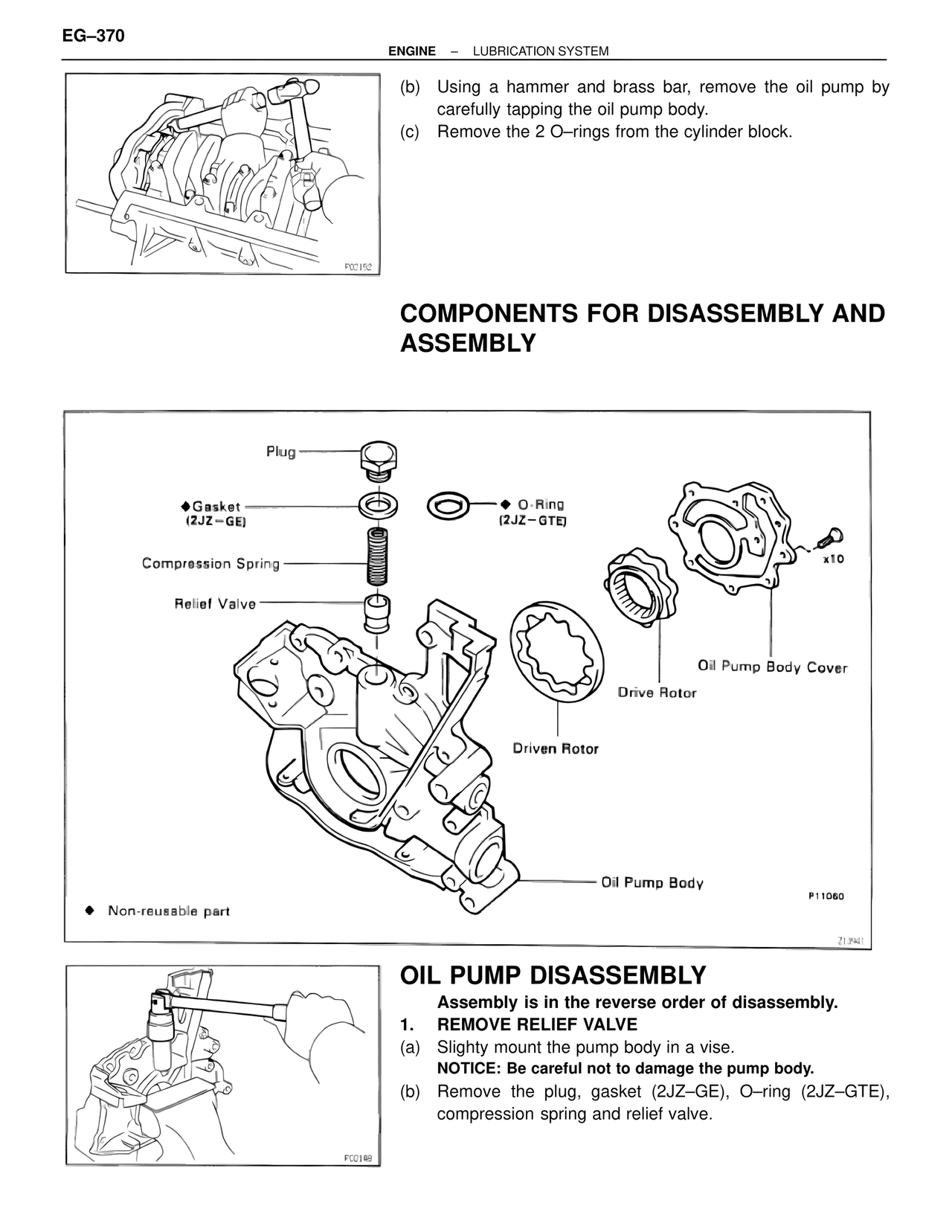

COMPONENTS FOR DISASSEMBLY AND ASSEMBLY
Plug
♦Gasket
(2JZ–GE)
♦ O-Ring
(2JZ–GTE)
Compression Spring
Relief Valve
x10
Oil Pump Body Cover
Drive Rotor
Driven Rotor
Oil Pump Body
P11060
♦ Non-reusable part
Z13941
OIL PUMP DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE RELIEF VALVE
(a) Slighty mount the pump body in a vise.
NOTICE: Be careful not to damage the pump body.
(b) Remove the plug, gasket (2JZ–GE), O–ring (2JZ–GTE), compression spring and relief valve.
P00148
