EG–369

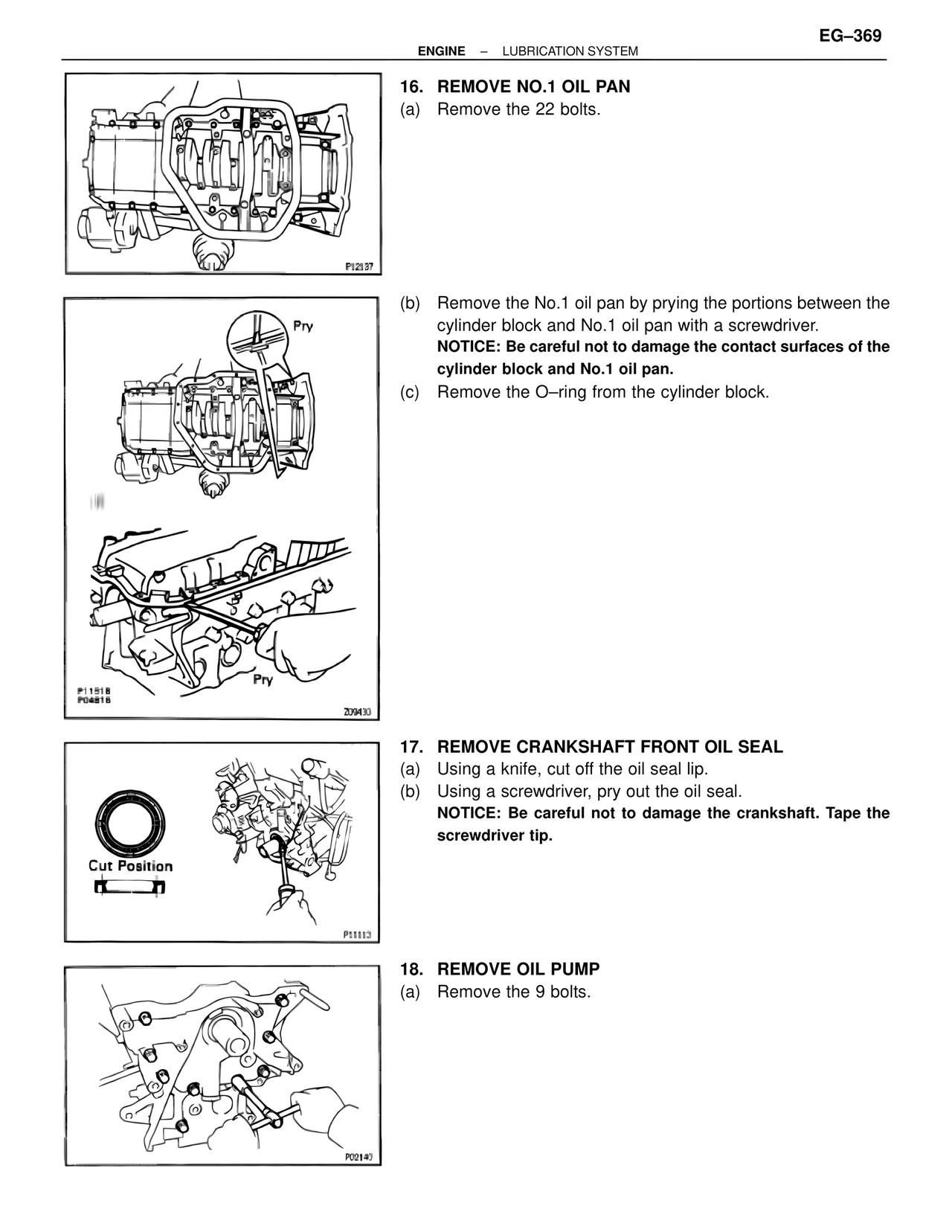

ENGINE – LUBRICATION SYSTEM
16. REMOVE NO.1 OIL PAN
(a) Remove the 22 bolts.
P12137
(b) Remove the No.1 oil pan by prying the portions between the
cylinder block and No.1 oil pan with a screwdriver.
NOTICE: Be careful not to damage the contact surfaces of the
cylinder block and No.1 oil pan.
(c) Remove the O–ring from the cylinder block.
Pry
Pry
P11918
P04816
209430
17. REMOVE CRANKSHAFT FRONT OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the crankshaft. Tape the
screwdriver tip.
Cut Position
P11113
18. REMOVE OIL PUMP
(a) Remove the 9 bolts.
P02140
