EG–376

ENGINE – LUBRICATION SYSTEM

12. 2JZ–GTE M/T:
INSTALL DRIVE BELT TENSIONER BRACKET
Torque: 27 N·m (280 kgf·cm, 20 ft·lbf)
13. INSTALL TIMING BELT
(See step 3 in timing belt installation in Engine Mechanical)
14. 2JZ–GTE:
INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
15. 2JZ–GTE:
INSTALL GENERATOR
16. REMOVE ENGINE STAND FROM ENGINE
17. ASSEMBLY ENGINE AND TRANSMISSION
(See components for engine removal & transmission separation and assembly)
18. INSTALL ENGINE WITH TRANSMISSION
(See components for engine removal and installation)

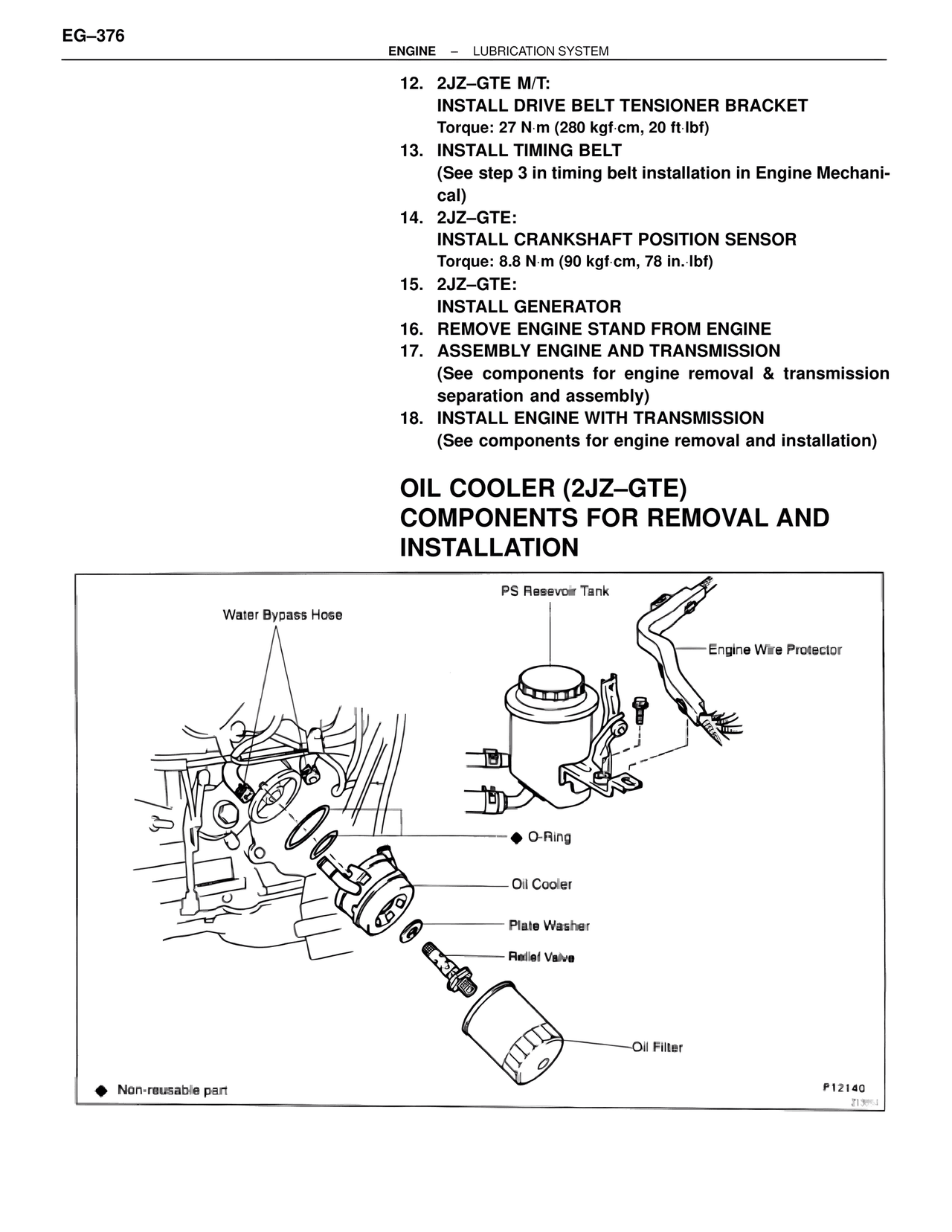

OIL COOLER (2JZ–GTE)
COMPONENTS FOR REMOVAL AND
INSTALLATION

PS Resevoir Tank
Water Bypass Hose
Engine Wire Protector
O-Ring
Oil Cooler
Plate Washer
Relief Valve
Oil Filter

◆ Non-reusable part

P12140
Z13954
