EG–378

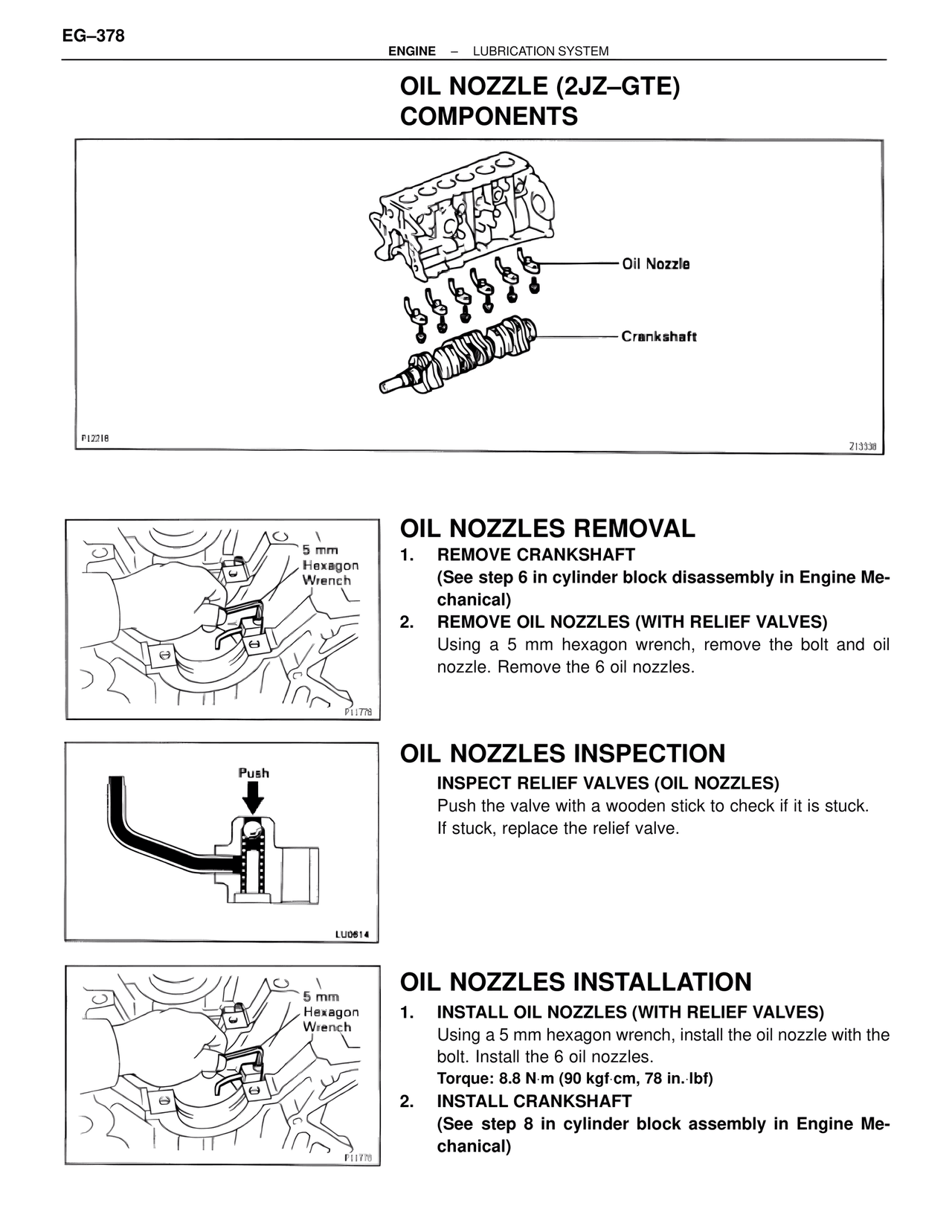

ENGINE – LUBRICATION SYSTEM
OIL NOZZLE (2JZ–GTE)
COMPONENTS
Oil Nozzle
Crankshaft
P12218
213339
5 mm
Hexagon
Wrench
F11778
OIL NOZZLES REMOVAL
1. REMOVE CRANKSHAFT
(See step 6 in cylinder block disassembly in Engine Mechanical)
2. REMOVE OIL NOZZLES (WITH RELIEF VALVES)
Using a 5 mm hexagon wrench, remove the bolt and oil nozzle. Remove the 6 oil nozzles.
Push
LU0614
OIL NOZZLES INSPECTION
INSPECT RELIEF VALVES (OIL NOZZLES)
Push the valve with a wooden stick to check if it is stuck.
If stuck, replace the relief valve.
5 mm
Hexagon
Wrench
F11778
OIL NOZZLES INSTALLATION
1. INSTALL OIL NOZZLES (WITH RELIEF VALVES)
Using a 5 mm hexagon wrench, install the oil nozzle with the bolt. Install the 6 oil nozzles.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
2. INSTALL CRANKSHAFT
(See step 8 in cylinder block assembly in Engine Mechanical)
