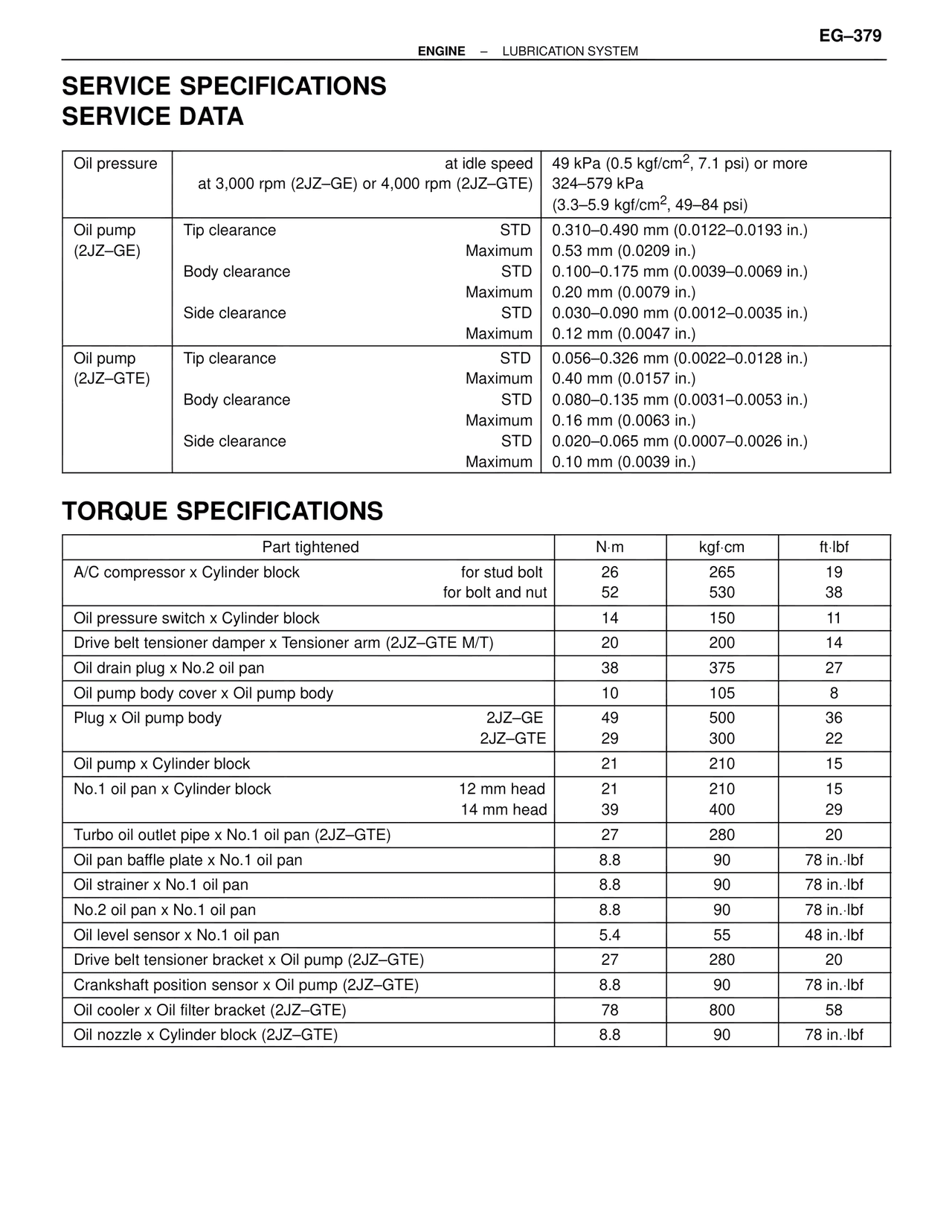

SERVICE SPECIFICATIONS SERVICE DATA Oil pressure | at idle speed | 49 kPa (0.5 kgf/cm2, 7.1 psi) or more at 3,000 rpm (2JZ–GE) or 4,000 rpm (2JZ–GTE) | 324–579 kPa (3.3–5.9 kgf/cm2, 49–84 psi) Oil pump (2JZ–GE) Tip clearance STD 0.310–0.490 mm (0.0122–0.0193 in.) Maximum 0.53 mm (0.0209 in.) Body clearance STD 0.100–0.175 mm (0.0039–0.0069 in.) Maximum 0.20 mm (0.0079 in.) Side clearance STD 0.030–0.090 mm (0.0012–0.0035 in.) Maximum 0.12 mm (0.0047 in.) Oil pump (2JZ–GTE) Tip clearance STD 0.056–0.326 mm (0.0022–0.0128 in.) Maximum 0.40 mm (0.0157 in.) Body clearance STD 0.080–0.135 mm (0.0031–0.0053 in.) Maximum 0.16 mm (0.0063 in.) Side clearance STD 0.020–0.065 mm (0.0007–0.0026 in.) Maximum 0.10 mm (0.0039 in.) TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf A/C compressor x Cylinder block for stud bolt | 26 | 265 | 19 for bolt and nut | 52 | 530 | 38 Oil pressure switch x Cylinder block | 14 | 150 | 11 Drive belt tensioner damper x Tensioner arm (2JZ–GTE M/T) | 20 | 200 | 14 Oil drain plug x No.2 oil pan | 38 | 375 | 27 Oil pump body cover x Oil pump body | 10 | 105 | 8 Plug x Oil pump body 2JZ–GE | 49 | 500 | 36 2JZ–GTE | 29 | 300 | 22 Oil pump x Cylinder block | 21 | 210 | 15 No.1 oil pan x Cylinder block 12 mm head | 21 | 210 | 15 14 mm head | 39 | 400 | 29 Turbo oil outlet pipe x No.1 oil pan (2JZ–GTE) | 27 | 280 | 20 Oil pan baffle plate x No.1 oil pan | 8.8 | 90 | 78 in.·lbf Oil strainer x No.1 oil pan | 8.8 | 90 | 78 in.·lbf No.2 oil pan x No.1 oil pan | 8.8 | 90 | 78 in.·lbf Oil level sensor x No.1 oil pan | 5.4 | 55 | 48 in.·lbf Drive belt tensioner bracket x Oil pump (2JZ–GTE) | 27 | 280 | 20 Crankshaft position sensor x Oil pump (2JZ–GTE) | 8.8 | 90 | 78 in.·lbf Oil cooler x Oil filter bracket (2JZ–GTE) | 78 | 800 | 58 Oil nozzle x Cylinder block (2JZ–GTE) | 8.8 | 90 | 78 in.·lbf
