ENGINE — LUBRICATION SYSTEM

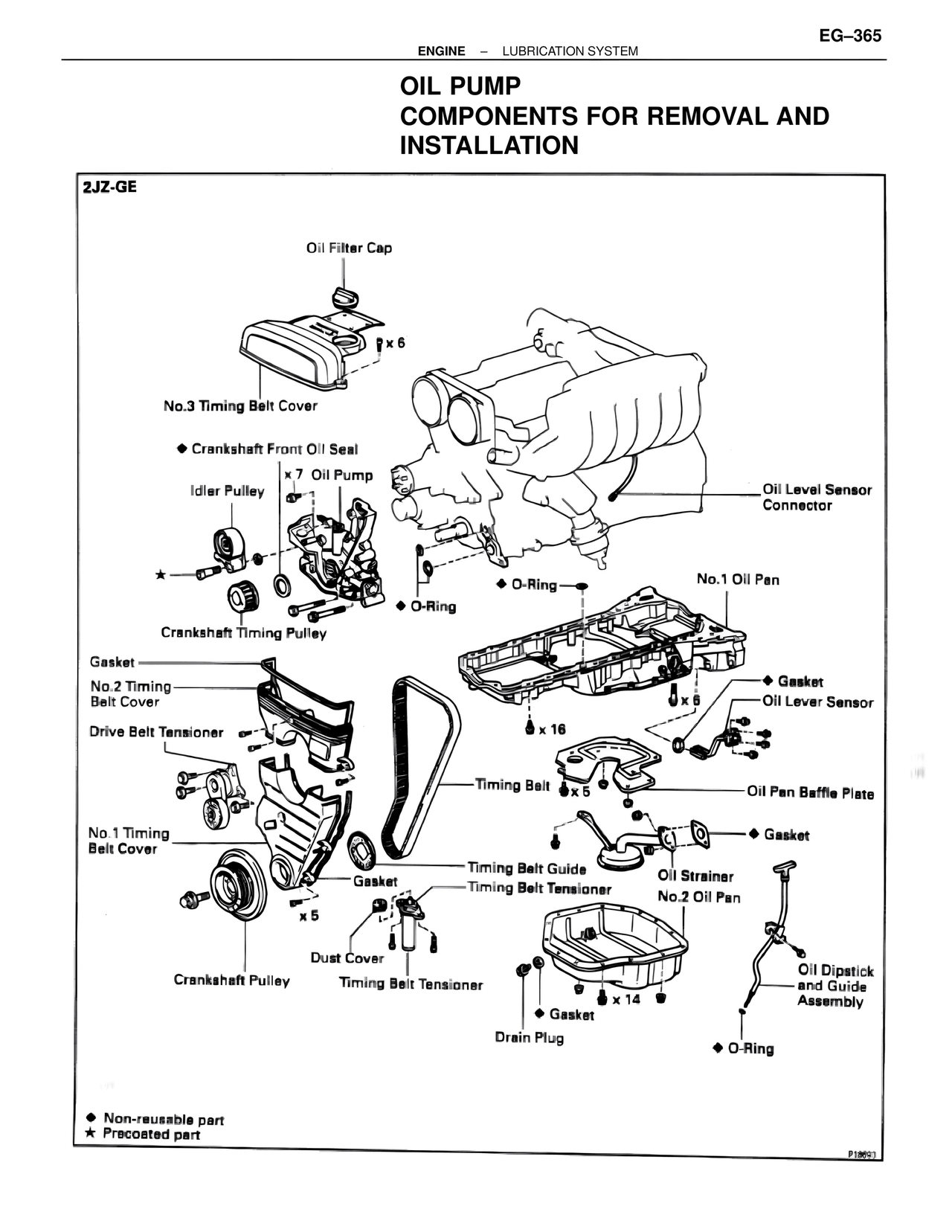

OIL PUMP
COMPONENTS FOR REMOVAL AND
INSTALLATION

2JZ-GE

Oil Filter Cap

♦ x 6

No.3 Timing Belt Cover

♦ Crankshaft Front Oil Seal

x 7 Oil Pump

Idler Pulley

★

Crankshaft Timing Pulley

Gasket

No.2 Timing
Belt Cover

Drive Belt Tensioner

No.1 Timing
Belt Cover

x 5

Crankshaft Pulley

Oil Level Sensor
Connector

♦ O-Ring

No.1 Oil Pan

♦ Gasket

x 6

Oil Lever Sensor

x 16

Timing Belt

♦ x 5

Oil Pan Baffle Plate

♦ Gasket

Gasket

Timing Belt Guide
Timing Belt Tensioner

Oil Strainer
No.2 Oil Pan

Dust Cover

Timing Belt Tensioner

x 14

♦ Gasket

Drain Plug

Oil Dipstick
and Guide
Assembly

♦ O-Ring

♦ Non-reusable part
★ Precoated part
