EG–366

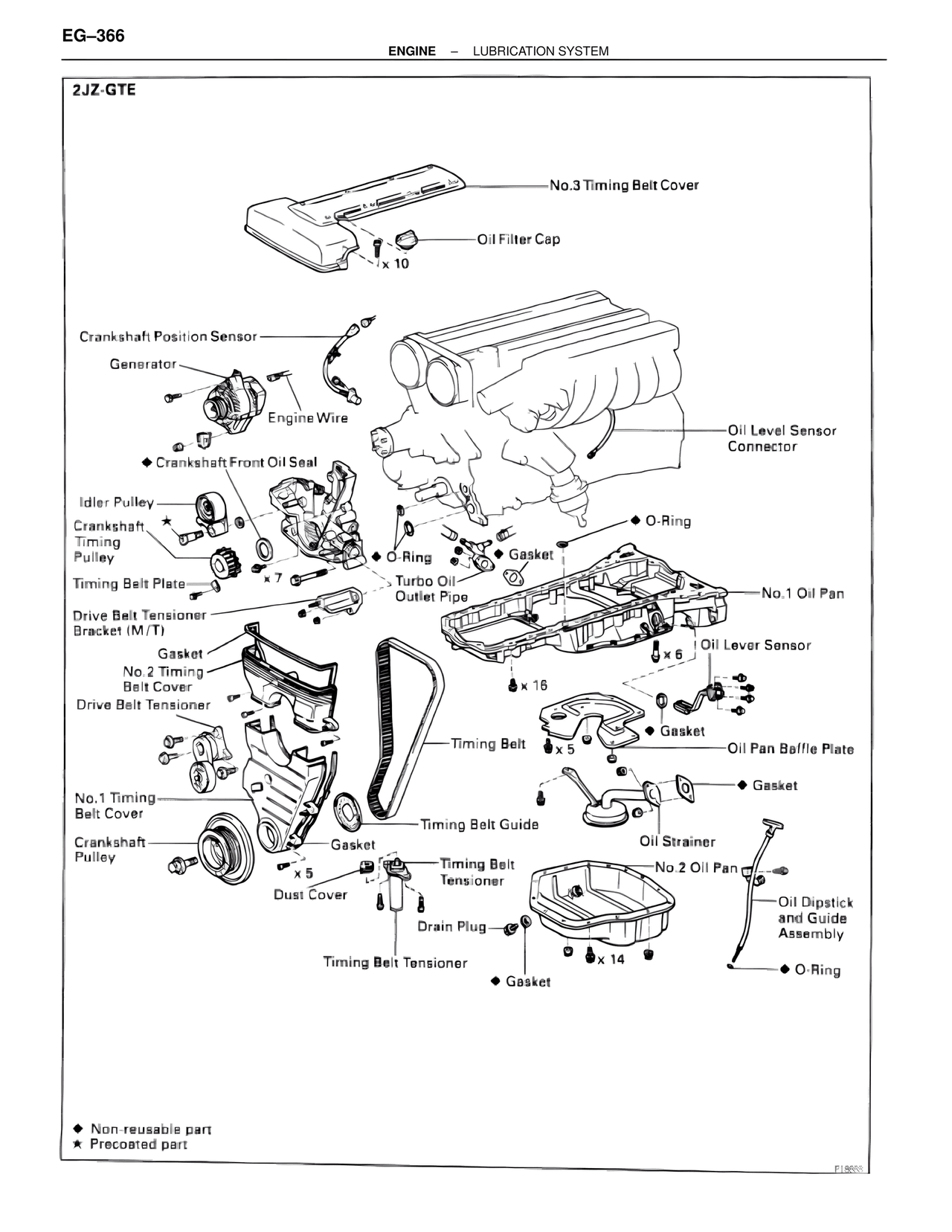

ENGINE – LUBRICATION SYSTEM
2JZ-GTE
No.3 Timing Belt Cover
Oil Filter Cap
x 10
Crankshaft Position Sensor
Generator
Engine Wire
♦ Crankshaft Front Oil Seal
Idler Pulley
Crankshaft
Timing
Pulley
Timing Belt Plate
x 7
Drive Belt Tensioner
Bracket (M/T)
Gasket
No.2 Timing
Belt Cover
Drive Belt Tensioner
No.1 Timing
Belt Cover
Crankshaft
Pulley
x 5
Dust Cover
Oil Level Sensor
Connector
♦ O-Ring
♦ Gasket
♦ O-Ring
Turbo Oil
Outlet Pipe
No.1 Oil Pan
Oil Lever Sensor
♦ x 6
♦ x 16
Timing Belt
♦ x 5
♦ Gasket
Timing Belt Guide
Gasket
Timing Belt
Tensioner
Drain Plug
Timing Belt Tensioner
♦ Gasket
Oil Pan Baffle Plate
♦ Gasket
Oil Strainer
No.2 Oil Pan
♦ x 14
Oil Dipstick
and Guide
Assembly
♦ O-Ring
♦ Non-reusable part
★ Precoated part
