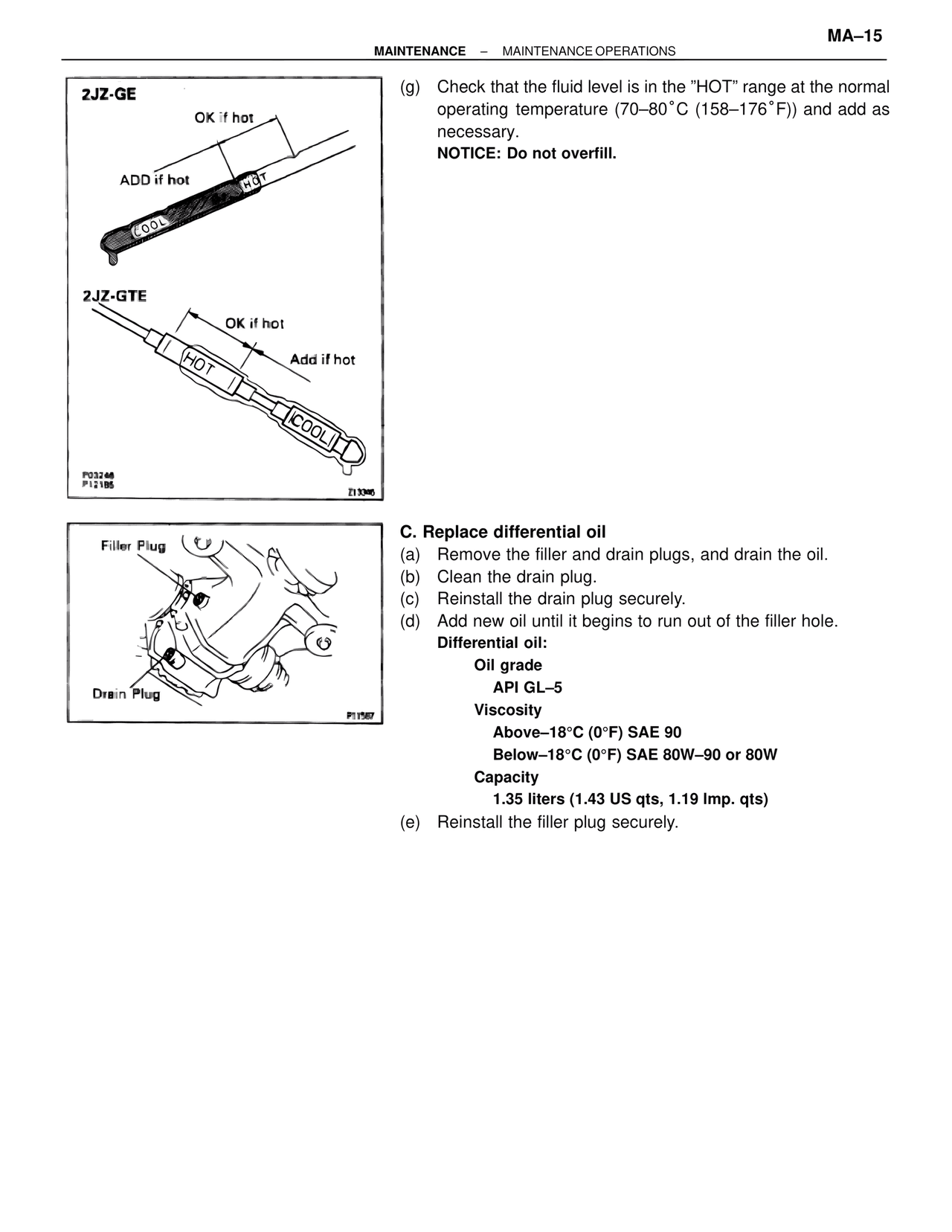

MA–15

MAINTENANCE – MAINTENANCE OPERATIONS

2JZ-GE

OK if hot

ADD if hot

HOT

COOL

2JZ-GTE

OK if hot

Add if hot

HOT

COOL

P03246
P12185
Z13045

(g) Check that the fluid level is in the "HOT" range at the normal
operating temperature (70–80°C (158–176°F)) and add as
necessary.
NOTICE: Do not overfill.

Filler Plug

Drain Plug

P11567

C. Replace differential oil
(a) Remove the filler and drain plugs, and drain the oil.
(b) Clean the drain plug.
(c) Reinstall the drain plug securely.
(d) Add new oil until it begins to run out of the filler hole.
    Differential oil:
        Oil grade
            API GL–5
        Viscosity
            Above–18°C (0°F) SAE 90
            Below–18°C (0°F) SAE 80W–90 or 80W
        Capacity
            1.35 liters (1.43 US qts, 1.19 Imp. qts)
(e) Reinstall the filler plug securely.
