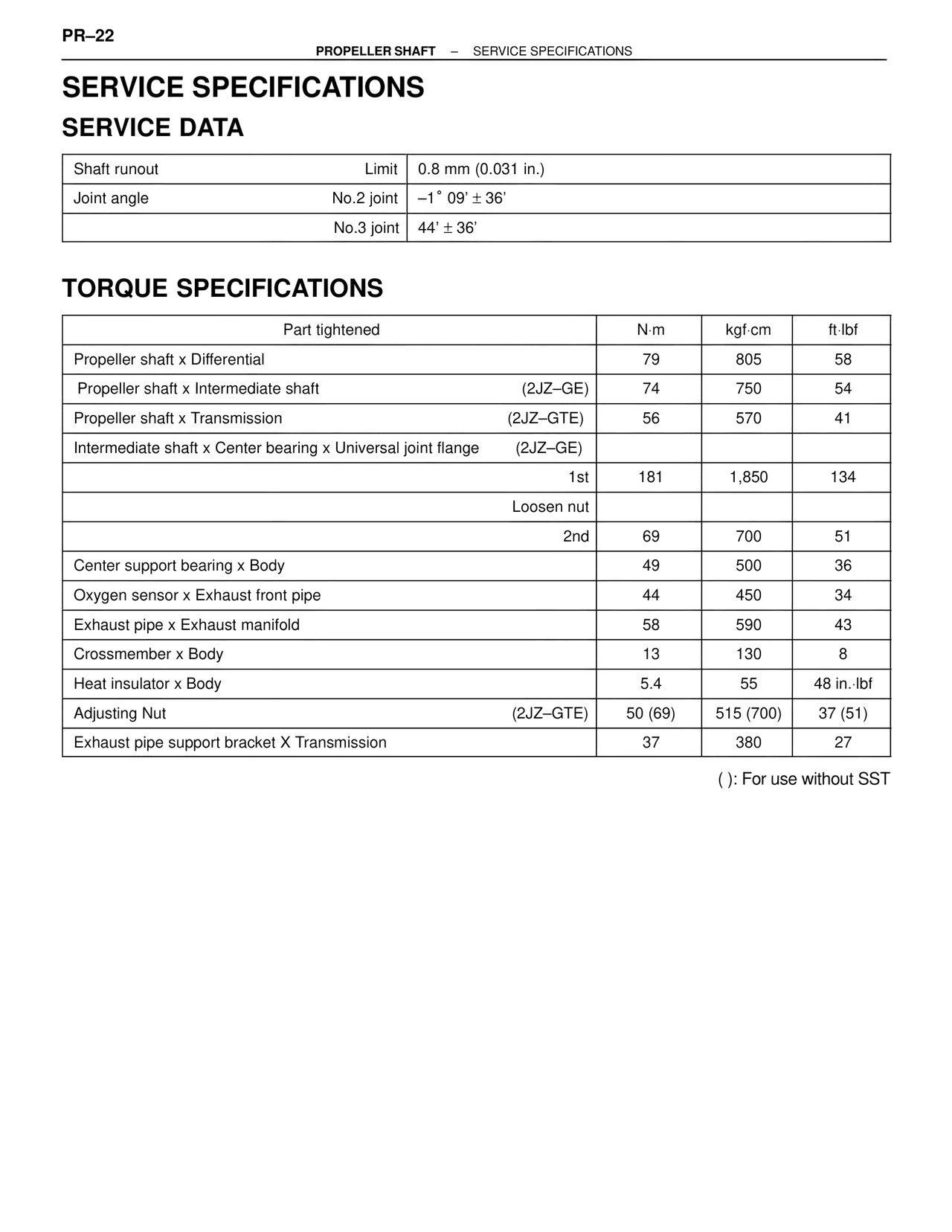

PR–22
PROPELLER SHAFT – SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
Shaft runout Limit 0.8 mm (0.031 in.)
Joint angle No.2 joint –1° 09' ± 36'
No.3 joint 44' ± 36'
TORQUE SPECIFICATIONS
Part tightened N·m kgf·cm ft·lbf
Propeller shaft x Differential 79 805 58
Propeller shaft x Intermediate shaft (2JZ–GE) 74 750 54
Propeller shaft x Transmission (2JZ–GTE) 56 570 41
Intermediate shaft x Center bearing x Universal joint flange (2JZ–GE)
1st 181 1,850 134
Loosen nut
2nd 69 700 51
Center support bearing x Body 49 500 36
Oxygen sensor x Exhaust front pipe 44 450 34
Exhaust pipe x Exhaust manifold 58 590 43
Crossmember x Body 13 130 8
Heat insulator x Body 5.4 55 48 in.·lbf
Adjusting Nut (2JZ–GTE) 50 (69) 515 (700) 37 (51)
Exhaust pipe support bracket X Transmission 37 380 27
( ): For use without SST
