PR–21
PROPELLER SHAFT – PROPELLER SHAFT

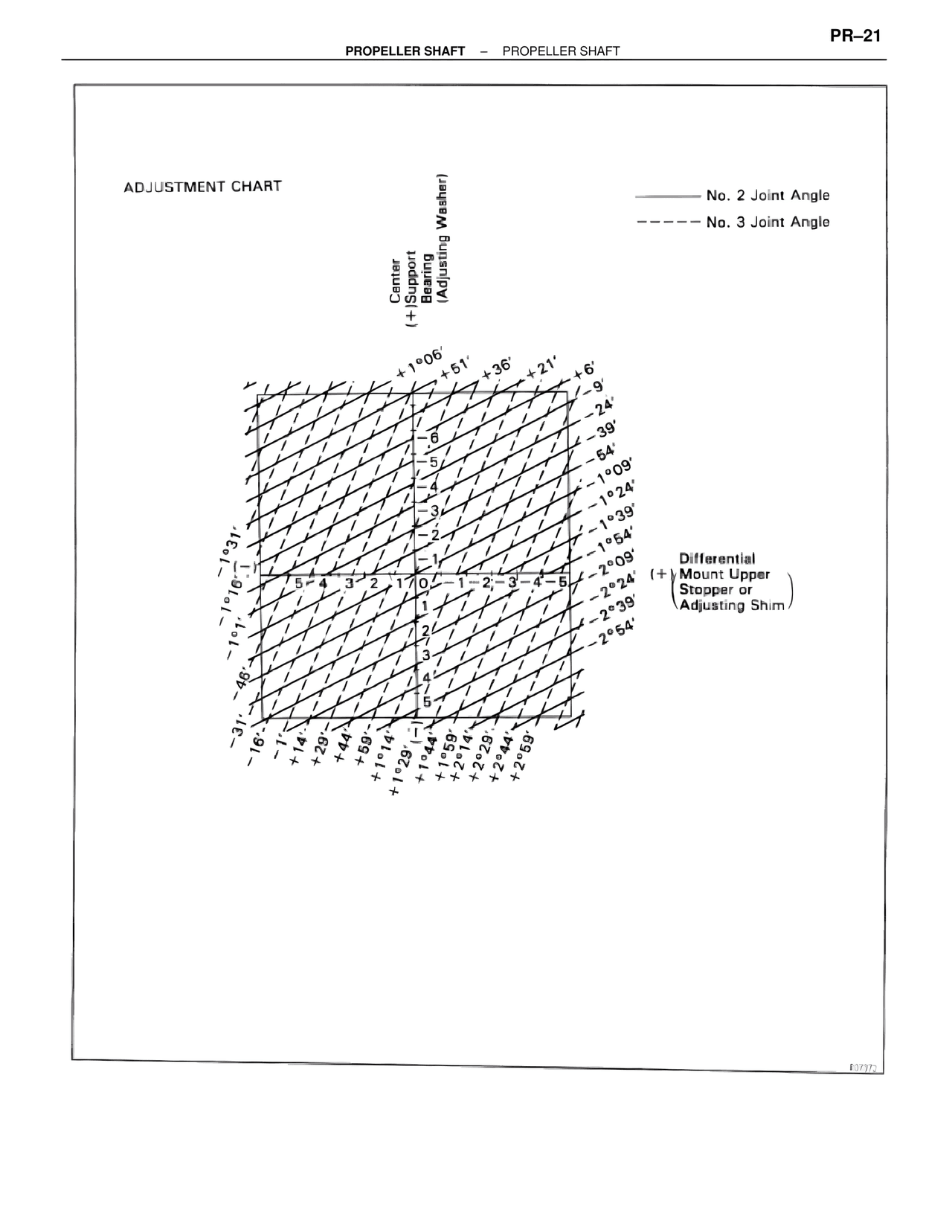

ADJUSTMENT CHART
——— No. 2 Joint Angle
- - - - No. 3 Joint Angle
Center
(+)Support
Bearing
(Adjusting Washer)
+1°06'
+51'
+36'
+21'
+6'
-9'
-24'
-39'
-54'
-1°09'
-1°24'
-1°39'
-1°54'
-2°09'
-2°24'
-2°39'
-2°54'
-1°31'
-1°16'
-1°01'
-46'
-31'
-16'
-1'
+14'
+29'
+44'
+59'
+1°14'
+1°29'
+1°44'
+1°59'
+2°14'
+2°29'
+2°44'
+2°59'
5 4 3 2 1 0 -1 -2 -3 -4 -5
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
Differential
(+) Mount Upper
Stopper or
Adjusting Shim
60P372
