SR–12
STEERING – TILT STEERING COLUMN

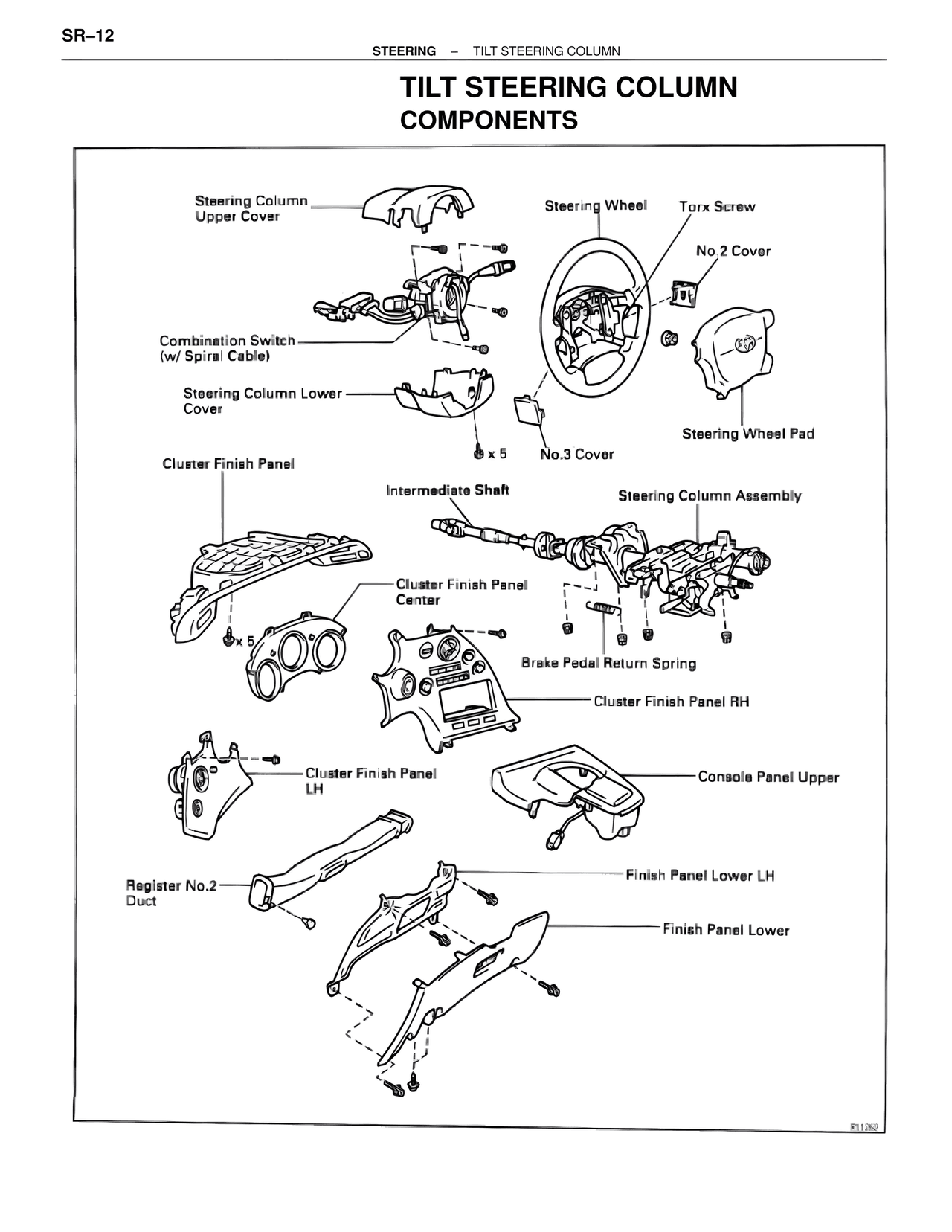

TILT STEERING COLUMN
COMPONENTS
Steering Column
Upper Cover
Steering Wheel
Torx Screw
No.2 Cover
Combination Switch
(w/ Spiral Cable)
Steering Column Lower
Cover
Steering Wheel Pad
ø x 5
No.3 Cover
Cluster Finish Panel
Intermediate Shaft
Steering Column Assembly
Cluster Finish Panel
Center
Brake Pedal Return Spring
Cluster Finish Panel RH
ø x 5
Cluster Finish Panel
LH
Console Panel Upper
Register No.2
Duct
Finish Panel Lower LH
Finish Panel Lower
R11262
