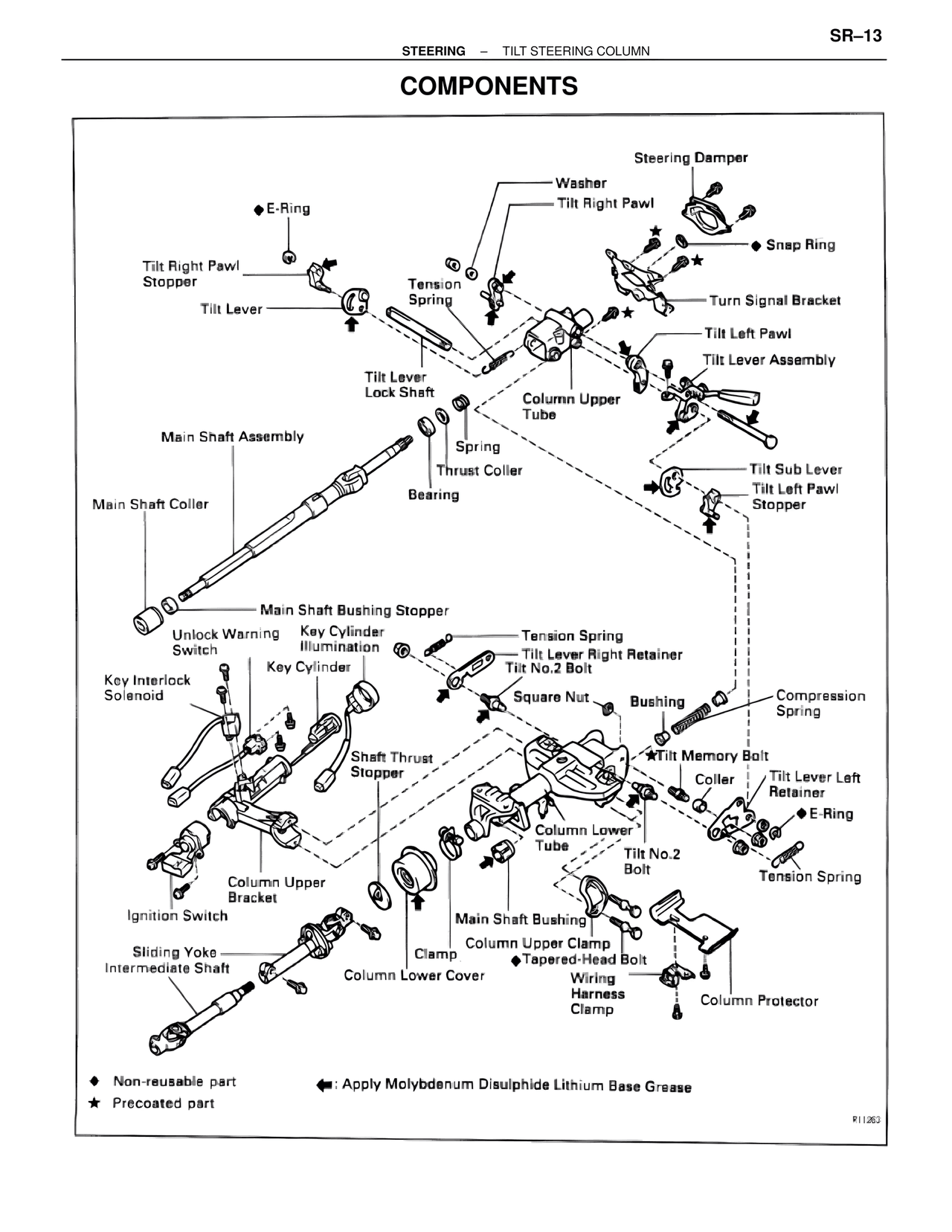

SR–13 STEERING – TILT STEERING COLUMN COMPONENTS Steering Damper Washer Tilt Right Pawl ◆E-Ring Snap Ring Tilt Right Pawl Stopper Tension Spring Turn Signal Bracket Tilt Lever Tilt Left Pawl Tilt Lever Assembly Tilt Lever Lock Shaft Column Upper Tube Main Shaft Assembly Spring Thrust Coller Tilt Sub Lever Bearing Tilt Left Pawl Stopper Main Shaft Coller Main Shaft Bushing Stopper Tension Spring Unlock Warning Switch Key Cylinder Illumination Tilt Lever Right Retainer Key Interlock Solenoid Key Cylinder Tilt No.2 Bolt Square Nut Bushing Compression Spring Shaft Thrust Stopper ★Tilt Memory Bolt Coller Tilt Lever Left Retainer ◆E-Ring Column Lower Tube Tilt No.2 Bolt Tension Spring Column Upper Bracket Ignition Switch Main Shaft Bushing Column Upper Clamp Sliding Yoke Intermediate Shaft Clamp ◆Tapered-Head Bolt Column Lower Cover Wiring Harness Clamp Column Protector ◆ Non-reusable part ★ Precoated part ◀: Apply Molybdenum Disulphide Lithium Base Grease R11263
