STEERING – TILT STEERING COLUMN
Torx Screw Screw Case
R07104
Airbag Wire Harness
Correct Wrong
R07271
R06951
200291
Matchmarks
SST
R11264

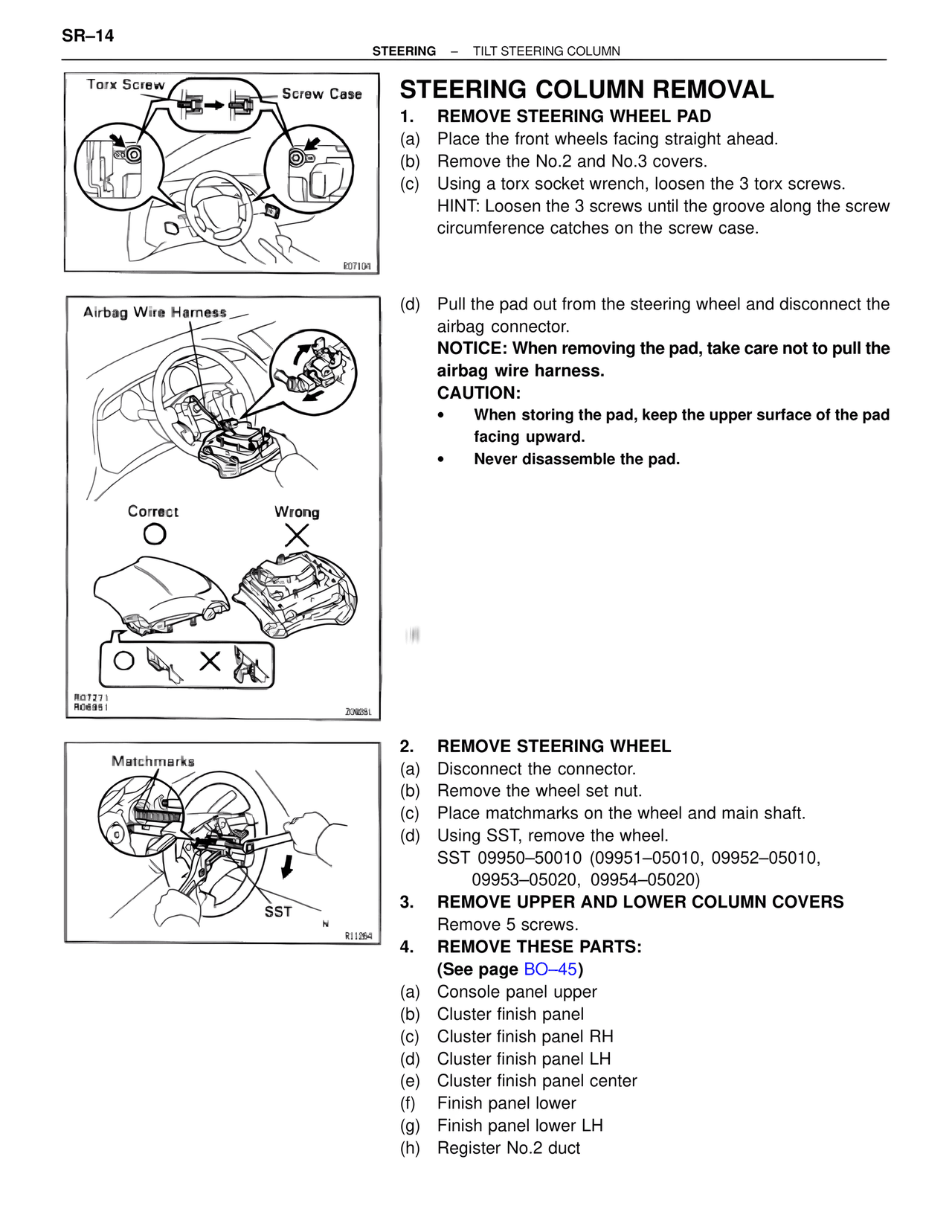

STEERING COLUMN REMOVAL
1. REMOVE STEERING WHEEL PAD
(a) Place the front wheels facing straight ahead.
(b) Remove the No.2 and No.3 covers.
(c) Using a torx socket wrench, loosen the 3 torx screws.
HINT: Loosen the 3 screws until the groove along the screw
circumference catches on the screw case.
(d) Pull the pad out from the steering wheel and disconnect the
airbag connector.
NOTICE: When removing the pad, take care not to pull the
airbag wire harness.
CAUTION:
• When storing the pad, keep the upper surface of the pad
facing upward.
• Never disassemble the pad.
2. REMOVE STEERING WHEEL
(a) Disconnect the connector.
(b) Remove the wheel set nut.
(c) Place matchmarks on the wheel and main shaft.
(d) Using SST, remove the wheel.
SST 09950–50010 (09951–05010, 09952–05010,
09953–05020, 09954–05020)
3. REMOVE UPPER AND LOWER COLUMN COVERS
Remove 5 screws.
4. REMOVE THESE PARTS:
(See page BO–45)
(a) Console panel upper
(b) Cluster finish panel
(c) Cluster finish panel RH
(d) Cluster finish panel LH
(e) Cluster finish panel center
(f) Finish panel lower
(g) Finish panel lower LH
(h) Register No.2 duct
