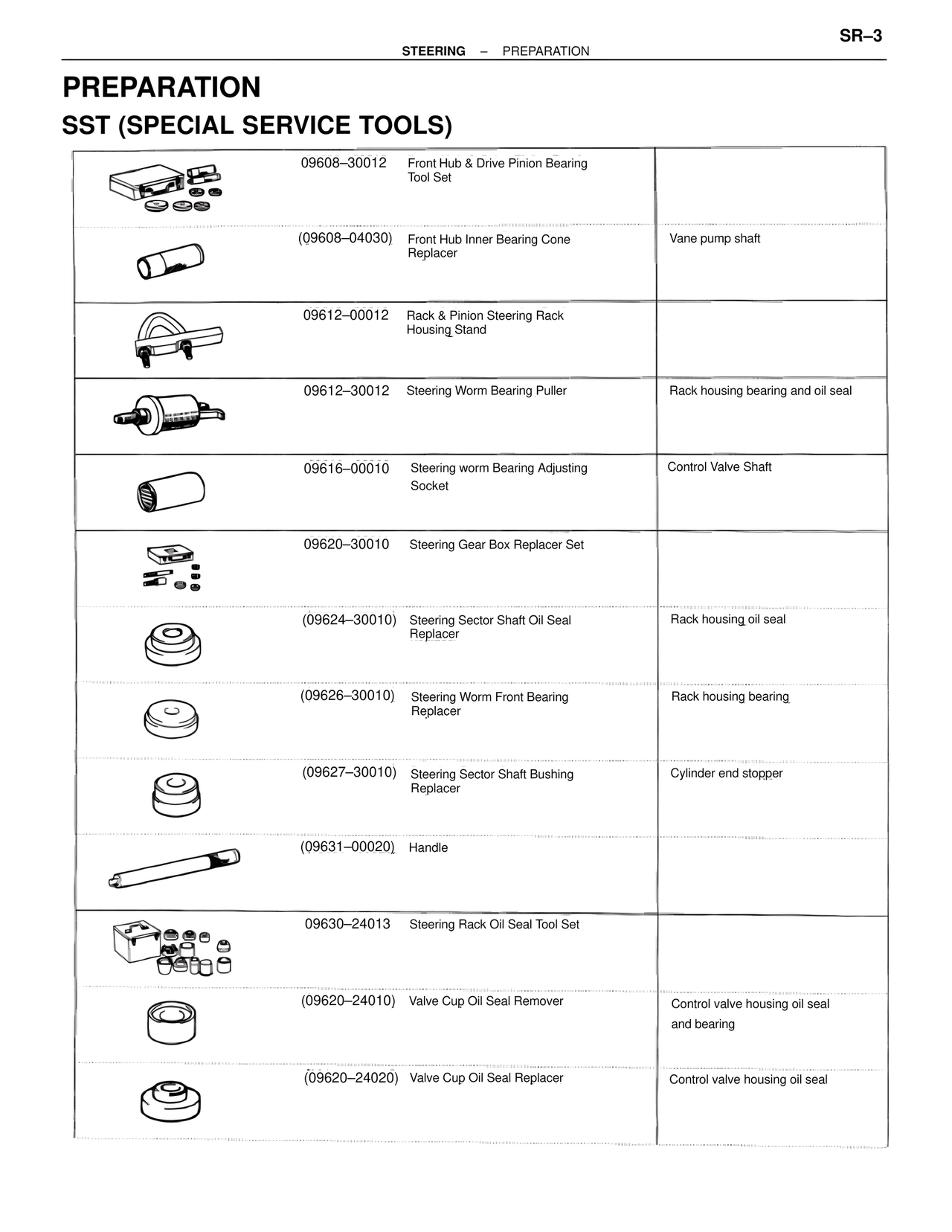

PREPARATION
SST (SPECIAL SERVICE TOOLS)
09608–30012 Front Hub & Drive Pinion Bearing Tool Set
(09608–04030) Front Hub Inner Bearing Cone Replacer Vane pump shaft
09612–00012 Rack & Pinion Steering Rack Housing Stand
09612–30012 Steering Worm Bearing Puller Rack housing bearing and oil seal
09616–00010 Steering worm Bearing Adjusting Socket Control Valve Shaft
09620–30010 Steering Gear Box Replacer Set
(09624–30010) Steering Sector Shaft Oil Seal Replacer Rack housing oil seal
(09626–30010) Steering Worm Front Bearing Replacer Rack housing bearing
(09627–30010) Steering Sector Shaft Bushing Replacer Cylinder end stopper
(09631–00020) Handle
09630–24013 Steering Rack Oil Seal Tool Set
(09620–24010) Valve Cup Oil Seal Remover Control valve housing oil seal and bearing
(09620–24020) Valve Cup Oil Seal Replacer Control valve housing oil seal
