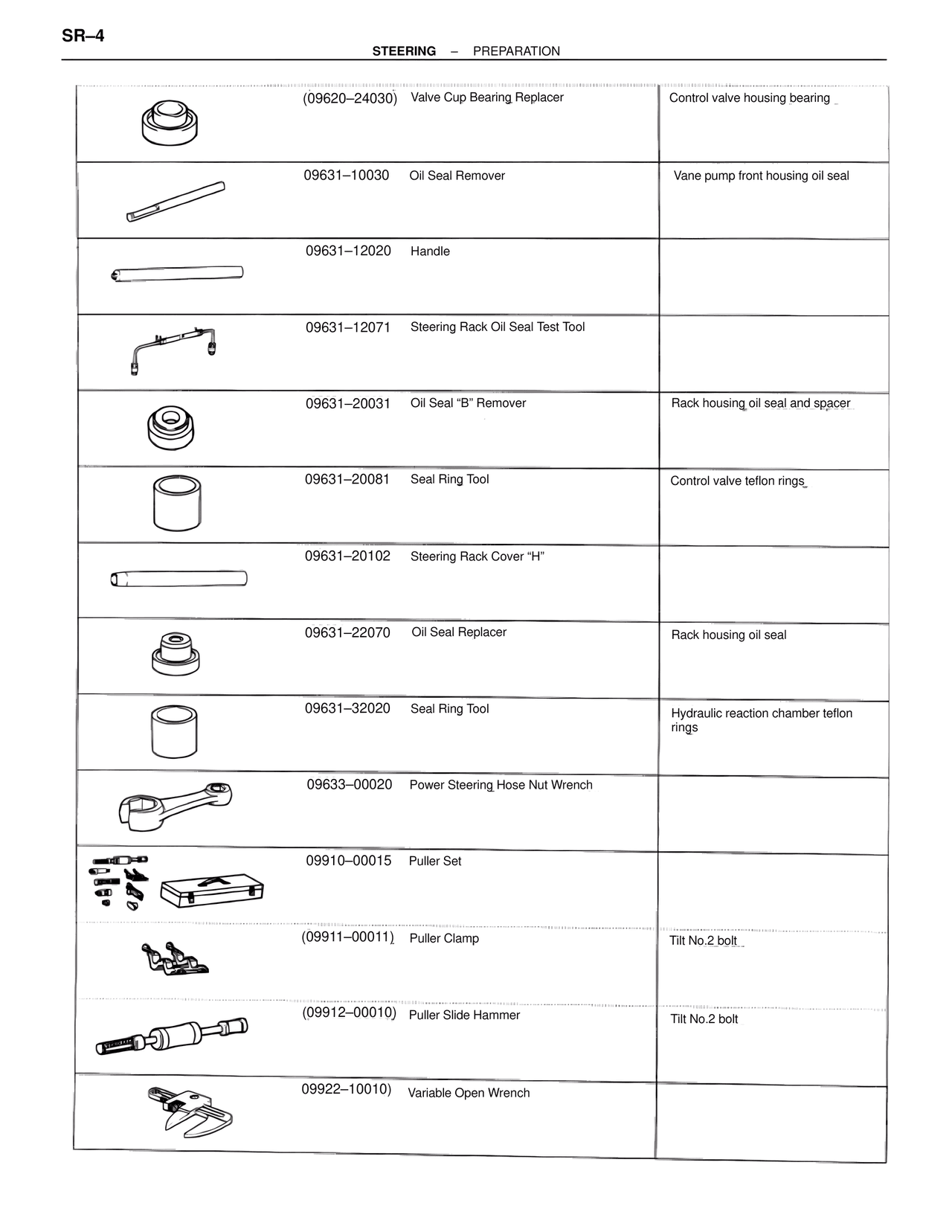

SR–4
STEERING – PREPARATION
(09620–24030) Valve Cup Bearing Replacer Control valve housing bearing
09631–10030 Oil Seal Remover Vane pump front housing oil seal
09631–12020 Handle
09631–12071 Steering Rack Oil Seal Test Tool
09631–20031 Oil Seal "B" Remover Rack housing oil seal and spacer
09631–20081 Seal Ring Tool Control valve teflon rings
09631–20102 Steering Rack Cover "H"
09631–22070 Oil Seal Replacer Rack housing oil seal
09631–32020 Seal Ring Tool Hydraulic reaction chamber teflon rings
09633–00020 Power Steering Hose Nut Wrench
09910–00015 Puller Set
(09911–00011) Puller Clamp Tilt No.2 bolt
(09912–00010) Puller Slide Hammer Tilt No.2 bolt
09922–10010 Variable Open Wrench
