SR–34
STEERING – POWER STEERING GEAR

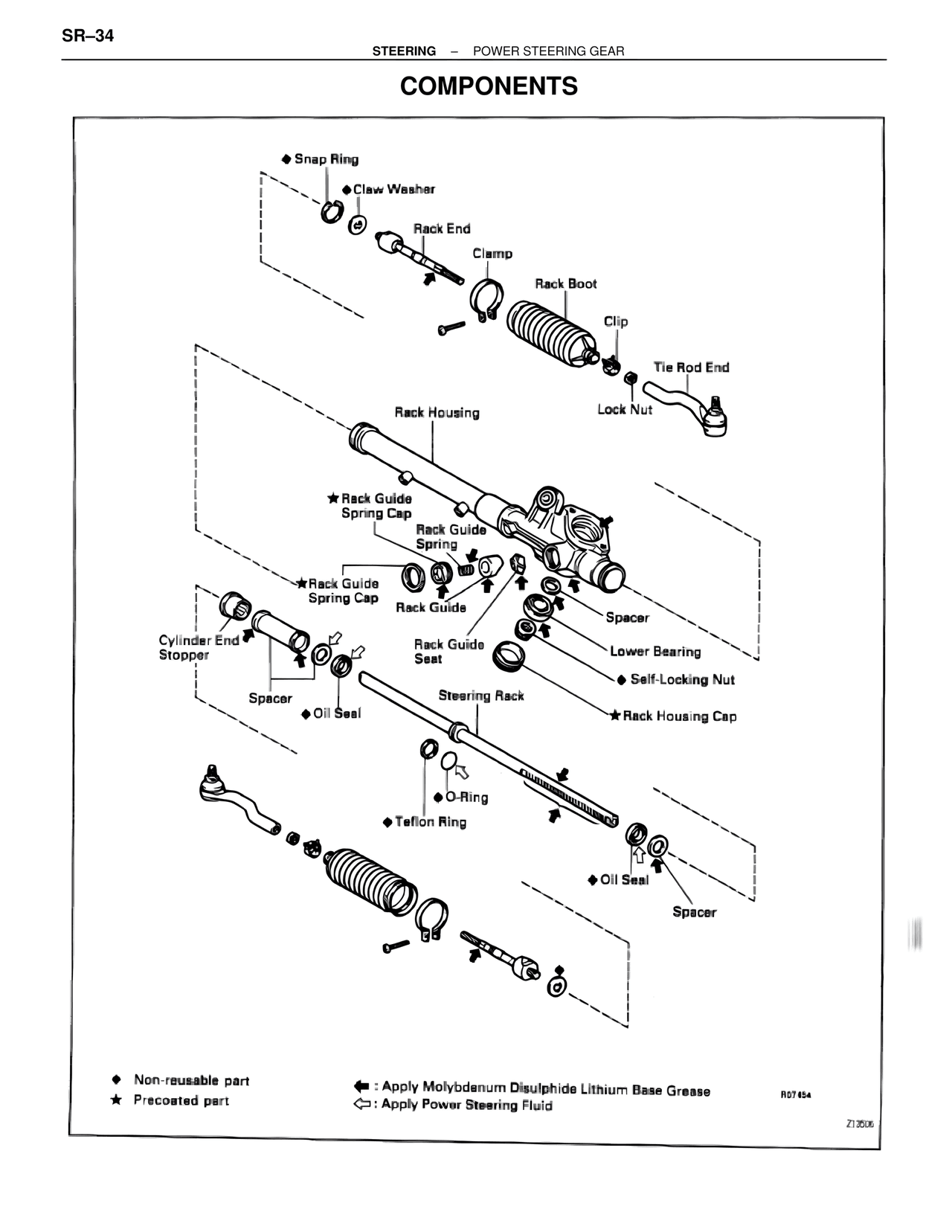

COMPONENTS
Snap Ring
Claw Washer
Rack End
Clamp
Rack Boot
Clip
Tie Rod End
Lock Nut
Rack Housing
Rack Guide Spring Cap
Rack Guide Spring
Rack Guide Spring Cap
Rack Guide
Rack Guide Seat
Cylinder End Stopper
Spacer
Oil Seal
Steering Rack
Spacer
Lower Bearing
Self-Locking Nut
Rack Housing Cap
O-Ring
Teflon Ring
Oil Seal
Spacer
♦ Non-reusable part
★ Precoated part
♦ : Apply Molybdenum Disulphide Lithium Base Grease
⇦: Apply Power Steering Fluid
R07454
Z13506
