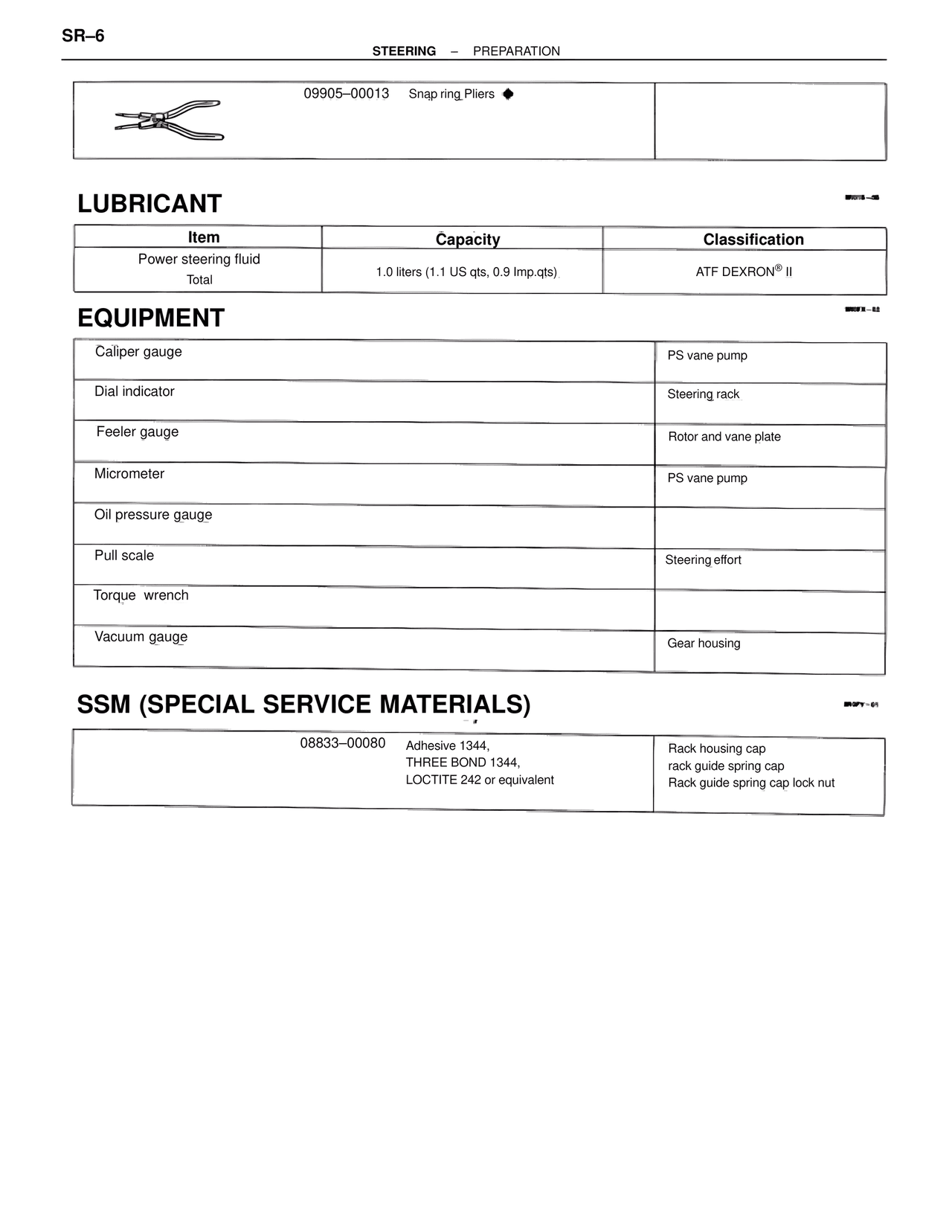

SR–6
STEERING – PREPARATION
09905–00013 Snap ring Pliers ◆
LUBRICANT
Item Capacity Classification
Power steering fluid
Total 1.0 liters (1.1 US qts, 0.9 Imp.qts) ATF DEXRON® II
EQUIPMENT
Caliper gauge PS vane pump
Dial indicator Steering rack
Feeler gauge Rotor and vane plate
Micrometer PS vane pump
Oil pressure gauge
Pull scale Steering effort
Torque wrench
Vacuum gauge Gear housing
SSM (SPECIAL SERVICE MATERIALS)
08833–00080 Adhesive 1344, Rack housing cap
THREE BOND 1344, rack guide spring cap
LOCTITE 242 or equivalent Rack guide spring cap lock nut
