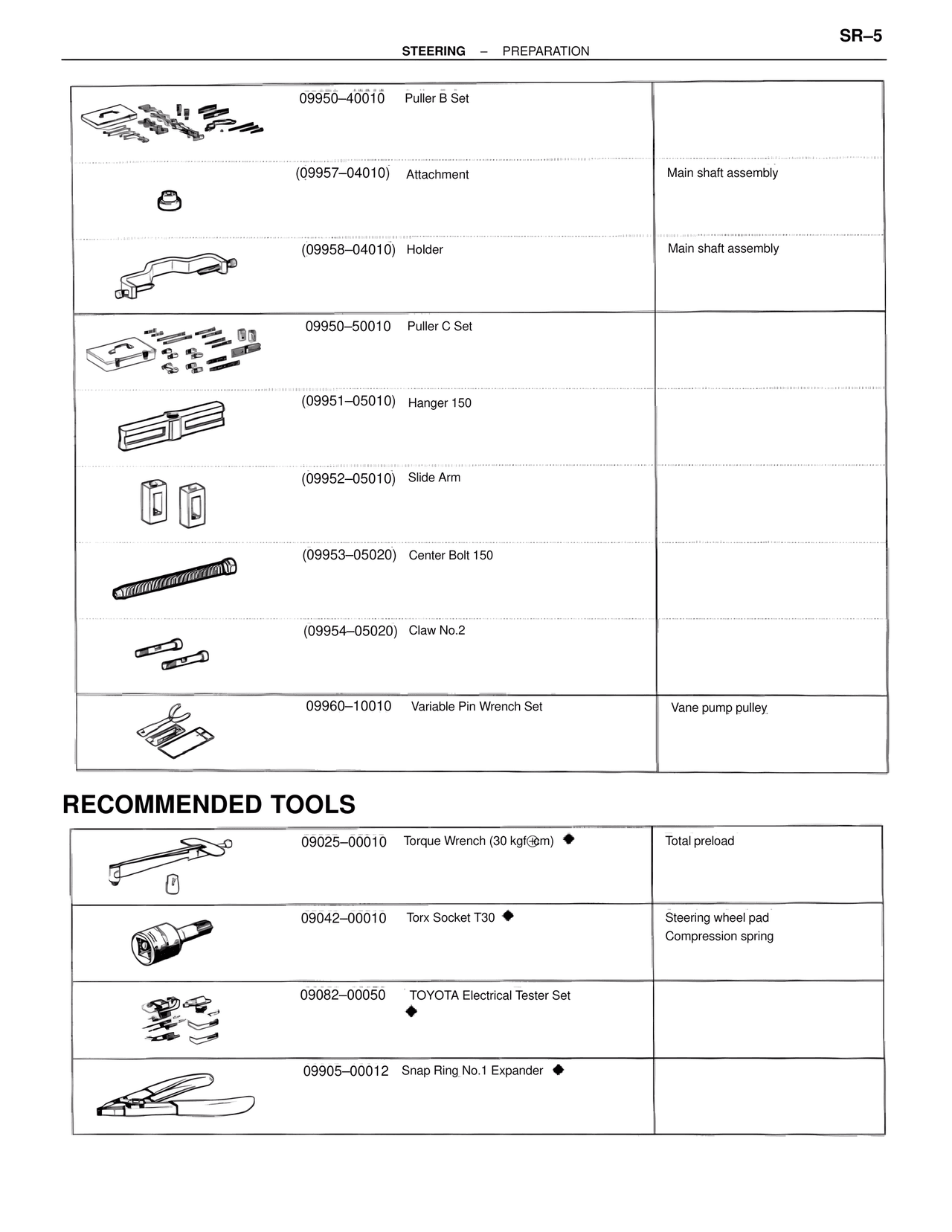

SR–5
STEERING – PREPARATION
09950–40010 Puller B Set
(09957–04010) Attachment Main shaft assembly
(09958–04010) Holder Main shaft assembly
09950–50010 Puller C Set
(09951–05010) Hanger 150
(09952–05010) Slide Arm
(09953–05020) Center Bolt 150
(09954–05020) Claw No.2
09960–10010 Variable Pin Wrench Set Vane pump pulley
RECOMMENDED TOOLS
09025–00010 Torque Wrench (30 kgf⊕m) ◆ Total preload
09042–00010 Torx Socket T30 ◆ Steering wheel pad
Compression spring
09082–00050 TOYOTA Electrical Tester Set
◆
09905–00012 Snap Ring No.1 Expander ◆
