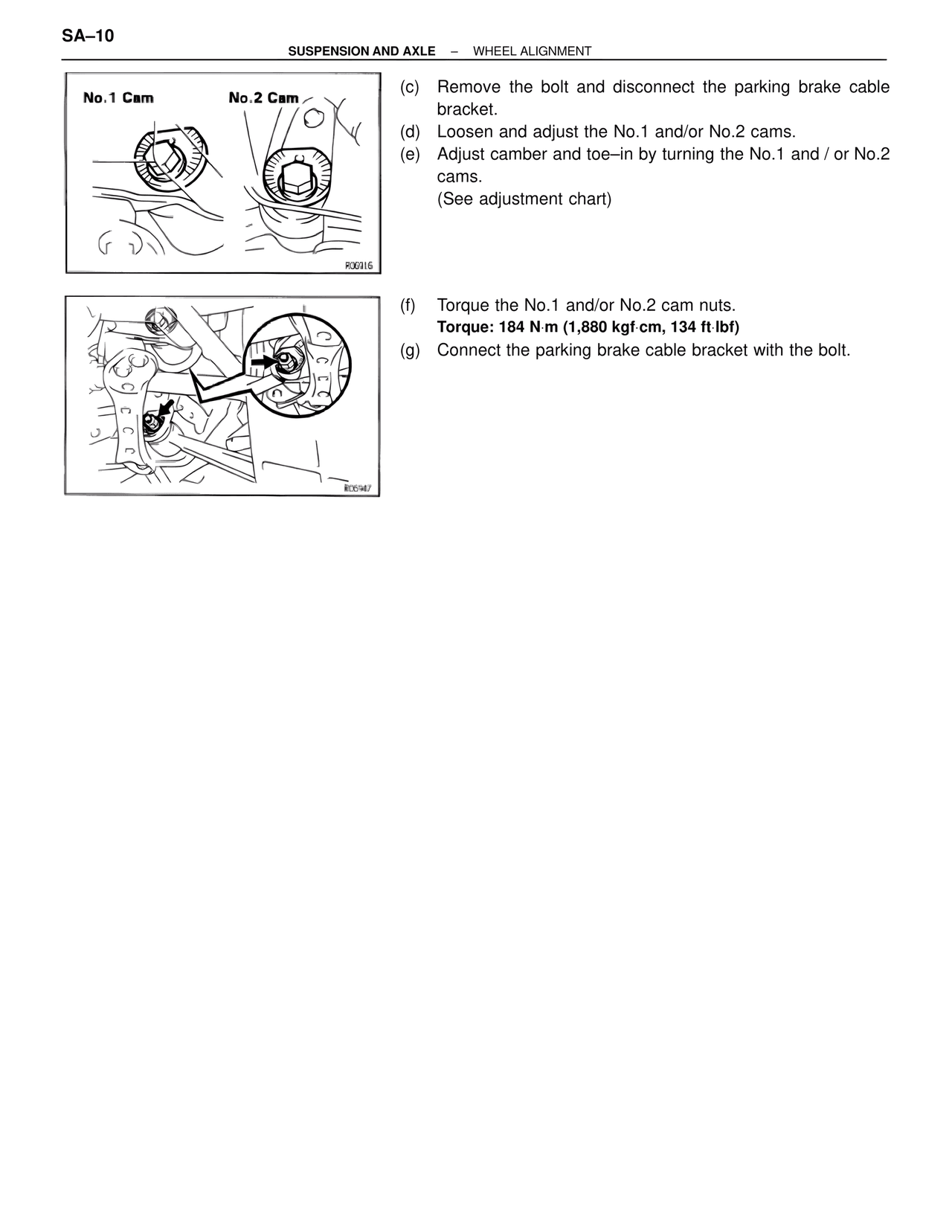

SA–10 SUSPENSION AND AXLE – WHEEL ALIGNMENT No.1 Cam No.2 Cam R06916 (c) Remove the bolt and disconnect the parking brake cable bracket. (d) Loosen and adjust the No.1 and/or No.2 cams. (e) Adjust camber and toe–in by turning the No.1 and / or No.2 cams. (See adjustment chart) R06947 (f) Torque the No.1 and/or No.2 cam nuts. Torque: 184 N·m (1,880 kgf·cm, 134 ft·lbf) (g) Connect the parking brake cable bracket with the bolt.
