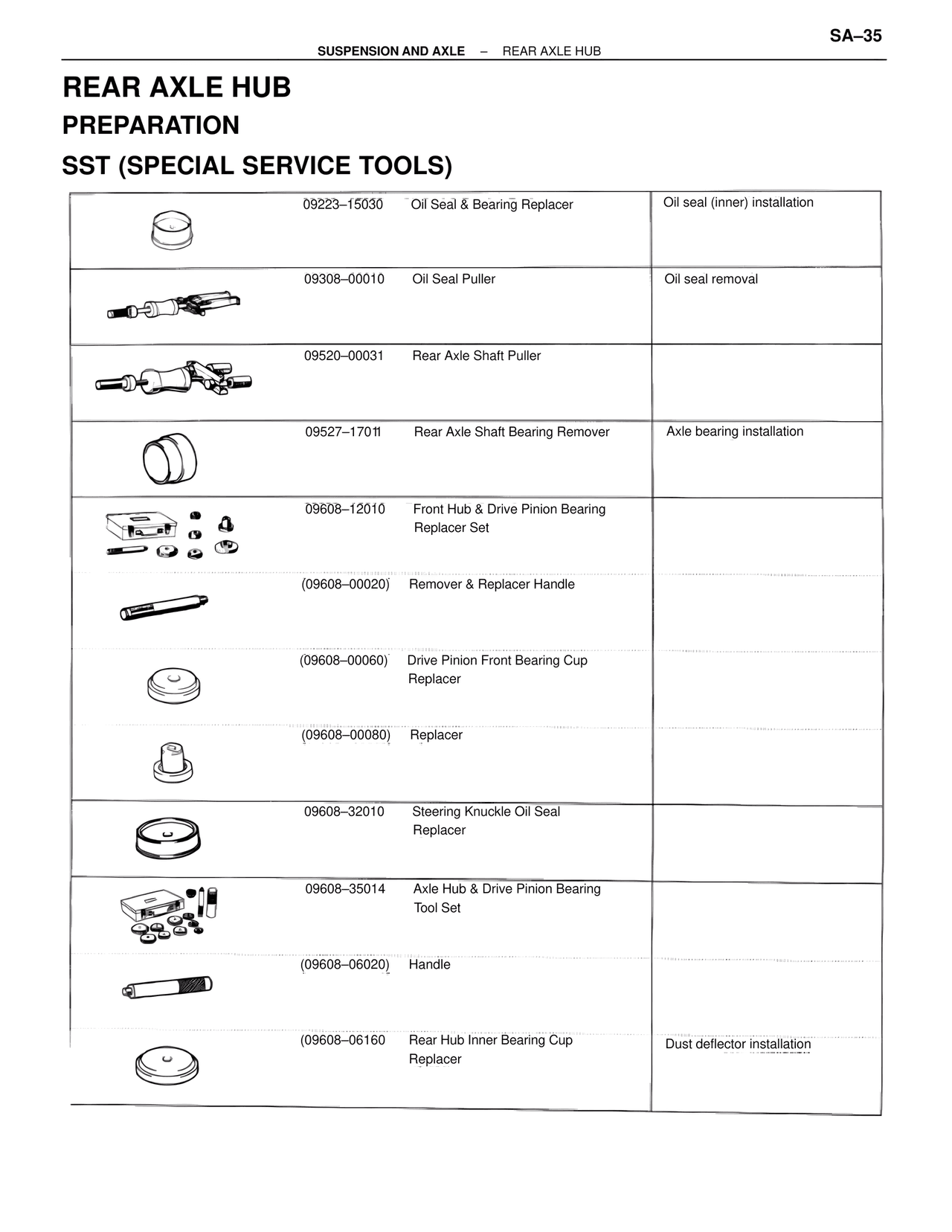

REAR AXLE HUB PREPARATION SST (SPECIAL SERVICE TOOLS) — MK4 Supra Suspension & Axle, page 35
100%
REAR AXLE HUB PREPARATION SST (SPECIAL SERVICE TOOLS) 09223–15030 Oil Seal & Bearing Replacer Oil seal (inner) installation 09308–00010 Oil Seal Puller Oil seal removal 09520–00031 Rear Axle Shaft Puller 09527–17011 Rear Axle Shaft Bearing Remover Axle bearing installation 09608–12010 Front Hub & Drive Pinion Bearing Replacer Set (09608–00020) Remover & Replacer Handle (09608–00060) Drive Pinion Front Bearing Cup Replacer (09608–00080) Replacer 09608–32010 Steering Knuckle Oil Seal Replacer 09608–35014 Axle Hub & Drive Pinion Bearing Tool Set (09608–06020) Handle (09608–06160) Rear Hub Inner Bearing Cup Replacer Dust deflector installation
