SA–34
SUSPENSION AND AXLE – FRONT SUSPENSION

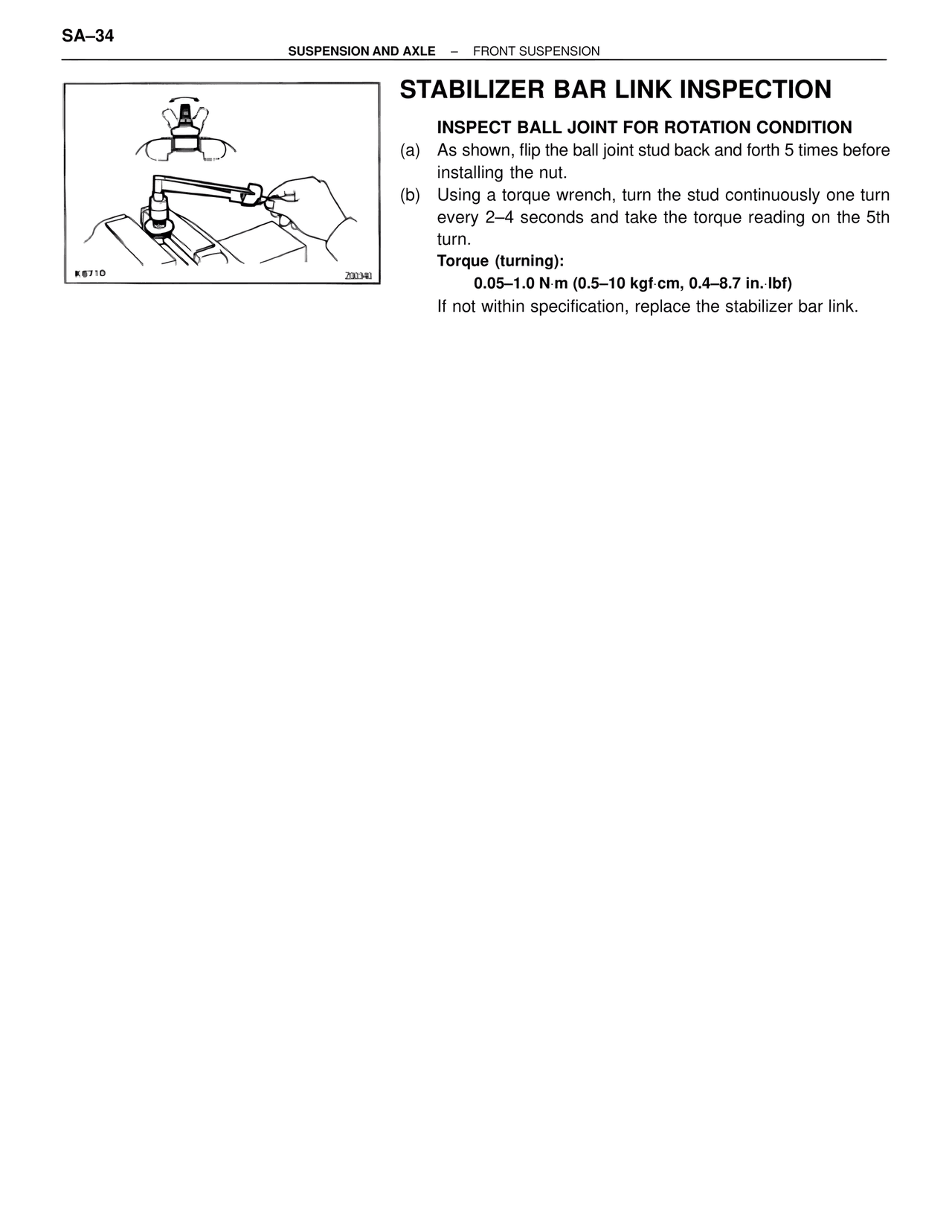

STABILIZER BAR LINK INSPECTION
INSPECT BALL JOINT FOR ROTATION CONDITION
(a) As shown, flip the ball joint stud back and forth 5 times before
installing the nut.
(b) Using a torque wrench, turn the stud continuously one turn
every 2–4 seconds and take the torque reading on the 5th
turn.
Torque (turning):
0.05–1.0 N·m (0.5–10 kgf·cm, 0.4–8.7 in.·lbf)
If not within specification, replace the stabilizer bar link.
K6710
200340
