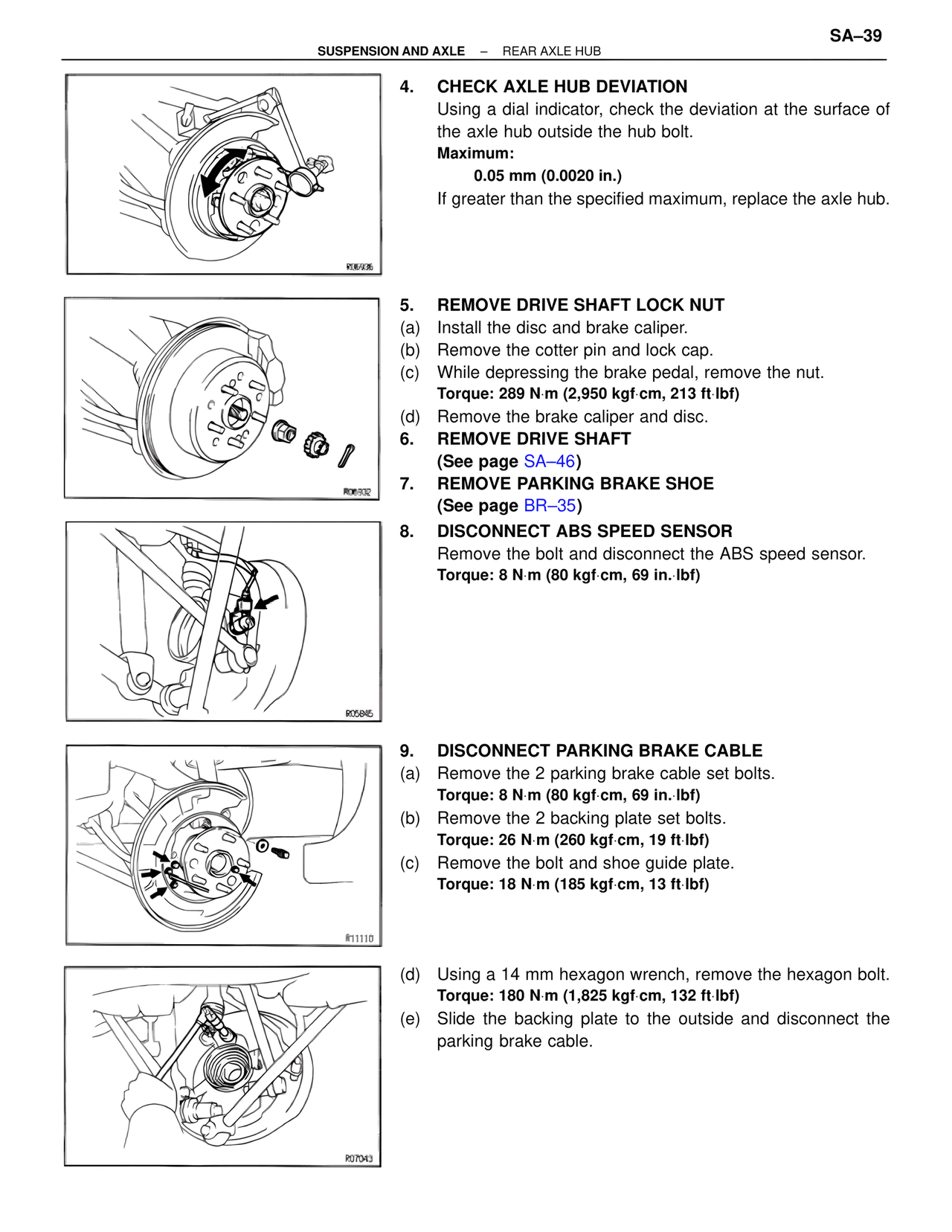

SUSPENSION AND AXLE – REAR AXLE HUB
4. CHECK AXLE HUB DEVIATION
Using a dial indicator, check the deviation at the surface of
the axle hub outside the hub bolt.
Maximum:
0.05 mm (0.0020 in.)
If greater than the specified maximum, replace the axle hub.
R06936
5. REMOVE DRIVE SHAFT LOCK NUT
(a) Install the disc and brake caliper.
(b) Remove the cotter pin and lock cap.
(c) While depressing the brake pedal, remove the nut.
Torque: 289 N·m (2,950 kgf·cm, 213 ft·lbf)
(d) Remove the brake caliper and disc.
6. REMOVE DRIVE SHAFT
(See page SA–46)
7. REMOVE PARKING BRAKE SHOE
(See page BR–35)
8. DISCONNECT ABS SPEED SENSOR
Remove the bolt and disconnect the ABS speed sensor.
Torque: 8 N·m (80 kgf·cm, 69 in.·lbf)
R06932
R05845
9. DISCONNECT PARKING BRAKE CABLE
(a) Remove the 2 parking brake cable set bolts.
Torque: 8 N·m (80 kgf·cm, 69 in.·lbf)
(b) Remove the 2 backing plate set bolts.
Torque: 26 N·m (260 kgf·cm, 19 ft·lbf)
(c) Remove the bolt and shoe guide plate.
Torque: 18 N·m (185 kgf·cm, 13 ft·lbf)
R11110
(d) Using a 14 mm hexagon wrench, remove the hexagon bolt.
Torque: 180 N·m (1,825 kgf·cm, 132 ft·lbf)
(e) Slide the backing plate to the outside and disconnect the
parking brake cable.
R07043
