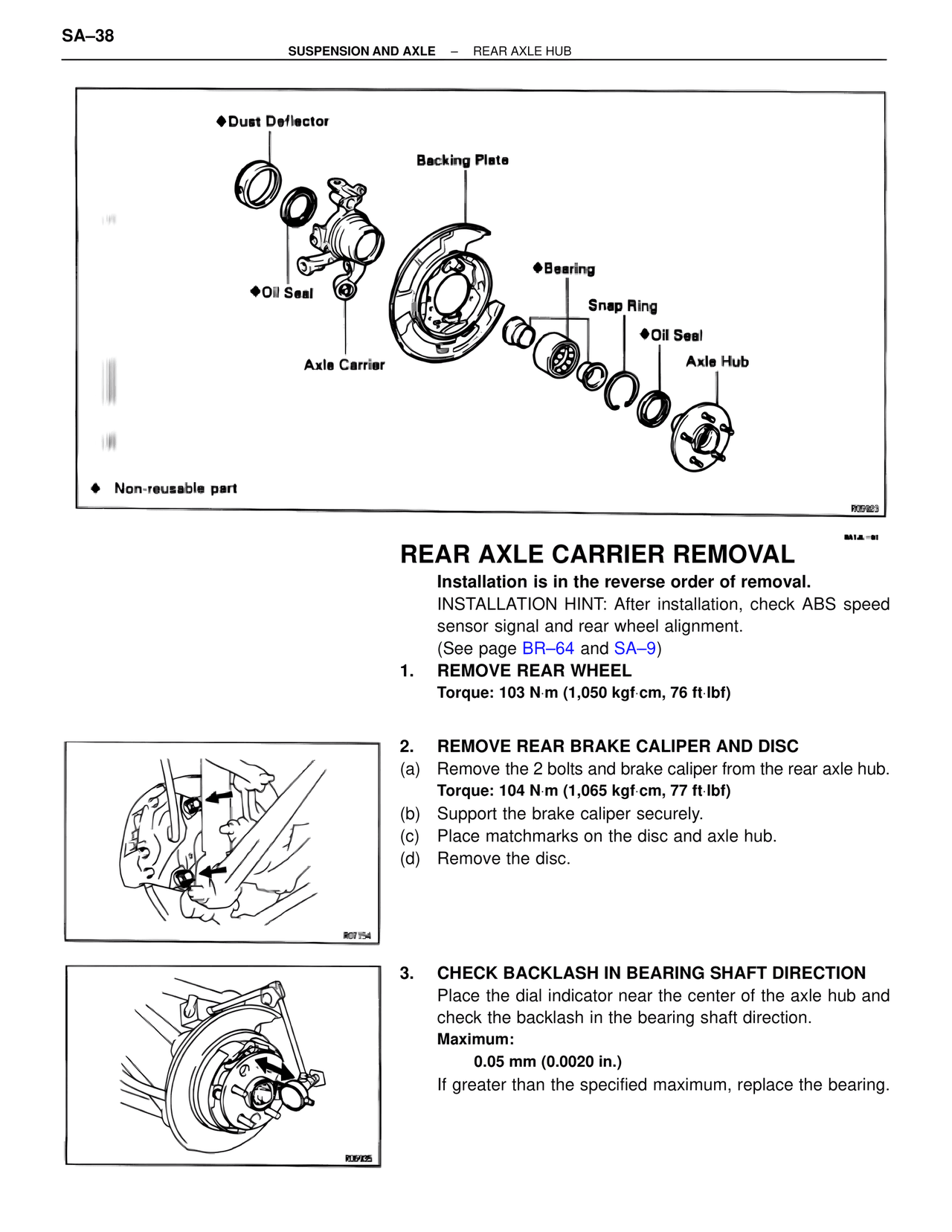

SA–38
SUSPENSION AND AXLE – REAR AXLE HUB
♦Dust Deflector
Backing Plate
♦Bearing
Snap Ring
♦Oil Seal
♦Oil Seal
Axle Hub
Axle Carrier
♦ Non-reusable part
R05923
SA-1-01
REAR AXLE CARRIER REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, check ABS speed
sensor signal and rear wheel alignment.
(See page BR–64 and SA–9)
1. REMOVE REAR WHEEL
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)
2. REMOVE REAR BRAKE CALIPER AND DISC
(a) Remove the 2 bolts and brake caliper from the rear axle hub.
Torque: 104 N·m (1,065 kgf·cm, 77 ft·lbf)
(b) Support the brake caliper securely.
(c) Place matchmarks on the disc and axle hub.
(d) Remove the disc.
R02154
3. CHECK BACKLASH IN BEARING SHAFT DIRECTION
Place the dial indicator near the center of the axle hub and
check the backlash in the bearing shaft direction.
Maximum:
0.05 mm (0.0020 in.)
If greater than the specified maximum, replace the bearing.
R05035
