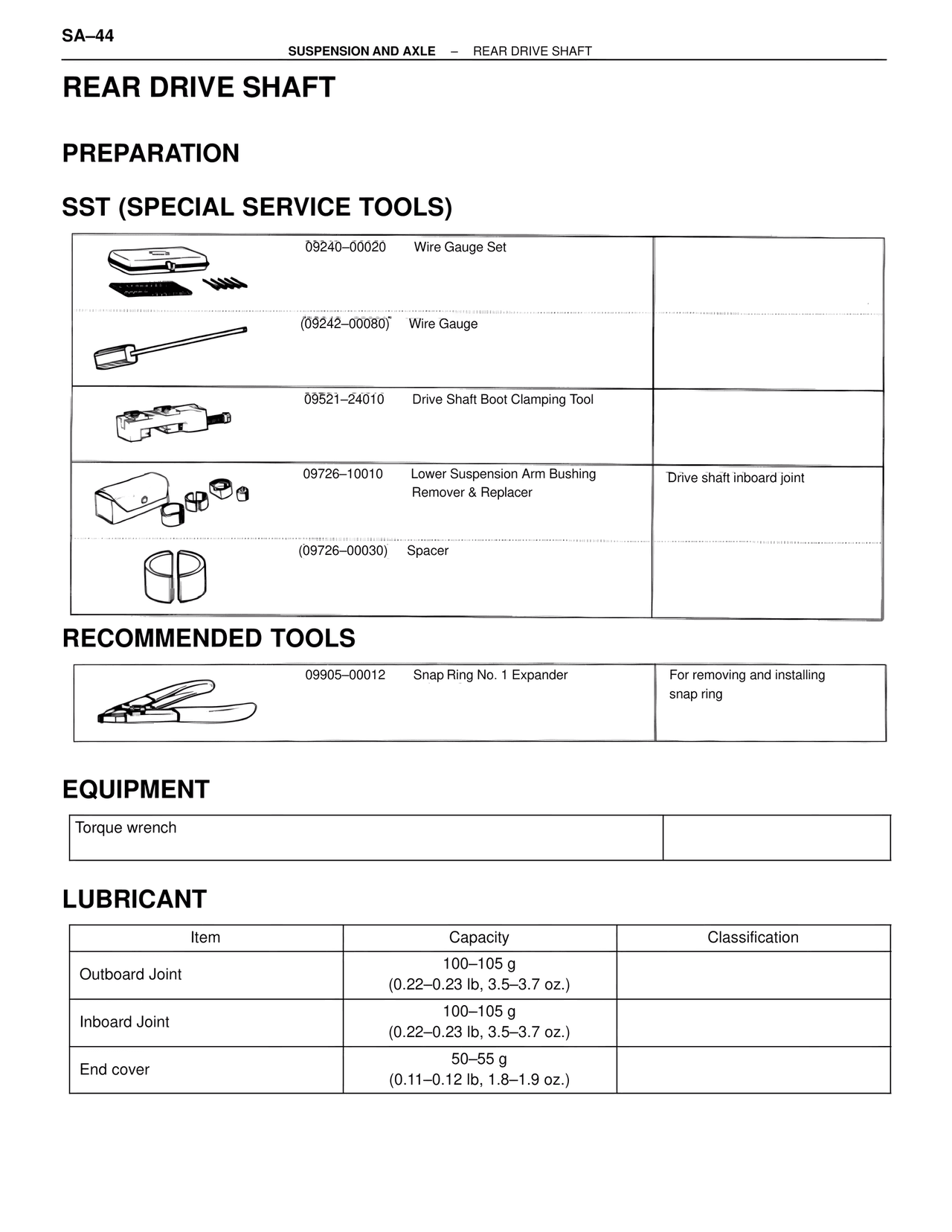

SA/Suspension & Axle — Rear Drive Shaft, page 44

SA–44
SUSPENSION AND AXLE – REAR DRIVE SHAFT

REAR DRIVE SHAFT

PREPARATION

SST (SPECIAL SERVICE TOOLS)

09240–00020    Wire Gauge Set

(09242–00080)    Wire Gauge

09521–24010    Drive Shaft Boot Clamping Tool

09726–10010    Lower Suspension Arm Bushing Remover & Replacer    Drive shaft inboard joint

(09726–00030)    Spacer

RECOMMENDED TOOLS

09905–00012    Snap Ring No. 1 Expander    For removing and installing snap ring

EQUIPMENT

Torque wrench

LUBRICANT

Item    Capacity    Classification

Outboard Joint    100–105 g
(0.22–0.23 lb, 3.5–3.7 oz.)

Inboard Joint    100–105 g
(0.22–0.23 lb, 3.5–3.7 oz.)

End cover    50–55 g
(0.11–0.12 lb, 1.8–1.9 oz.)
