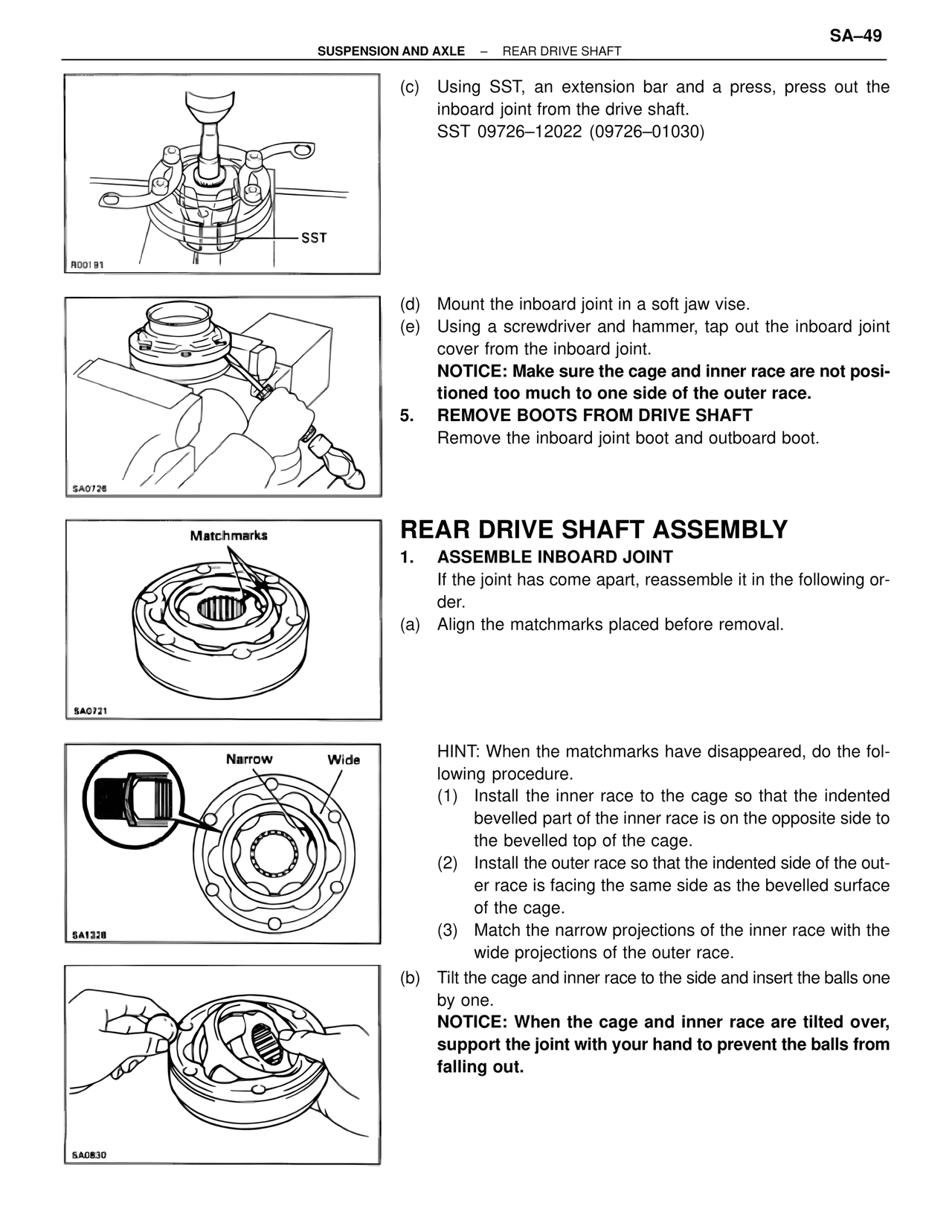

SA-49 SUSPENSION AND AXLE — REAR DRIVE SHAFT (c) Using SST, an extension bar and a press, press out the inboard joint from the drive shaft. SST 09726–12022 (09726–01030) SST R00191 (d) Mount the inboard joint in a soft jaw vise. (e) Using a screwdriver and hammer, tap out the inboard joint cover from the inboard joint. NOTICE: Make sure the cage and inner race are not posi- tioned too much to one side of the outer race. 5. REMOVE BOOTS FROM DRIVE SHAFT Remove the inboard joint boot and outboard boot. SA0726 Matchmarks SA0721 REAR DRIVE SHAFT ASSEMBLY 1. ASSEMBLE INBOARD JOINT If the joint has come apart, reassemble it in the following or- der. (a) Align the matchmarks placed before removal. Narrow Wide SA1328 HINT: When the matchmarks have disappeared, do the fol- lowing procedure. (1) Install the inner race to the cage so that the indented bevelled part of the inner race is on the opposite side to the bevelled top of the cage. (2) Install the outer race so that the indented side of the out- er race is facing the same side as the bevelled surface of the cage. (3) Match the narrow projections of the inner race with the wide projections of the outer race. (b) Tilt the cage and inner race to the side and insert the balls one by one. NOTICE: When the cage and inner race are tilted over, support the joint with your hand to prevent the balls from falling out. SA0830
