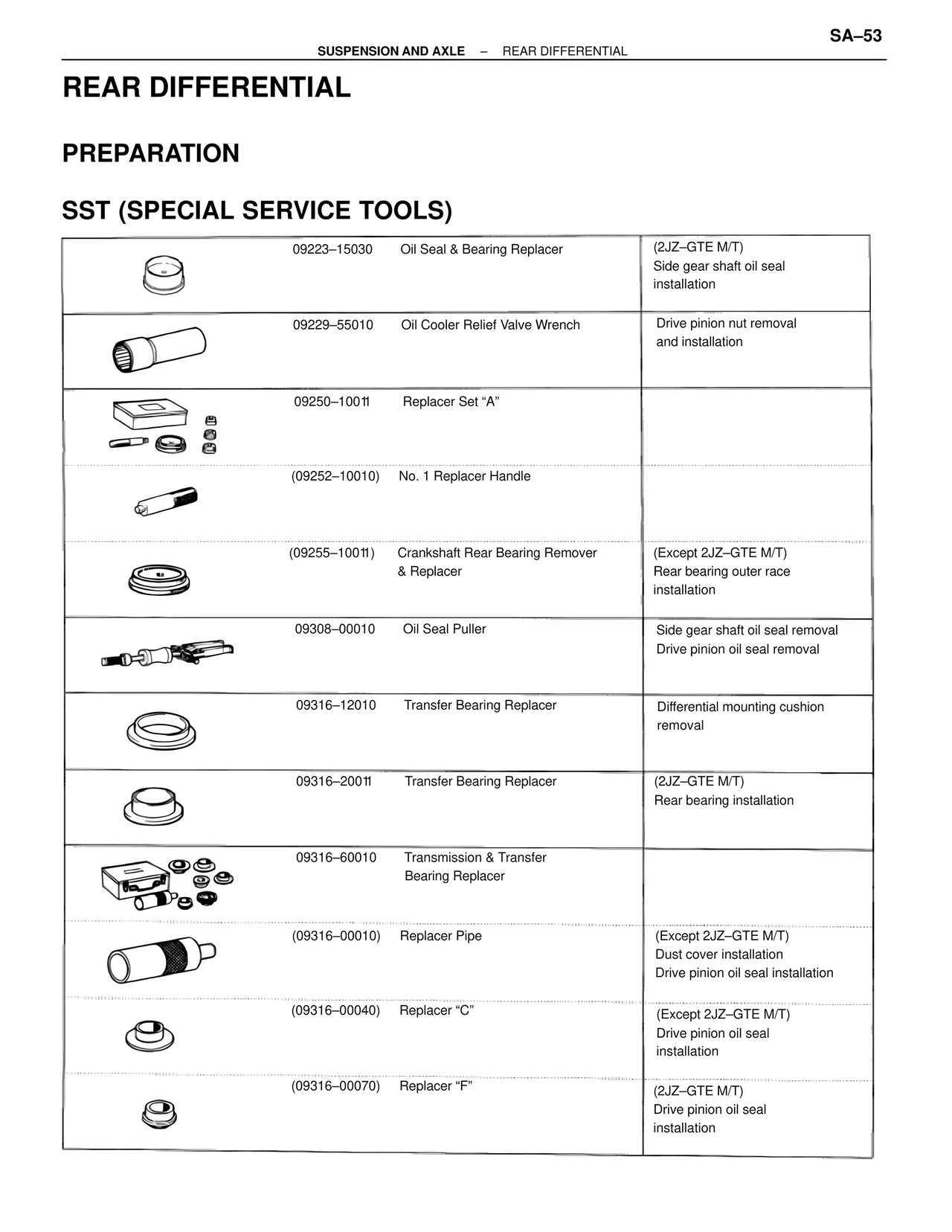

REAR DIFFERENTIAL
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09223–15030 Oil Seal & Bearing Replacer (2JZ–GTE M/T)
Side gear shaft oil seal
installation
09229–55010 Oil Cooler Relief Valve Wrench Drive pinion nut removal
and installation
09250–10011 Replacer Set "A"
(09252–10010) No. 1 Replacer Handle
(09255–10011) Crankshaft Rear Bearing Remover
& Replacer (Except 2JZ–GTE M/T)
Rear bearing outer race
installation
09308–00010 Oil Seal Puller Side gear shaft oil seal removal
Drive pinion oil seal removal
09316–12010 Transfer Bearing Replacer Differential mounting cushion
removal
09316–20011 Transfer Bearing Replacer (2JZ–GTE M/T)
Rear bearing installation
09316–60010 Transmission & Transfer
Bearing Replacer
(09316–00010) Replacer Pipe (Except 2JZ–GTE M/T)
Dust cover installation
Drive pinion oil seal installation
(09316–00040) Replacer "C" (Except 2JZ–GTE M/T)
Drive pinion oil seal
installation
(09316–00070) Replacer "F" (2JZ–GTE M/T)
Drive pinion oil seal
installation
