SUSPENSION AND AXLE — REAR DIFFERENTIAL — MK4 Supra Suspension & Axle, page 54
100%

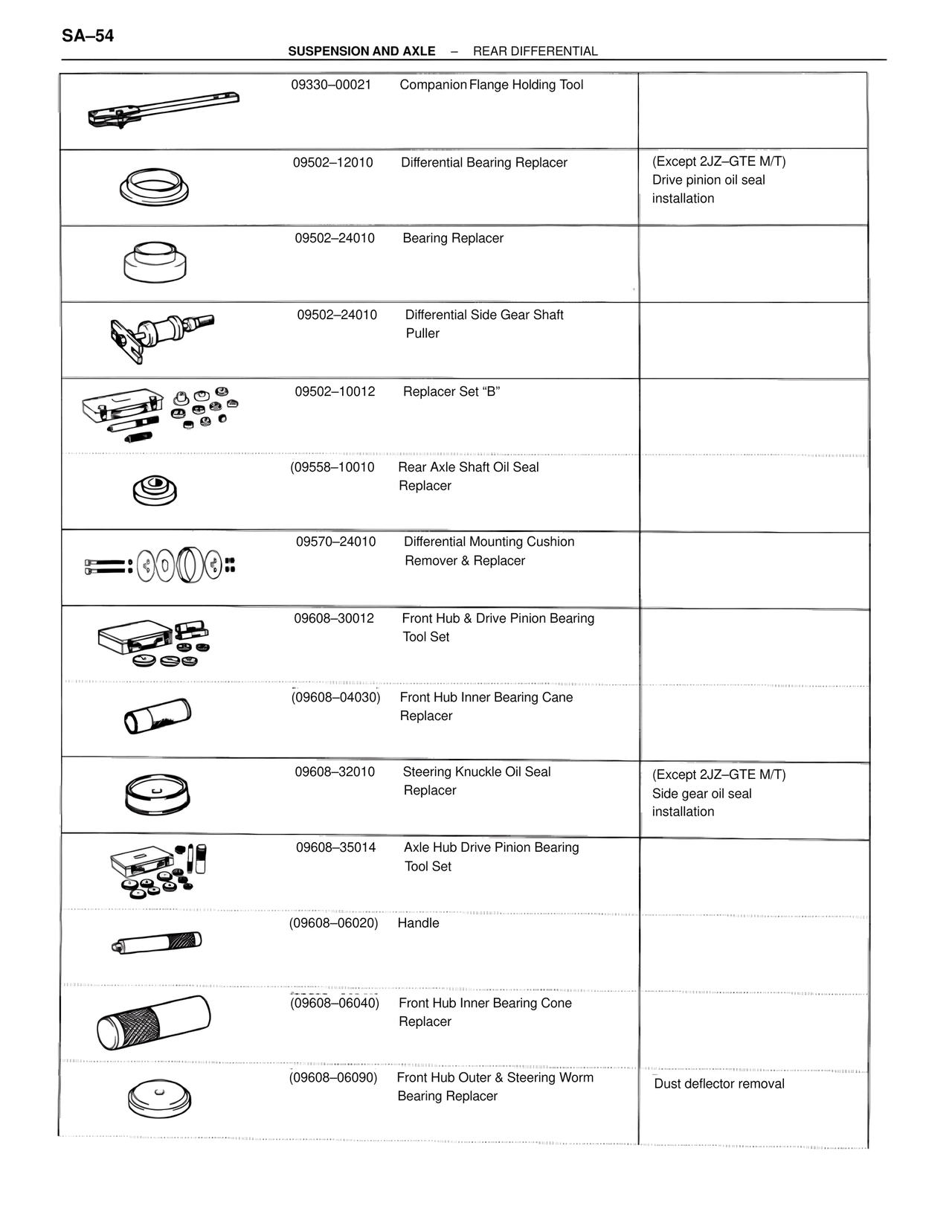

SA–54 SUSPENSION AND AXLE – REAR DIFFERENTIAL 09330–00021 Companion Flange Holding Tool 09502–12010 Differential Bearing Replacer (Except 2JZ–GTE M/T) Drive pinion oil seal installation 09502–24010 Bearing Replacer 09502–24010 Differential Side Gear Shaft Puller 09502–10012 Replacer Set "B" (09558–10010) Rear Axle Shaft Oil Seal Replacer 09570–24010 Differential Mounting Cushion Remover & Replacer 09608–30012 Front Hub & Drive Pinion Bearing Tool Set (09608–04030) Front Hub Inner Bearing Cane Replacer 09608–32010 Steering Knuckle Oil Seal (Except 2JZ–GTE M/T) Replacer Side gear oil seal installation 09608–35014 Axle Hub Drive Pinion Bearing Tool Set (09608–06020) Handle (09608–06040) Front Hub Inner Bearing Cone Replacer (09608–06090) Front Hub Outer & Steering Worm Dust deflector removal Bearing Replacer
