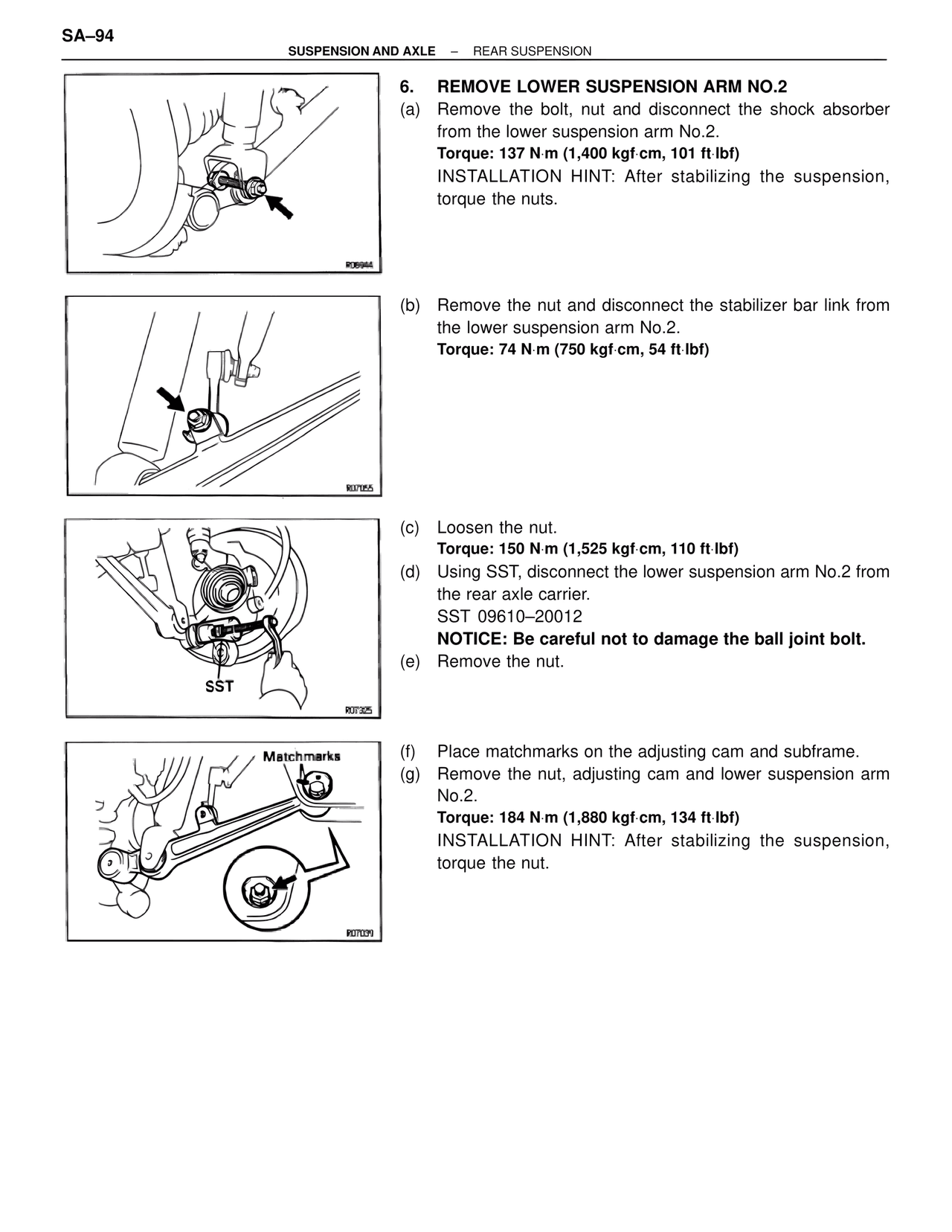

SUSPENSION AND AXLE – REAR SUSPENSION
6. REMOVE LOWER SUSPENSION ARM NO.2
(a) Remove the bolt, nut and disconnect the shock absorber
from the lower suspension arm No.2.
Torque: 137 N·m (1,400 kgf·cm, 101 ft·lbf)
INSTALLATION HINT: After stabilizing the suspension,
torque the nuts.
(b) Remove the nut and disconnect the stabilizer bar link from
the lower suspension arm No.2.
Torque: 74 N·m (750 kgf·cm, 54 ft·lbf)
(c) Loosen the nut.
Torque: 150 N·m (1,525 kgf·cm, 110 ft·lbf)
(d) Using SST, disconnect the lower suspension arm No.2 from
the rear axle carrier.
SST 09610–20012
NOTICE: Be careful not to damage the ball joint bolt.
(e) Remove the nut.
Matchmarks
(f) Place matchmarks on the adjusting cam and subframe.
(g) Remove the nut, adjusting cam and lower suspension arm
No.2.
Torque: 184 N·m (1,880 kgf·cm, 134 ft·lbf)
INSTALLATION HINT: After stabilizing the suspension,
torque the nut.
