SUSPENSION AND AXLE – REAR SUSPENSION
SA–97
Tail Pipe Center Pipe
R07040
R07041

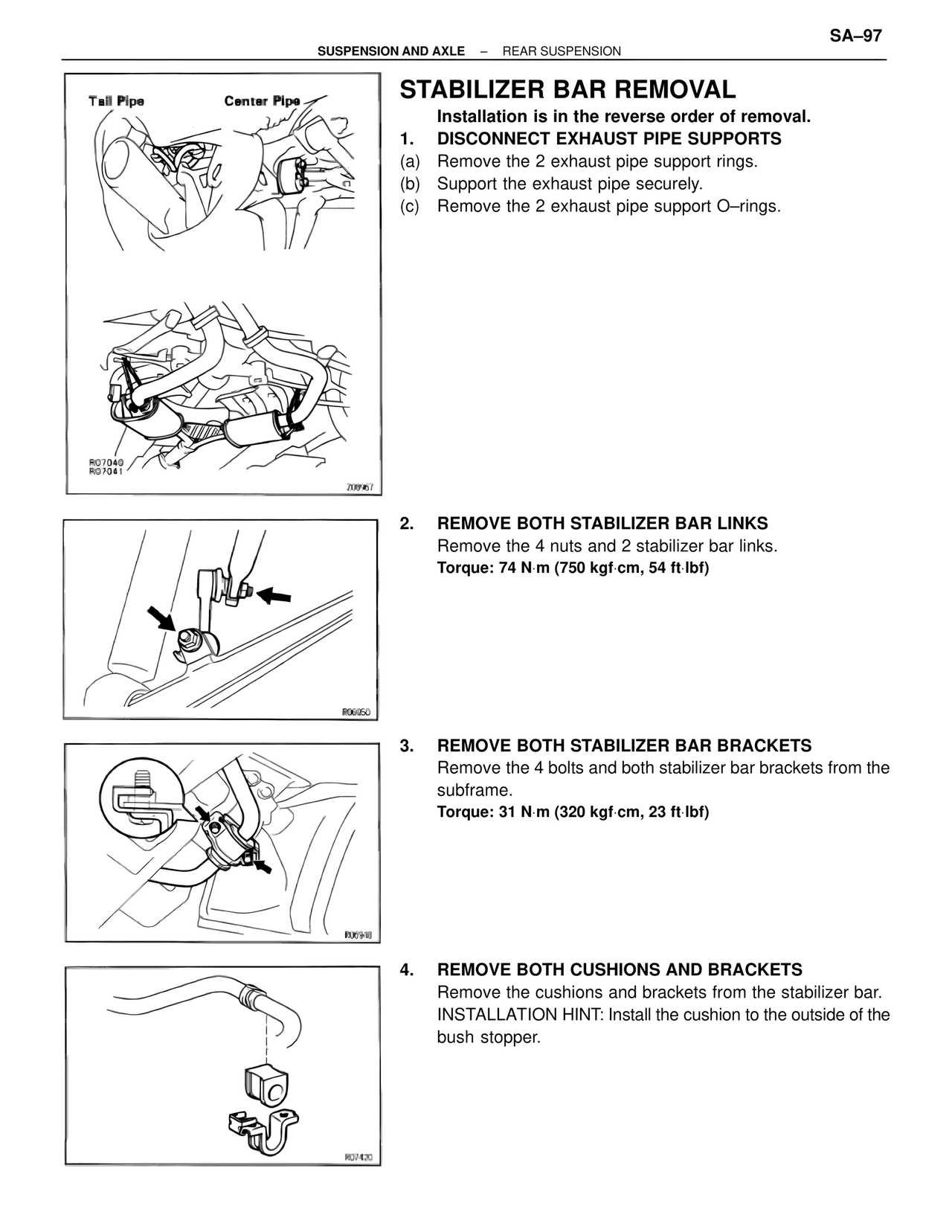

STABILIZER BAR REMOVAL
Installation is in the reverse order of removal.
1. DISCONNECT EXHAUST PIPE SUPPORTS
(a) Remove the 2 exhaust pipe support rings.
(b) Support the exhaust pipe securely.
(c) Remove the 2 exhaust pipe support O–rings.
R06950
2. REMOVE BOTH STABILIZER BAR LINKS
Remove the 4 nuts and 2 stabilizer bar links.
Torque: 74 N·m (750 kgf·cm, 54 ft·lbf)
R06948
3. REMOVE BOTH STABILIZER BAR BRACKETS
Remove the 4 bolts and both stabilizer bar brackets from the
subframe.
Torque: 31 N·m (320 kgf·cm, 23 ft·lbf)
R07420
4. REMOVE BOTH CUSHIONS AND BRACKETS
Remove the cushions and brackets from the stabilizer bar.
INSTALLATION HINT: Install the cushion to the outside of the
bush stopper.
