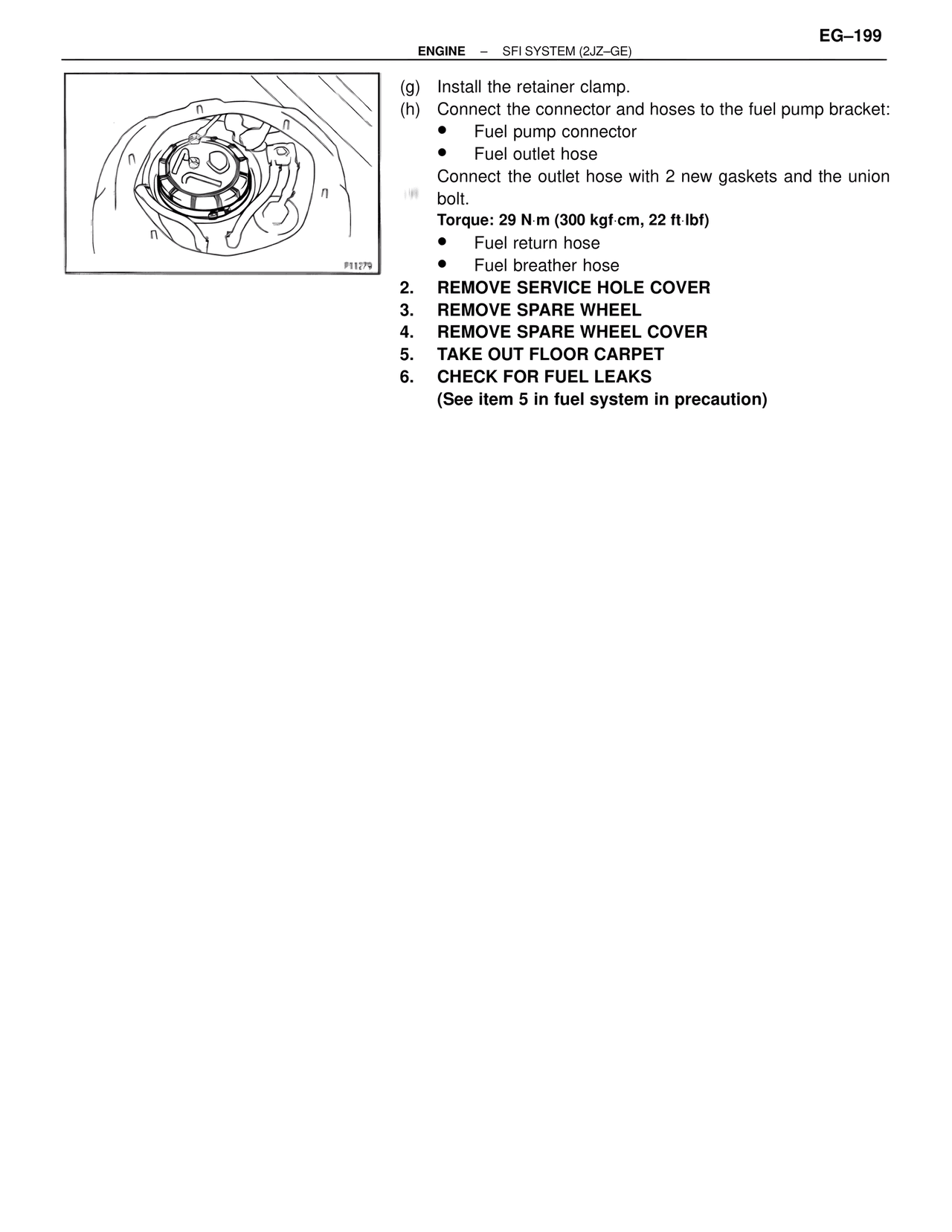

P11279 (g) Install the retainer clamp. (h) Connect the connector and hoses to the fuel pump bracket: • Fuel pump connector • Fuel outlet hose Connect the outlet hose with 2 new gaskets and the union bolt. Torque: 29 N·m (300 kgf·cm, 22 ft·lbf) • Fuel return hose • Fuel breather hose 2. REMOVE SERVICE HOLE COVER 3. REMOVE SPARE WHEEL 4. REMOVE SPARE WHEEL COVER 5. TAKE OUT FLOOR CARPET 6. CHECK FOR FUEL LEAKS (See item 5 in fuel system in precaution)
