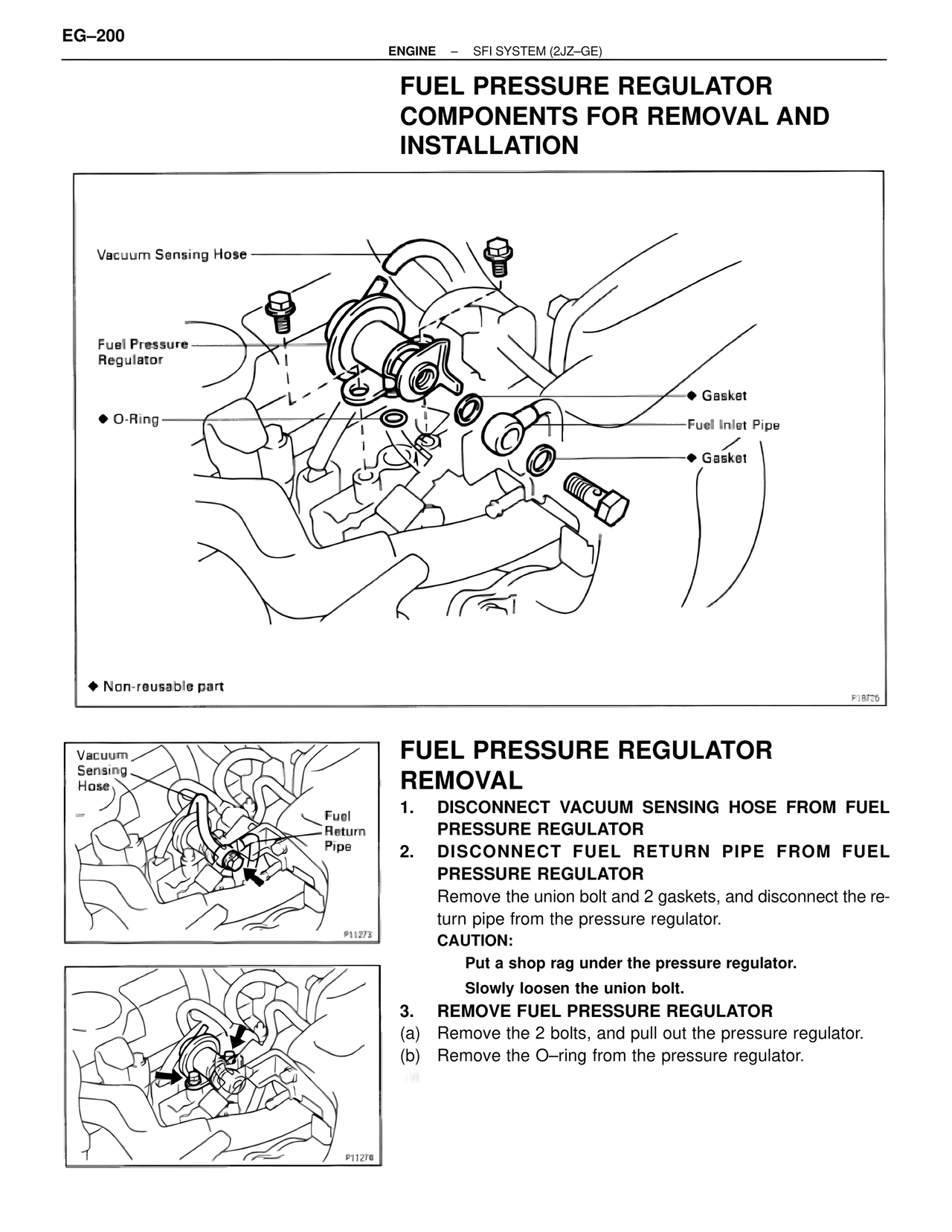

EG–200

ENGINE – SFI SYSTEM (2JZ–GE)

FUEL PRESSURE REGULATOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

Vacuum Sensing Hose

Fuel Pressure
Regulator

◆ O-Ring

Gasket

Fuel Inlet Pipe

Gasket

◆ Non-reusable part

P18726

Vacuum
Sensing
Hose

Fuel
Return
Pipe

P11273

P11276

FUEL PRESSURE REGULATOR
REMOVAL

1. DISCONNECT VACUUM SENSING HOSE FROM FUEL
PRESSURE REGULATOR

2. DISCONNECT FUEL RETURN PIPE FROM FUEL
PRESSURE REGULATOR
Remove the union bolt and 2 gaskets, and disconnect the re-
turn pipe from the pressure regulator.
CAUTION:

Put a shop rag under the pressure regulator.

Slowly loosen the union bolt.

3. REMOVE FUEL PRESSURE REGULATOR
(a) Remove the 2 bolts, and pull out the pressure regulator.
(b) Remove the O–ring from the pressure regulator.
