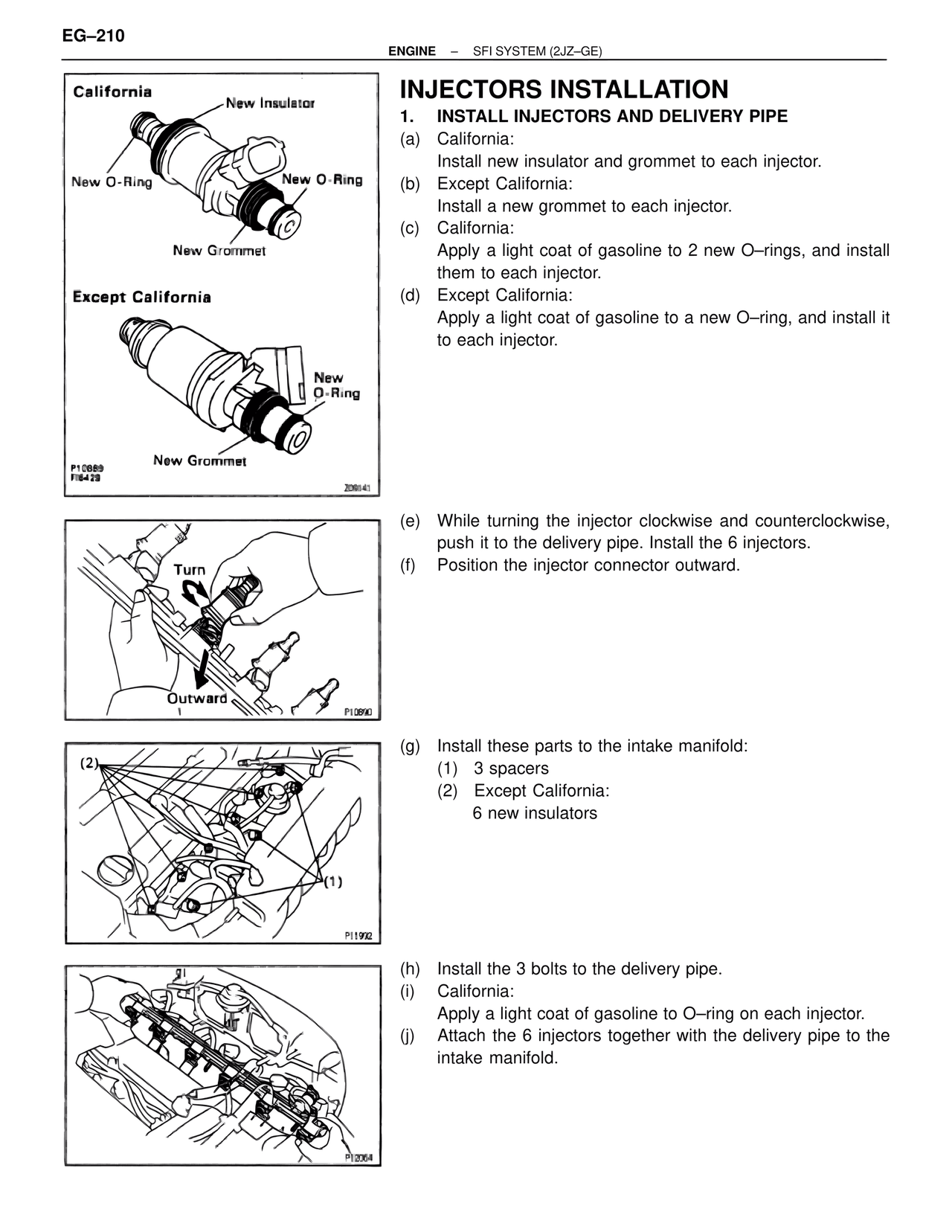

INJECTORS INSTALLATION
1. INSTALL INJECTORS AND DELIVERY PIPE
(a) California:
Install new insulator and grommet to each injector.
(b) Except California:
Install a new grommet to each injector.
(c) California:
Apply a light coat of gasoline to 2 new O–rings, and install
them to each injector.
(d) Except California:
Apply a light coat of gasoline to a new O–ring, and install it
to each injector.
Turn
Outward
P10890
(e) While turning the injector clockwise and counterclockwise,
push it to the delivery pipe. Install the 6 injectors.
(f) Position the injector connector outward.
(2)
(1)
P11992
(g) Install these parts to the intake manifold:
(1) 3 spacers
(2) Except California:
6 new insulators
P12054
(h) Install the 3 bolts to the delivery pipe.
(i) California:
Apply a light coat of gasoline to O–ring on each injector.
(j) Attach the 6 injectors together with the delivery pipe to the
intake manifold.
